Home > Products > Exploration Drilling Rig > FY200 crawler pneumatic water well drilling rig
FY200 crawler pneumatic water well drilling rig
3500 - 5000
/ Combo
1 Combo(Min.Order)
- 50 Combo / Combos per Month
- qingdao
- T/T L/C D/P D/A
- 7 days
You May Like
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Brand Name: | Huaxia Waster | Place of Origin: | China | Model Number: | FY200 |
| Type: | Core Drilling Rig | Certification: | SIO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
| Weight: | 4.6T | Power Type: | Other | Usage: | Other, 勘探、打井、取芯 |
| Condition: | New |
Product Description

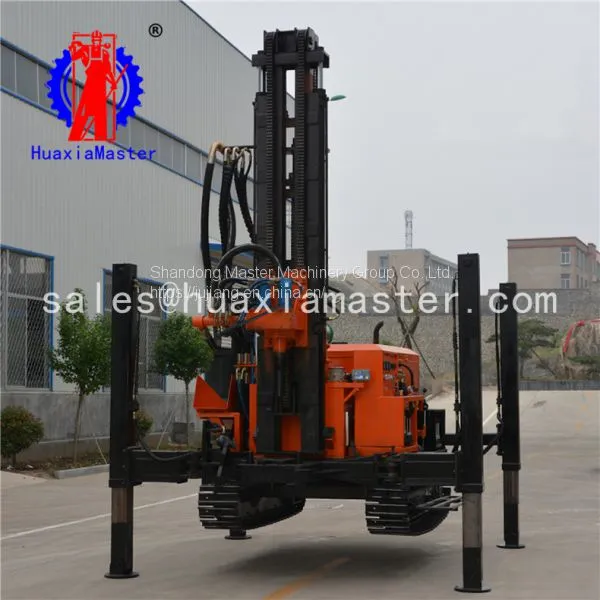

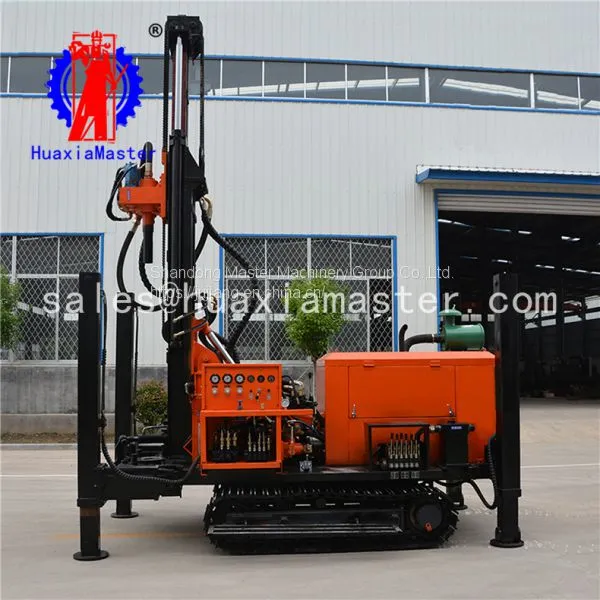

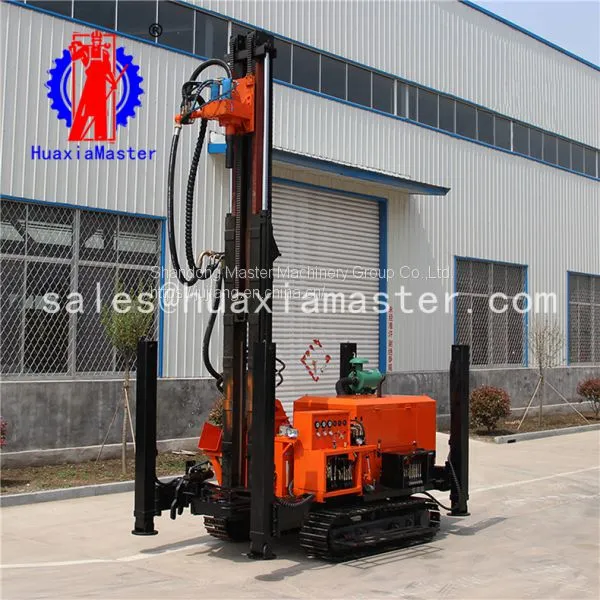

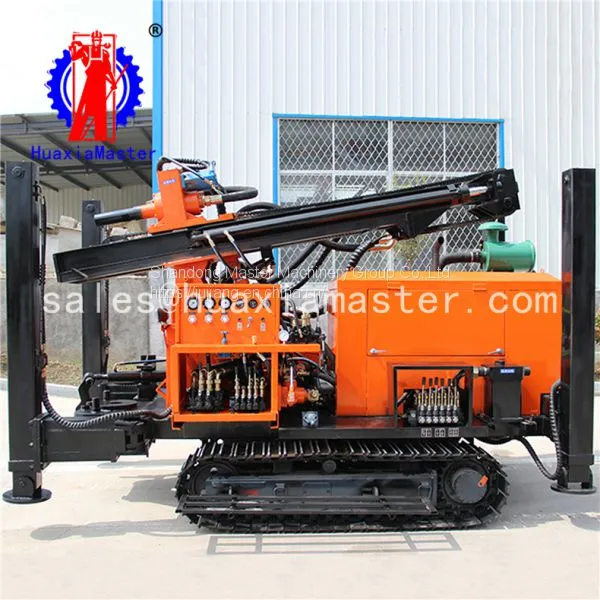

FY200 crawler pneumatic water well drilling rig
1. The applications of FY200 crawler pneumatic water well drilling rig
· civil engineering drilling
· geothermal drilling
· drilling with large diameter
· deep drilling footage
· fast, flexible and efficient.
2.The specifications of FY200 crawler pneumatic water well drilling rig
Model | FY200 | |
Gross weight | t | 4.6 |
Dimension | mm | 3800*1600*2450 |
Aperture | mm | 140-325 |
Drilling depth | m | 200 |
Feed stroke | mm | 3000 |
Travel speed | km/h | 2.5 |
Grade ability | max. | 30° |
Rising height from ground | mm | 250 |
Wind pressure | mpa | 1.7-3.0 |
Air consumption | m³/min | 17-35 |
Engine power | kw | 65 |
Rotary speed | rpm | 50-70 |
Rotation torque | n.m | 5000-6500 |
