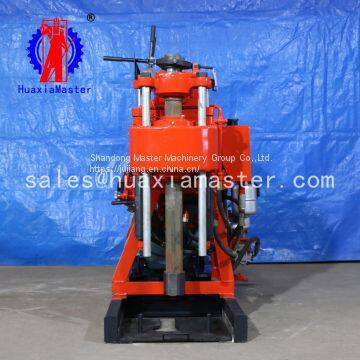

XY-200 Hydraulic Core Drilling Rig

Name: XY-200 Hydraulic Core Drilling Rig
Brand: Huaxia Waster
SKU: 160527345
Availability: InStock

US$ 3500 - 5000 MOQ: 1 Combo

Key Specifications

Brand Name:

Huaxia Waster

Place of Origin:

China

Model Number:

XY-200

Shandong Master Machinery Group Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

7 days

Brand Name Huaxia Waster

Place of Origin China

Model Number XY-200

Type Core Drilling Rig

Certification SIO9001

After-sales Service Provided Engineers available to service machinery overseas

Power Type Other

Usage Other, 打井、取芯

Condition New

1. Applications of XY-200 hydraulic core drilling rig

Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.

2. Parameters of XY-200 hydraulic core drilling rig

Maximum opening diameter	400mm
Maximum borehole depth	200m
Diameter of the end hole	75mm
Borehole dip angle	90-75°
Machine overall size	2.750.951.60m
Drill pipe diameter	50mm
Weight of drill rig diameter of drill pipe (without power)	760kg
A vertical scroll of painting
Shaft rotation speed	71/142/310/20r/min
Vertical axis stroke	450mm
Windlass
Maximum lifting weight of single rope	2008kb
Drum lifting speed	17/35/75/160 rm/s
Wire rope diameter:	13mm
Wire rope capacity	35mm
Width of sluice	70mm
Mud pump
Type: horizontal single cylinder double action	flow：180L/min
Maximum pressure	1.5mpa
Working pressure	0.7mpa
Inlet size	50mm
Outlet pipe diameter	45mm
Power
Diesel oil	22hp
Rated speed	2200r/min
Electric machinery	15kw
Rated speed	1460r/min
