Help CenterXYC-3 Vehicle-mounted Hydraulic Core Drilling Rig
Related Products
-
XY-44A Hydraulic Core Drilling RigUS$ 3500 - 5000MOQ: 1 Combo -
XYX-44A Wheeled Hydraulic Core Drilling RigUS$ 3500 - 5000MOQ: 1 Combo
-
XYD-44A Crawler Hydraulic Core Drilling RigUS$ 3500 - 5000MOQ: 1 Combo
-
XY-8 Hydraulic Core Drilling RigUS$ 3500 - 5000MOQ: 1 Combo
-
KY-150 Hydraulic Exploration Drilling Rig for Metal MineUS$ 3500 - 5000MOQ: 1 Combo
1.Features of XYC-3 vehicle-mounted hydraulic core drilling rig
XYC-3 is a vehicle-mounted hydraulic core drilling rig.The drilling rig transmission system and hoist, mud pump and other important accessories are all installed on the chassis. The layout is reasonable and compact. And the operation is simple.
The drilling rig is equipped with high pressure and large flow BW-250 pump, which ensures the drilling depth and borehole diameter.
2. Applications of XYC-3 vehicle-mounted hydraulic core drilling rig
· geological survey and exploration
· road and high-rise building foundation exploration
· all kinds of concrete structure inspection holes
· river embankments
· subgrade grouting holes
· drilling and direct grouting
· civil use water wells
· ground temperature central air conditioners
3. Parameters of XYC-3 vehicle-mounted hydraulic core drilling rig
XYC-3 vehicle-mounted hydraulic core drilling rig | ||
Drilling depth |
30-600 |
|
Drill hole diameter |
300-75 |
|
Diameter of the end hole |
75 |
|
Drill angle |
90-75 |
|
Spindle forward core speed |
30-1050 |
|
Spindle reverse core speed |
29-137 |
|
Spindle stroke |
600 |
|
Main winch lifting force |
3000 |
|
Main winch rope capacity |
65 |
|
Lifting speed |
0.3-1.9 |
|
Rope diameter |
12.5 |
|
Drill mast height |
7000 |
|
Drill effective height |
6500 |
|
Driving drilling rod |
59*53、70*63、79*89 |
|
Drilling rod diameter |
42/50/60 |
|
Weight |
3500 |
|
Engine |
Model:Yunnei YN27 |
|
|
BW-250 mud pump |
Rated flow (l/min) |
250 |
Rated power(mpa) |
7 |
|
Driving power(kw) |
15 |
|
Host weight(kg) |
500 |
|
Dimension(mm) |
1110*994*665 |
|
|
Chassis
|

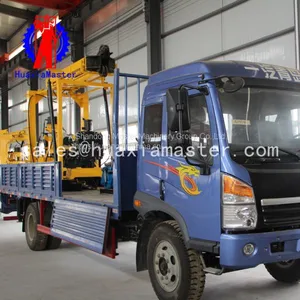

vehicle(Pictures of vehicle-mounted drilling rigs for reference only) |
|
