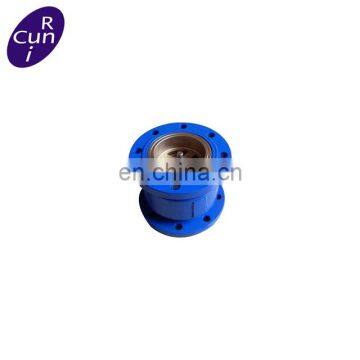

Help CenterDuctile Iron Flanged Ends Tilting Disc Check Valve With PN10 PN16
Related Products
-
3/4" 1" 1-1/4" 1-1/2" Hydraulic Flow Control Vertical Pvc Check ValveUS$ 100.00 - 15.00MOQ: 1 Piece -
5/16'' One Way Plastic Food Grade Check Valve With PP Body and EPDM DiaphragmUS$ 100 - 100MOQ: 1 Piece
-
Double Plate Wafer Type Stainless Steel Check ValveUS$ 100 - 100MOQ: 1 Piece
-
DN100 SS316 CF8M Stainless Steel Dual Plate Check ValveUS$ 100.00 - 15.00MOQ: 1 Piece
-
PN10 DN300 CF8M Stainless Steel Butterfly Valve Wafer Triple Offset Metal Seat Butterfly ValveUS$ 100 - 100MOQ: 1 Piece
| Product Name | BS1868 API 6D Carbon Stainless Steel Swing or Lift Type Cast Check Valve of RF/RTJ/BW Ends | |||
| Valve Type | Cast Check Valve | |||
| Size Range | DN50~D750, 2"~30" | |||
| Pressure Range | PN10~PN420, CLASS150~2500 | |||
| Connection End | Flanged, BW | |||
| Standard | BS1868, API 6D, API 598, MSS SP-25 | |||
| Packing Method | Standard Export worthy duly wooden boxs | |||
| Shipment Way | By Express, By Air or BySea, as customer request | |||
Construction is as follows
- Full Open, or Reduce Pore
- Piston Check
- Ball Check
- Swing Check
- Bolted Bonnet with spiral-would gasket, threaded and seal welded bonnet and threaded and pressure seal bonnet
- With or without counterweight
- Butt Weld Ends to ASME B16.25
- Flanged Ends to ASME B16.5 and B16.47 A/B
Main Part & Materials
| Part Names | Part Materials | |||||||
| Body | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Bonnet | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Disc/Ball/Wedge | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
| Stem | / | / | / | / | / | / | / | / |
|
Seat/Seat Rin |
13%Cr | SS304 | 13%Cr | SS304 | SS316 | SS304L | SS316L | C83600/C95800 |
| Packing | Graphite/PTFE | |||||||
| Gasket | SS304+Graphite/SS304+Graphite | |||||||
| Bolts/Nuts | B7/2H | L7/4 | B16/4 | B8/8 | B8M/8M | B8/8 | B8M/8M | B8M/8M |
|
Suitable Medium |
W.O.G etc. | HNO3, CH3OOH etc. | Sea Water etc. | |||||
|
Suitable Temperature |
-29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C | -196~427 °C | -196~427 °C | -29~220 °C |
More producrt>>>>
*****If you want to know more products please click on the picture above,thanks!*****
JiangSu CuiRui Metal Products Co., Ltd Is Located In Jiangsu Province Wuxi City, The Large South Stainless Steel Markets In China, Is Also One of the Powerful Company In the Stainless Steel Area With Large Scale And Long History. We Have 2000 Square Meters Of Storage And Processing Center Which Covered Equipment Using In Slitting, Cutting In horizontal, Laser Cutting , Plasma And Grinding Machine And Embossing Machine. We Mainly Sell Stainless Steel Sheet, Pipes, Coils, Bands, Section Bars, And So On Which Are Applied In Decoration, Medical Industry, Food Industry, Construction Industry etc, Besides, we also sell different kinds of valves. And Have Gained Gain Good Feedback And Establish Mutual Trust With Our Clients. According To Your Requirement We Can Process Brushed Film, 6k, 8k Mirror, Polishing, Yellow Titanium, Black Titanium, Rose Gold, No Fingerprint, And All Kinds Of Colored Stainless Steel Sheet.
1. To provide professional technical guidance and design solution
2. Strict quality control system and rich manufacturing to make sure the hign-quality products
3. Competitive costs supported by stable raw materials suppliers
4. Strong overseas sales team to assist customers to develop sales strategy
5. Fast, efficient and professional online service, like email, skype, whatsapp tools
6. OEM/ODM services
7. Any kind of logo printing or design are available
8. Our company was awarded with ISO 9001, certificate and CE for our valve, pipe fitting and flange products
*************************************************************************************************************************************
1. Q: Is sample order acceptable?
A: Yes
2. After-sales service
1 year warranty for all kinds of products
As an experienced manufacturer, you can rest assured of the quality and sales service
3. Payment
T/T, Paypal, L/C
4.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea
5. Do you provide free sample?
Usually we do not offer free sample
6. Could you print our company LOGO on the nameplate and package?
Yes, we can do that
7. Do you accept custom design on size?
Yes, if the size is reasonable
Thanks for your valued time with interest!
