In Stock ! 12m s275 beams mill test certificate of q345b h beam

  In Stock ! 12m s275 beams mill test certificate of q345b h beam

JIS standard and GB standard 100x50-900x300mm h beam

SPECIFICATION: SS400 Q235 Q345 ASTM A36 A572 EN S235 S275 S355

We have more competitive price,and full size stock of H beam

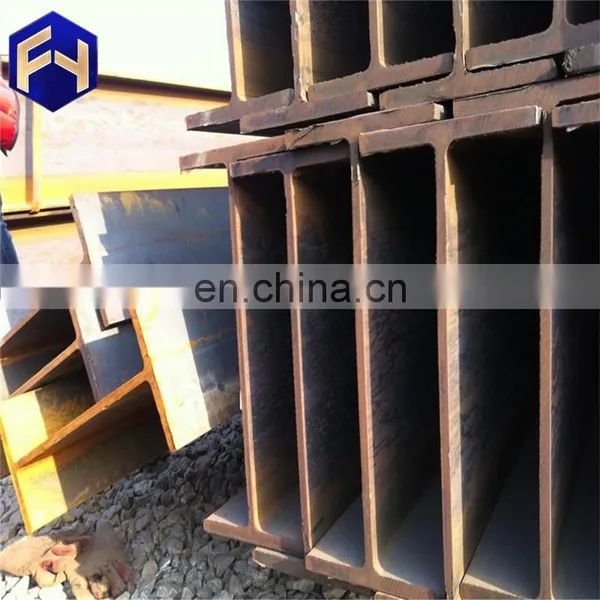

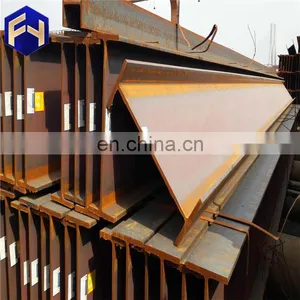

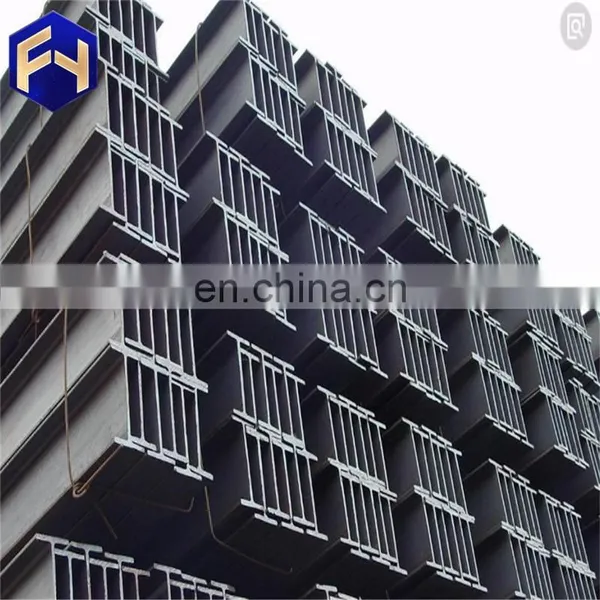

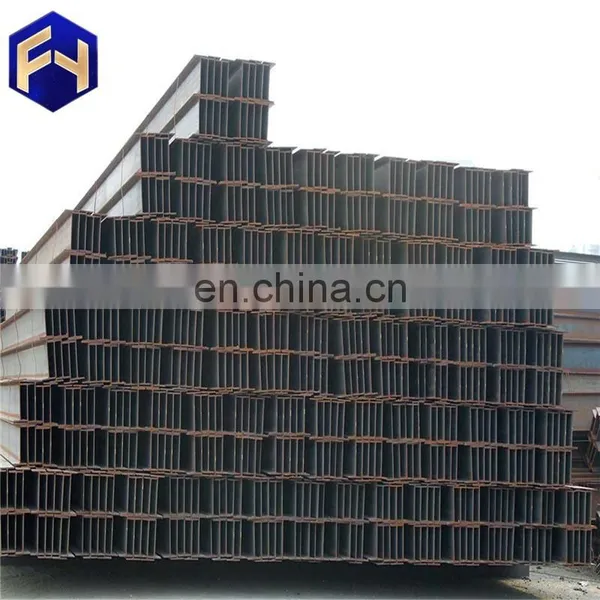

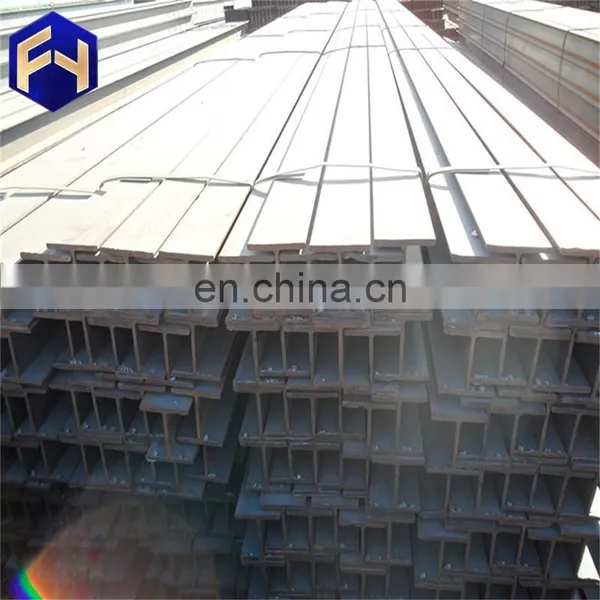

H-Bar is another product coming out from our hot rolled mill.It is the structural steel profile shaped like an H in section. H-beam is produced with economically reasonable cross-sectional shape and goof mechanical properties.Compared with I beam, H bar with advantages of larger section modulus, lighter weight and saving materical, it can reduce 30-40% of the building structure weight

1.Steel grade:Q235,Q345,SS400,S235JR, S345JR,St37-2,St52
2.Standard:JIS,GB/T11263-1998, GB/T11263-2005
3.Size:100*50-900*300

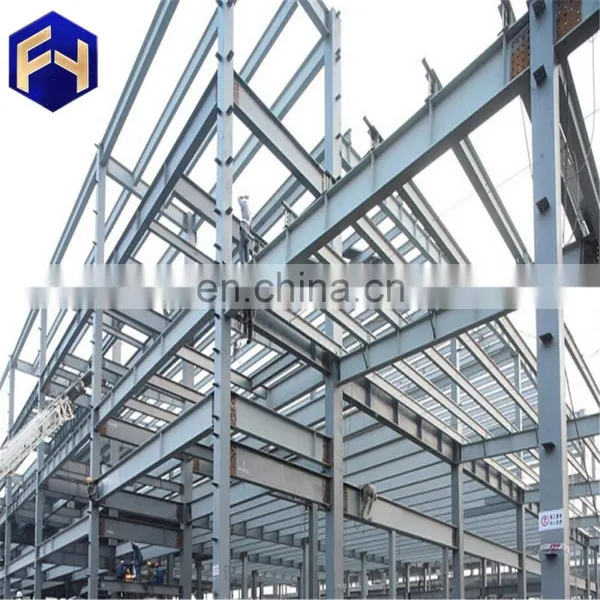

4.Application: used for machinery, procesing, structure building, automobile manufacturing, shipbuilding, electric power

 In Stock ! 12m s275 beams mill test certificate of q345b h beam

H Beams Sizes

100x50x5x7mm 9.54kgs/m, 100x100x6x8mm 17.2kgs/m, 120x60x6x8mm 13.3kgs/m,

125x125x6.5x9mm 23.8kgs/m,148x100x6x9mm 21.4kgs/m,150x75x5x7mm 14.3kgs/m,

150x100x6x9mm 21.4kgs/m,150x150x7x10mm 31.9kgs/m,175x90x5x8mm,18.2kgs/m,

175x175x7.5x11mm 40.4kgs/m,198x99x4.5x7mm 18.5kgs/m,200x100x5.5x8mm 21.7kgs/m

248x124x5x8mm 25.8kgs/m,200x150x6x9mm,31.2kgs/m,200x200x8x12mm,50.5kgs/m,

200x204x12x12mm 56.7kgs/m,248x124x5x8mm 25.8kgs/m,250x125x6x9mm 29.7kgs/m

244x175x7x11mm 44.1kgs/m,250x250x9x14mm 72.4kgs/m,250x255x14x14mm 82.2kgs/m,

298x149x5.5x8mm 32.6kgs/m,300x150x6.5x9mm 37.3kgs/m,294x200x8x12mm 57.3kgs/m

294x302x12x12mm 85kgs/m,300x300x10x15mm 94.5kgs/m,300x305x15x15mm 106kgs/m,

346x174x6x9mm 41.8kgs/m,350x175x7x11mm 50kgs/m,350x250x9x14mm 79.7kgs/m

344x348x10x16mm 115kgs/m,350x350x12x19mm 137kgs/m,400x150x8x13mm 55.8kgs/m

396x199x7x11mm 56.7kgs/m,400x200x8x13mm 66kgs/m,390x300x10x16mm 107kgs/m

388x402x15x15mm 141kgs/m,394x398x11x18mm 147kgs/m,400x400x13x21mm 172kgs/m,

400x408x21x21mm 197kgs/m,414x405x18x28mm 233kgs/m,428x407x20x35mm 284kgs/m

450x150x9x14mm 65.5kgs/m,446x199x8x12mm 66.7kgs/m,450x200x9x14mm 76.5kgs/m

450x300x11x18mm 124kgs/m,500x150x10x16mm 77.1kgs/m,496x199x9x14mm 79.5kgs/m,

500x200x10x16mm 89.6kgs/m,506x201x11x19mm 103kgs/m,482x300x11x15mm 115kgs/m

488x300x11x18mm 129kgs/m,596x199x10x15mm 95.1kgs/m,600x200x11x17mm 106kgs/m

606x201x12x20mm 120kgs/m,582x300x12x17mm 137kgs/m,588x300x12x20mm 151kgs/m,

594x302x14x23 175kgs/m,692x300x13x20mm 166kgs/m,700x300x13x24mm 185kgs/m,

800x300x14x26mm 210kgs/m,900x300x16x28mm 243kgs/m

   In Stock ! 12m s275 beams mill test certificate of q345b h beam

Transports------Containler sizes:

20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)

40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)

40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

20feet container load 25tons pipe whose length is under 5.8m

40feet container load 25tons pipe whose length is under 11.8m

* You are promised to obtain the best quality, price and service.

* Welcome to contact us with your detail inquiry, you will be replied within 24 hours

Bella

Suppliers & Manufacturer

Skype:tjaxtdc

Wechat:18722321842

Mob/Whatsapp/viber:+86-18722321842

TIANJIN FANGYA INTERNATIONAL CO.,LTD

TJ AIER INTERNATIONAL INDUSTRIAL LTD
