Stainless Steel Integrated Type Waterproof Cable Gland

Stainless Steel Integrated Type Waterproof Cable Gland thumbnail-1
Stainless Steel Integrated Type Waterproof Cable Gland thumbnail-2
Stainless Steel Integrated Type Waterproof Cable Gland thumbnail-3
Stainless Steel Integrated Type Waterproof Cable Gland thumbnail-4
Stainless Steel Integrated Type Waterproof Cable Gland thumbnail-5
Stainless Steel Integrated Type Waterproof Cable Gland photo-1
Stainless Steel Integrated Type Waterproof Cable Gland photo-2
Stainless Steel Integrated Type Waterproof Cable Gland photo-3
Stainless Steel Integrated Type Waterproof Cable Gland photo-4
Stainless Steel Integrated Type Waterproof Cable Gland photo-5
Negotiable MOQ: 100 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2016
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Contact Supplier Request Quote Chat Now
Jiaxing Washeen Electric Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

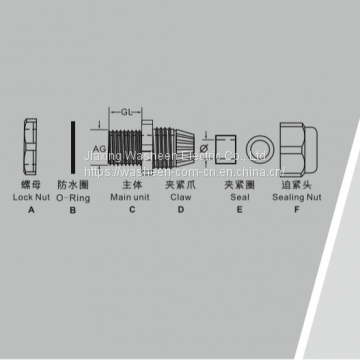

Product material: PartA, C andFare 304StainlessSteel material;PartBandEare Chemigum material ,and part D is white polyamide material.

Specification of thread: Metric

Working temperature: -40 ~ +110 , instantaneously can be 120 .

Color:Part A, C and F are Metallic yellow, Part B and E are black, Part D is white.

Protection classification: IP68

Property: With design of clamping claw and sealing ,easy & fast assembled by sealing nut ,  have big cable clamping range, with high tensile strength, waterproof, dustproof, salt proof,  acid and alkali resistant, corrosion, alcohol, oil & grease resistan





metric thread (M)

order

metric thread

range of bayonet(mm)

AG outer diameter(mm)

GL(mm)

packaging unit （units/pack）(个/包)

WAS-SSGL-M12

M12X1.5

3-6

12

6

50

WAS-SSGL-M14

M14X1.5

3-6

14

6

50

WAS-SSGL-M16

M16X1.5

4-8

16

7

50

WAS-SSGL-M18

M18X1.5

6-10

18

8

50

WAS-SSGL-M20

M20X1.5

6-12

20

8

50

WAS-SSGL-M22

M22X1.5

10-14

22

9

50

WAS-SSGL-M24

M24X1.5

10-14

24

10

25

WAS-SSGL-M25

M25X1.5

10-14

25

10

25

WAS-SSGL-M27

M27X2.0

13-18

27

11

25

WAS-SSGL-M30

M30X2.0

13-18

30

11

25

WAS-SSGL-M32

M32X1.5

15-22

32

11

25

WAS-SSGL-M33

M33X2.0

15-22

33

11

20

WAS-SSGL-M36

M36X2.0

18-25

36

11

20

WAS-SSGL-M40

M40X1.5

18-25

40

11

20

WAS-SSGL-M42

M42X2.0

22-28

42

12

20

WAS-SSGL-M48

M48X2.0

25-32

48

13

10

WAS-SSGL-M50

M50X1.5

25-32

50

13

10

WAS-SSGL-M54

M54X2.0

32-38

54

14

10

WAS-SSGL-M56

M56X2.0

32-38

56

14

10

WAS-SSGL-M60

M60X2.0

37-44

60

14

10

WAS-SSGL-M63

M63X1.5

37-44

63

14

10

WAS-SSGL-M64

M64X2.0

37-44

64

14

10

WAS-SSGL-M72

M72X2.0

42-52

72

15

5

WAS-SSGL-M80

M80X2.0

50-60

80

18

5

WAS-SSGL-M85

M85X3.0

59-72

85

20

5

WAS-SSGL-M100

M100X2.0

71-82

100

22

5

PG thread (PG)

order

PG thread

range of bayonet(mm)

AG outer diameter(mm)

GL(mm)

packaging unit （units/pack）(个/包)

WAS-SSGL-PG7

PG7

3-6

12.5

8

100

WAS-SSGL-PG9

PG9

4-8

15.2

8

100

WAS-SSGL-PG11

PG11

5-10

18.6

8

50

WAS-SSGL-PG13.5

PG13.5

8-12

20.4

9

50

WAS-SSGL-PG16

PG16

10-14

22.5

10

50

WAS-SSGL-PG21

PG21

13-18

28.3

11

50

WAS-SSGL-PG29

PG29

18-25

37.0

11

20

WAS-SSGL-PG36

PG36

25-32

47.0

13

10

WAS-SSGL-PG42

PG42

32-38

54.0

13

10

WAS-SSGL-PG48

PG48

37-44

59.3

14

10

G thread (G)

order

G thread

range of bayonet(mm)

AG outer diameter(mm)

GL(mm)

packaging unit （units/pack）(个/包)

WAS-SSGL-G1/4

G1/4

3-6

13.2

6

100

WAS-SSGL-G3/8

G3/8

4-8

16.6

7

50

WAS-SSGL-G1/2

G1/2

8-12

20.4

8

50

WAS-SSGL-G3/4

G3/4

13-18

26.6

11

50

WAS-SSGL-G1

G1

15-22

33.4

11

50

WAS-SSGL-G1-1/4

G1-1/4

22-28

41.5

12

10

WAS-SSGL-G1-1/2

G1-1/2

25-32

47.0

13

10

WAS-SSGL-G2

G2

37-44

60.0

14

5
