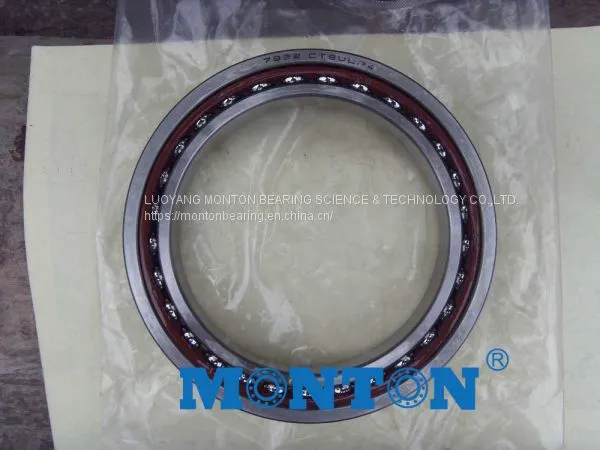

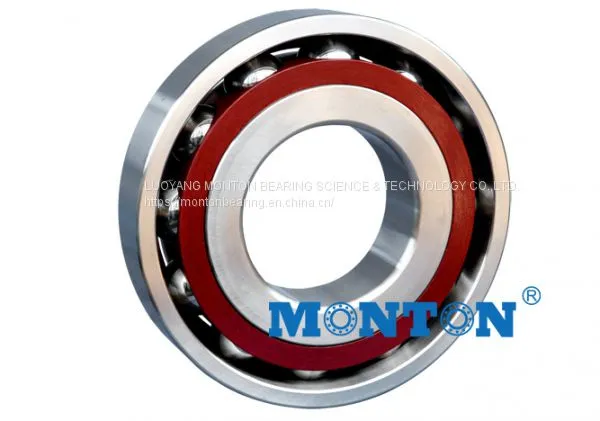

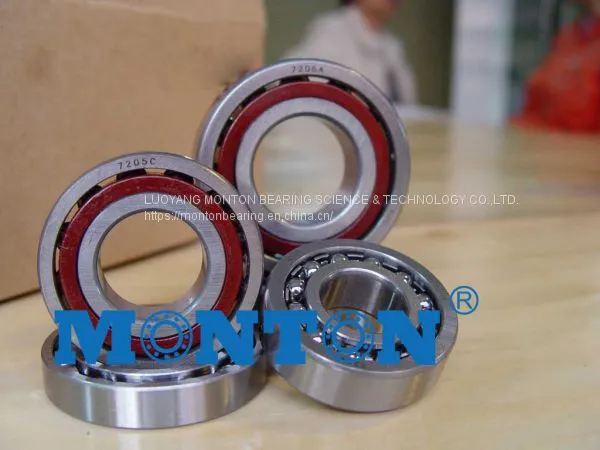

Nylon Cage 7309becbp Angular Contact Ball Bearing

Nylon Cage 7309becbp Angular Contact Ball Bearing thumbnail-1
Nylon Cage 7309becbp Angular Contact Ball Bearing photo-1
US$ 100 - 1000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MONTON
Place of Origin:
China
Model Number:
7309becbp
Contact Supplier Request Quote Chat Now
Luoyang Monton Bearing Science & Technology Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MONTON
Place of Origin China
Model Number 7309becbp
Number of Row Single Row
Seals Type seals
Precision Rating P4
Outside Diameter 10, 1000
Bore Size 10, 1000

Introduction of  angular contact ball bearing

Angular contact ball bearings are able to support radial load and axial load. As single row angular contact ball bearings can only support axial load in single direction, matched bearing mounting is often adopted to them as matched parts of bearings, preload for them is more convenient.
Retainers are made of brass, synthetic resins or others subject to individual bearing features and application conditions.


Angular contact ball bearing type:

Single row angular contact ball bearing: only carry a direction of the axial load, when in bear radial load, can cause additional axial force must be applied to the corresponding reverse load, therefore, the bearings are generally used in pairs.

Double row angular contact ball bearing: At the same time can bear radial and axial load joint load, limit shaft on both sides of the axial displacement.

Angular contact ball bearing main technical indicators:

(1) Bearing precision index: More than GB / 307.1-94 P4 level accuracy

(2) High-speed performance index: 1.3~1.8x 106 /min

(3)Service life:more than 1500h

Feature:
1) Load capacities are higher than deep groove ball bearings of same dimensions
2) Used for bearing radial-axial combined loads or pure thrust loads
3) Low operating friction and high limiting speed

Type:
1). Single row angular contact ball bearings
2). Double row angular contact ball bearings
3). Four-point contact ball bearings

Mounting
/DB: Mount in duplex, back to back
/DF: Mount in duplex, face to face
/DT: Mount in duplex, tandem

Tolerance & Precision.
Accuracy from low to high is expressed as P0 ( general ), P6 (P6X), P5, P4, P2

The main application:

Single row angular contact ball bearings:

machine tool spindles, high frequency motors, gas turbines , centrifuges, small car front wheel , differential pinion shaft , booster pumps, drilling platforms, food machinery, dividing head, fill welding , low-noise cooling tower , electrical and mechanical equipment, painting equipment , machine slot board , arc welding machine



Double row angular contact ball bearings:

pump, blower , air compressor , various types of transmission , fuel injection pump , printing machinery , planetary reducer, extraction equipment , cycloid reducer , food packaging machinery , welding machines, electric irons, square box , gravity gun , wire strippers , axle, test analysis equipment , chemical machinery

Definition of suffix


Suffix Description Design
B Modified internal construction Standard
JP Sheet steel cage
MP Solid brass cage
DB Two angular contact ball bearings in O arrangement, matched clearance-free Special design, available by agreement
DF Two angular contact ball bearings in X arrangement, matched clearance-free
DT Two angular contact ball bearings in tandem arrangement, matched
TVH
TVP		 Solid cage made from glass fibre reinforced polyamide Standard
UA Universal design for fitting in pairs, bearing pair has small axial internal clearance in O and X arrangement
UL Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangement
UO Universal design for fitting in pairs, bearing pair is clearance-free in O and X arrangement
P5 Bearing in tolerance class P5 Special design, available by agreement
2RS Contact seals on both sides Standard

Products specification

Model Number 7309BECBP
Brand Name Monton
Dimension 45X100X25MM
Weight 0.89KG
Type Angular contact ball bearing
cage Type brass cage/steel cage
Material Chrome Steel ,Carbon Steel, Stainless Steel
Clearance C0,C2,C3,C4,C5
Vibration  Z1V1,Z2V2 and Z3V3
Precision Level P0,P6,P5,P4,P2(ABEC1, ABEC3, ABEC5, ABEC7, ABEC9)
Number of Row Single Row
Guarantee One year.
Certifications ISO 9001:2008
Package Box, Carton, Wooden Case, Plastic Tube or Per buyers requierment .
Place of Origin China (Mainland)
MOQ 5PCS
Service (1) Prompt Delivery
(2) OEM
(3) Buyer Label accepted
(4) Follow up and maintainance
Payment Term  TT or L/C or Western Union
Port Shanghai/Shenzhen

Related model

Model Old Model Dimesion(mm) Weight


d D T
7000AC 46100 10 26 8 0.02
7001AC 46101 12 28 8 0.02
7002AC 46102 15 32 8 0.03
7003AC 46103 17 35 10 0.03
7004AC 46104 20 42 10 0.07
7005AC 46105 25 47 12 0.08
7006AC 46106 30 55 13 0.12
7007AC 46107 35 62 14 0.14
7008AC 46108 40 68 15 0.21
7016ACM 46116H 80 125 22 0.9
7017AC 46117 85 130 22 0.95
7017ACM 46117H 85 130 22 0.95
7018AC 46118 90 140 24 0.96
7018ACM 46118H 90 140 24 0.96
7019AC 46119 95 145 24 1.2
7019ACM 46119H 95 145 24 1.2
7020AC 46120 100 150 24 1.25
7020ACM 46120H 100 150 24 1.25
7021ACM 46121H 105 160 26 1.61
7022ACM 46122H 110 170 28 2.44
7024ACM 46124H 120 180 28 2.62
7026ACM 46126H 130 200 33 3.912
7028ACM 46128H 140 210 33 4.2
7030ACM 46130H 150 225 35 5
7032ACM 46132H 160 240 38 5.02
7034ACM 46134H 170 260 42 8.3
7038ACM 46138H 190 290 46 11.2
7040ACM 46140H 200 310 51 14.3
7044ACM 46144H 220 340 56 18.5
7217ACM 46217H 85 150 28 1.88
7222ACM 46222H 110 200 38 4.81
7224ACM 46224H 120 215 40 5.6
7226ACM 46226H 130 230 40 7.3
7228ACM 46228H 140 250 42 7.76
7302AC 46302 15 42 13 0.094
7303AC 46303 17 47 14 0.12
7304AC 46304 20 52 15 0.146
7305AC 46305 25 62 17 0.23
7306AC 46306 30 72 19 0.35
7307AC 46307 35 80 21 0.47
7307ACM 46307H 35 80 21 0.47
7308AC 46308 40 90 23 0.69
7308ACM 46308H 40 90 23 0.69
7309AC 46309 45 100 25 0.89
7309ACM 46309H 45 100 25 0.89
7310AC 46310 50 110 27 1.08
7310ACM 46310H 50 110 27 1.08
7311AC 46311 55 120 29 1.39
7311ACM 46311H 55 120 29 1.39
7312AC 46312 60 130 31 1.71
7312ACM 46312H 60 130 31 1.71
7313AC 46313 65 140 33 2.09
7313ACM 46313H 65 140 33 2.09
7314AC 46314 70 150 35 2.67
7314ACM 46314H 70 150 35 2.67
7315AC 46315 75 160 37 3.1
7315ACM 46315H 75 160 37 3.1
7316AC 46316 80 170 39 3.97
7316ACM 46316H 80 170 39 3.97
7317AC 46317 85 180 41 4.84
7317ACM 46317H 85 180 41 4.84
7318AC 46318 90 190 43 5
7318ACM 46318H 90 190 43 5
7319ACM 46319H 95 200 45 5.7
7320ACM 46320H 100 215 47 7.53
7321ACM 46321H 105 225 49 8.62
7322ACM 46322H 110 240 50 11.3
7324ACM 46324H 120 260 55 15.6
7326ACM 46326H 130 280 58 17.3
7328ACM 46328H 140 300 62 22.4
7328BM 66328H 140 300 62 22.4
7330ACM 46330H 150 320 65 26
7332BM 66332H 160 340 68 30.2
7334BM 66334H 170 360 72 35.6
7336BM 66336H 180 380 75 41.3
7344BM 66344H 220 460 88 70
7406AC 46406 30 90 23 0.77
7406ACM 46406H 30 90 23 0.77
7408ACM 46408H 40 110 27 1.41
7409ACM 46409H 45 120 29 1.77
7410ACM 46410H 50 130 31 2.1
7412ACM 46412H 60 150 35 2.8
7413ACM 46413H 65 170 40 3.85
7414ACM 46414H 70 180 42 5.9
7416ACM 46416H 80 200 48 7
7418ACM 46418H 90 225 54 10




Product Tags: 7309becbp , Precision Angular Contact ball bearings , 7309ACP4/DBB
