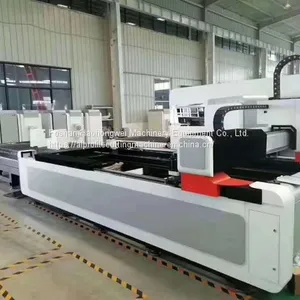

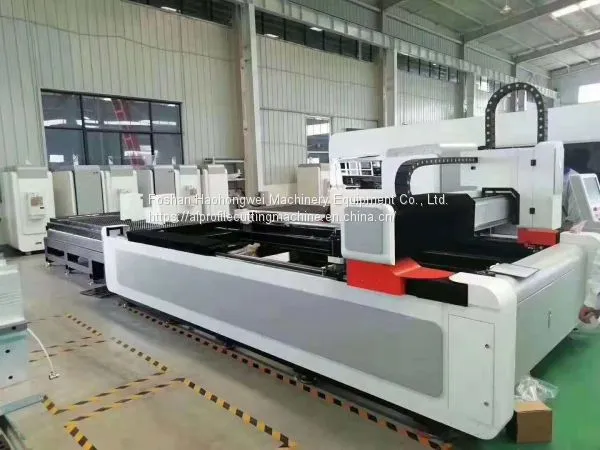

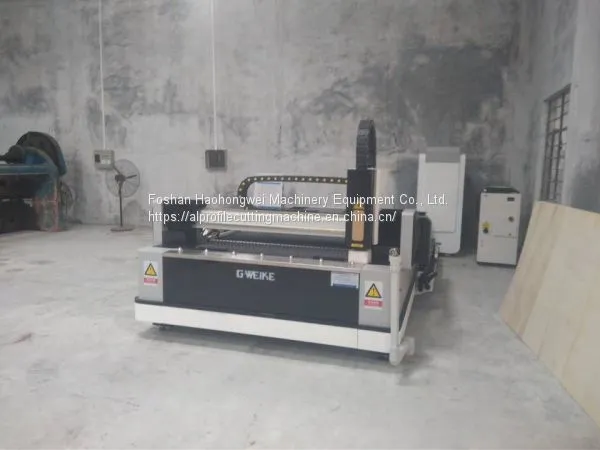

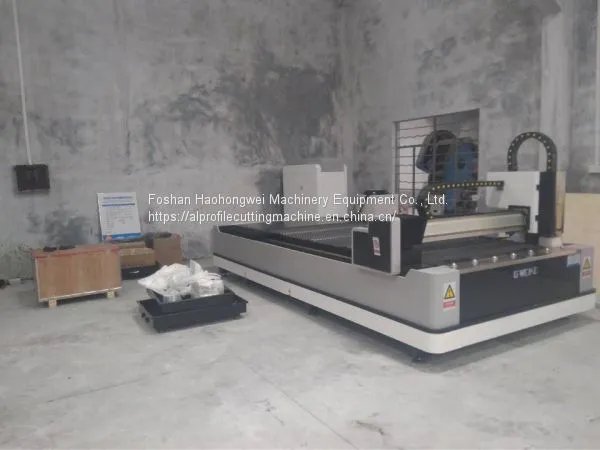

Long Time Lifetime 1300*2500mm Size Co2 Cnc Laser Cutting Machine Price
US$ 75800 - 75870
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
LF3015LN
Certification:
CCC, CE, ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Port of China
Delivery Detail:
15 days
Related Products
-
Raycus IPG 500W 750W 1000W 1500W 2000W CNC Metal Fiber Laser Cutting MachineUS$ 75800 - 75870MOQ: 1 Set -
High Quality Steel Metal Cnc Laser Cutting Machinery With High Power Servo MotorUS$ 75800 - 75870MOQ: 1 Set
-
300w 750w 1000w Steel Tube Pipe Fiber Cnc Laser Cutting MachineUS$ 75800 - 75870MOQ: 1 Set
-
SUDA FC1325-500W OPTICAL FIBER LASER MACHINERY FOR PLATE METAL CUTTINGUS$ 75800 - 75870MOQ: 1 Set
-
Modern Designed LC1325D CNC Metal Laser Cutting MachineUS$ 75800 - 75870MOQ: 1 Set
Place of Origin
China
Model Number
LF3015LN
Certification
CCC, CE, ISO
After-sales Service Provided
No overseas service provided
Condition
New
Graphic Format Supported
AI, BMP, DST, DWG
Control Software
Cypcut
Cooling Mode
Water Cooling
CNC or Not
Yes
Cutting Speed
40m/min
Cutting Area
3000*1500mm
Cutting Thickness
0-20mm
Laser Type
Fiber Laser
Parameter：
| Maximum processing range | 1500×3000mm |
| X-axis travel | 1500mm |
| Y-axis travel | 3000mm |
| Z-axis travel | 100mm |
| X/Y axis positioning accuracy | ±0.03mm |
| X/Y axis repeat positioning accuracy | ±0.02mm |
| X/Y axis maximum moving speed | 80m/min |
| Maximum acceleration | 1G |
| transfer method | Double drive rack drive |
| Working platform maximum load | 700KG |
| guide | Shangyin, PMI, THK |
| X-axis guide width | 20MM |
| Y-axis guide width | 30MM |
| rack | Taiwan APEX |
| Reducer | Moldoli, France |
| Screw | TBI |
| beam | Aviation aluminum |
| Control System | Bochu |
| Electrical parts | Schneider, Delixi |
| Pneumatic part | SMC, Yadeke |
| Lubrication method | Automatic oiling |
| Bearing | NSK |
| server system | Yaskawa |
| Dimensions (length * width * height) | 4450*4197*1860 |
| Total Weight | 2400kg |
Product Instructions：
1. High performance fiber transmission can make sure the same quality cutting effect in every point of the material.
2. High efficiency fast cutting speed photoelectric conversion rate about 35%.
3. Low gas consumption.it has the cutting technology specially for steel board and produce no gas when cutting.
4. Low power consumption environment -friendly and energy –saving reduce 20%-30% power compared with co2 cutting machine.
5. Maintenance-free fiber transmission without reflection lens can save time in light path adjustment.
6. fiber exerts its features better in thin metal sheet cutting.
