22kgs Steel Rail for Narrow Gauge Electric Locomotives

Jikuang Mining Supplies Co., Ltd.
22kgs Steel Rail for Narrow Gauge Electric Locomotives thumbnail-1
22kgs Steel Rail for Narrow Gauge Electric Locomotives thumbnail-2
22kgs Steel Rail for Narrow Gauge Electric Locomotives thumbnail-3
22kgs Steel Rail for Narrow Gauge Electric Locomotives thumbnail-4
22kgs Steel Rail for Narrow Gauge Electric Locomotives photo-1
22kgs Steel Rail for Narrow Gauge Electric Locomotives photo-2
22kgs Steel Rail for Narrow Gauge Electric Locomotives photo-3
22kgs Steel Rail for Narrow Gauge Electric Locomotives photo-4
US$ 499 - 599 MOQ: 25 Metric Tons
Key Specifications
Get Latest Price
Brand Name:
Tangsteel
Place of Origin:
Hebei, China
Model Number:
22kg steel light rail
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY PORT IN CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Tangsteel
Place of Origin Hebei, China
Model Number 22kg steel light rail
Length 4-12m
Type Light Rail
Weight 22.30kg/m
Application Railway Rail
Standard GB
Grade Q235/55Q
Secondary Or Not Non-secondary

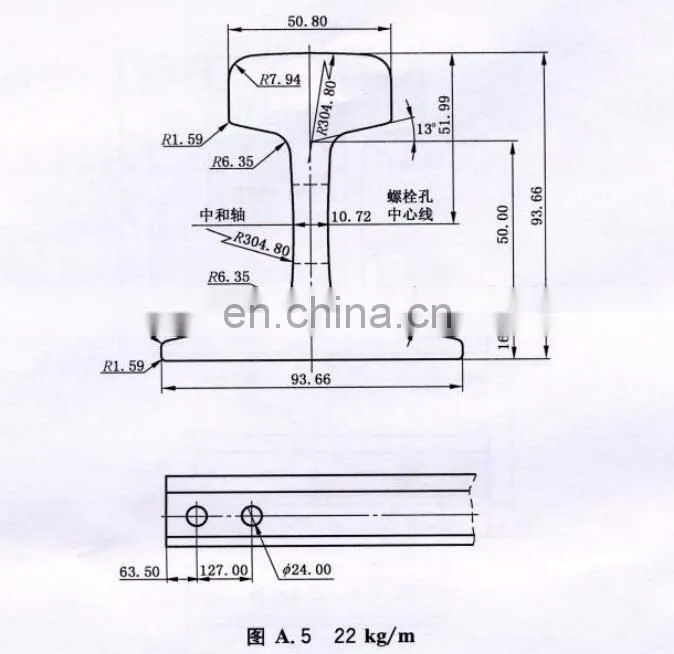

Bolt Hole Diameter 24mm
Head Width 50.80mm
Web Thickness 10.72mm
Bottom Width 93.66mm
Rail Heigth 93.66mm
Product Description

Hot rolled 55Q/Q235 steel light rail



22kgs steel rail for narrow gauge electric locomotives





Name of

Commodity

Specificaton

Materials

Standard

of Products

Theory

Weight

Length of

Dimension

(m)







Steel Light Rail







9kg/m

Q235/55Q

GB/T 11264-2012

8.94kg/m







4-12







12kg/m

Q235/55Q

GB/T 11264-2012

12.20kg/m

15kg/m

Q235/55Q

GB/T 11264-2012

15.20kg/m

18kg/m

Q235/55Q

GB/T 11264-2012

18.06kg/m

22kg/m

Q235/55Q

GB/T 11264-2012

22.30kg/m

24kg/m

Q235/55Q

GB/T 11264-2012

24.46kg/m

30kg/m

Q235/55Q

GB/T 11264-2012

30.10kg/m

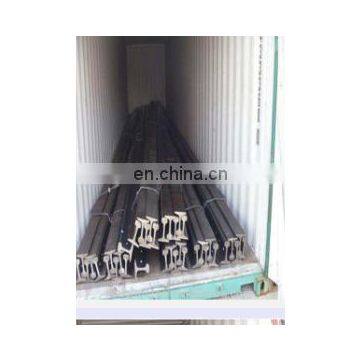

Packaging & Shipping

 22kgs steel rail for narrow gauge electric locomotives22kgs steel rail for narrow gauge electric locomotives22kgs steel rail for narrow gauge electric locomotives22kgs steel rail for narrow gauge electric locomotives22kgs steel rail for narrow gauge electric locomotives22kgs steel rail for narrow gauge electric locomotives22kgs steel rail for narrow gauge electric locomotives22kgs steel rail for narrow gauge electric locomotives22kgs steel rail for narrow gauge electric locomotives





Delivery Time

  15-30 days to the loading port after getting your deposit or L/C at sight.





Company Information



       Our company, Jikuang steel, which is a manufacturing and trading combination company, has established a long-term strategic partnership with Tangshan Steel Group, Beijing Capital Steel Group, Tianjin Western Steel group, Xuanhua Steel Group, Handan Steel group, Wuhan Steel Group and many other large state-owned steel groups.



        We mainly export construction steel products and mining steel products to the global market:

Hot rolled and cold rolled steel plate/coil

Section steel for construction or mining:H beam, I beam, Angle steel, Channel steel, flat bar, light rails

GI/PPGI/PPCR/Roofing sheet
Steel pipes(Round pipe and square pipe)
Steel billet/ Wire rod/ Deformed steel bar
