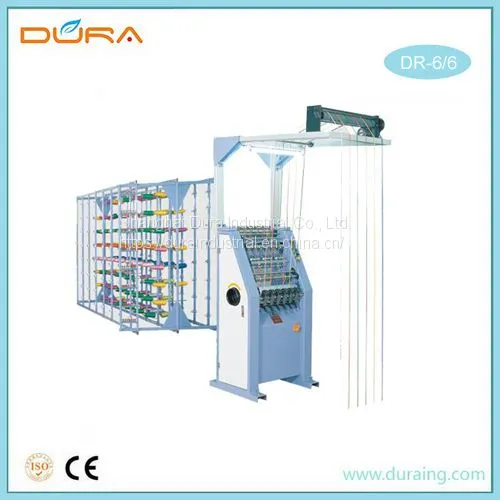

Our handle handle cord knitting machine mainly used to produce clothing accessories, mobile phone tape, hook tape, handbag handle cord and the other cord etc.
Advantages:
1.Due to elaborate design and improvement, this series have simple and reasonable structure.
2.Uses special steel to have precision veracity, convenient operation and hard-wearing.
3.Uses porous belt drive to control weft needle movement, so the machine runs stable and noiseless, faster.
4.Auto yarn-cutting device to ensure high quality of products.
5.Auto regulating device on discharging belt to make it easier for operator to examine the finished products.
Characters:
Thickness can be adjusted easily, simple to change tape type and material. Multiple colors can be manufactured at the same time. The finished products are aesthetically pleasing and comfortable to hold.
Standard accessories kit and complete after-sale service.
Specification:
| Model | Needle Pipe | Needle no | Braiding Dia Range | Revolution Speed (RPM) |
| 4/8 | 3 | 4 | ￠1-￠1.5 | 1000 |
| 4/12 | 4.3 | ￠1-￠3.5 | 1000 | |
| 6/8 | 4 | 6 | ￠1-￠4.5 | 800 |
| 6/6 | 6 | ￠3-￠6.5 | 800 | |
| 6/12 | 6 | ￠4.5-￠6.5 | 800 | |
| 8/6 | 4 | 8 | ￠3.5-￠6.5 | 800 |
| 8/6 | 6 | ￠3.5-￠6.5 | 800 | |
| 8/6 | 8 | ￠3.5-￠6.5 | 800 | |
| 8/6 | 10 | ￠3.5-￠6.5 | 800 | |
| 12/4 | 8 | 12 | ￠8-￠10.5 | 500 |
| 12/4 | 10 | ￠8-￠10.5 | 500 | |
| 12/4 | 14 | ￠8-￠10.5 | 500 | |
| 12/6 | 6 | 12 | ￠3-￠7.5 | |
| Motor | 1 HP | |||
| Machine Size(mm) | 1100*900*1600 | |||
| Net Weight(KGS) | 600 | |||
| Gross Weight(KGS) | 630 | |||
Quality Control: All the machines will be inspected carefully before delivery.
Oversea service: We have agent in different countries, so oversea service is available.
Certificate: CE
Packing: The quantity under 10 sets packed in single wooden case, over 10 sets order will load in full container.
Delivery Time: Order quantity smaller than 10 sets, delivery time is 20 days; order quantity over 10 sets, the delivery time is 30 days.
