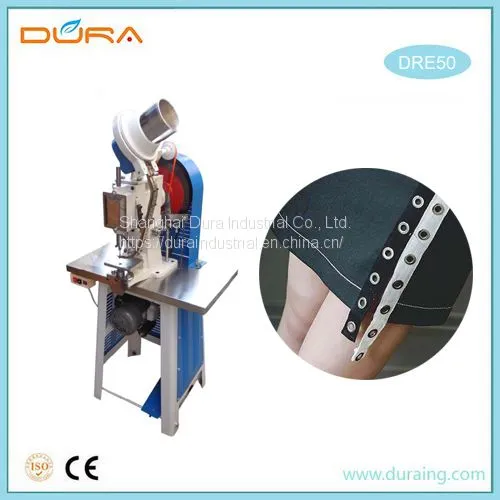

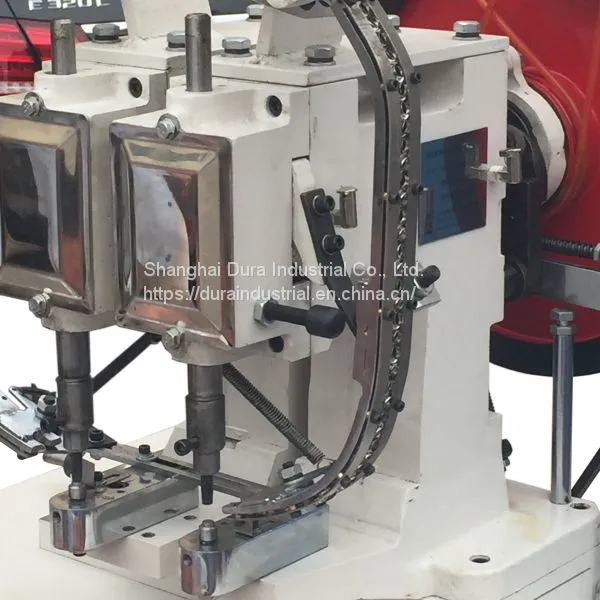

Automatic Eyelet Tipping Machine
- 500 Set / Sets per Month
- Shanghai
- T/T L/C
- 20 days
Product Details
Brand Name: | DURA | Place of Origin: | China | Model Number: | DRE50 |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 year |
Weight: | 120 kgs | Dimension(L*W*H): | 580x1000x1400mm | Voltage: | 220/380VAC |
Condition: | New | Power(W): | 1/2 hp | CNC or Not: | Normal |
Power Source: | Mechanical |
Product Description
Our Automatic Eyelet Tipping Machine is mainly used to tip the eyelet,rivet on the handbag paper or the other garments. It is easy to operate and enjoys a resonable price. Please contact with us if you need our machine.
Features:
1.Suitable for rivet in the end, cartons, leather, paper bags, gift boxes, signs, has been punching belt, leather goods and other nail holes. Simple operation and reliable performance. Efficiency unmatched by hand.
2.Widely used for handbags, paper bails production, portfolio, pressure ring making paper bags, confidential documents, ordinary file binding, binding security card, tag grommet production, anti-counterfeiting packaging sealed bags, garments, leather products, bags and mattresses eyelet holes buckle-production;
Characters:
Adopts high-quality shafts, reasonable structure, to ensure a stable function and longer lifespan.
Humanization design, safe and easy operation, direct and convenient maintenance.
This equipment uses electric auto motor driving device.
Standard accessories kit and complete after-sale service.
Specification:
Model | DRE50 |
Use | Apply to electronic circuit boards, horn, hose clamps, backplane, label, paper card, chip, computer radiator, hardware such as chicken eye accurate riveting. |
Surface diameter of rivet | Φ2.5-15(mm) |
Rivet diameter (outer diameter) | Φ1.3-8(mm) |
Rivet length | 2.0-12(mm) |
Throat depth | 110(mm) |
Motor power | 1/2(HP) |
Height from floor to bottom mold | 800(MM) |
Machine dimensions | 580*1000*1400(MM) |
Net weight | 100(KG) |
Gross weight | 120(KG) |
