Home > Manufacturing & Processing Machinery > Textile Machinery & Parts > Fabric Cutting Machine > DR6/42 Narrow Fabric Needle Loom

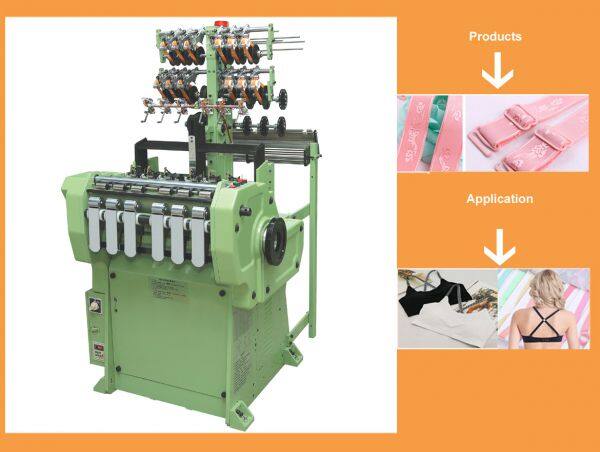

DR6/42 Narrow Fabric Needle Loom

Name: DR6/42 Narrow Fabric Needle Loom
Brand: DURA
SKU: 161141135
Availability: InStock

DR6/42 Narrow Fabric Needle Loom thumbnail-1

DR6/42 Narrow Fabric Needle Loom photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

DURA

Place of Origin:

China

Model Number:

DR6/42

Contact Supplier Request Quote Chat Now

Shanghai Dura Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai, Shenzhen,Ningbo

Delivery Detail:

10 days

Product Details
Company Profile
Contact Us

Brand Name DURA

Place of Origin China

Model Number DR6/42

Condition New

Material Capabilities Yarn

Product Other

With the advanced technology from abroad, this machine possesses the function of double tier, double hook and double weft weaving. It is characterized by high efficiency, convenient operation, elegant appearance, and smooth movement of the heald frame. This equipment is equipped with advanced automatic weft feeding device and double-speed brake motor, which makes the fine tuning of weft feeding possible while the machine is still running. It is especially suitable for the tape manufacturing of compact-structure products, such as bras, lingerie, and zippers etc.

Application:
DURA series Narrow Fabric Needle Looms are suitable for the production of elastic and non elastic narrow fabrics with jacquard patterns, logos, or brand names, including various tapes, belts, chains, ribbons, laces, and webbings, which are most often used in the industries of apparel, lingerie, footwear, caps, gloves, gifts, watches, cameras, raincoats, bags, luggage, upholstery, waist belts, hair ornaments, medical products, etc.

Main features:
1. The pin-type plate chain structure is characterized by precision, durability, easy dismantlement and no noise at high speed
2. The heald frame opening is specially structured for the extended rubber to move upwards, which can reduce the gravity and the force on and between the frame and the cutter, and thus assure that the machine is able to run smoothly and durably at high speed with no noise.
3. The tape-discharging unit employs belt drive instead of worm drive, which can greatly reduce the friction losses of the machine parts and make the maintenance of the machine and the adjustment of the weft density more convenient.
4. The machine parts are precisely and standardly made, featuring compatibility, durability, easy adjustment, convenient dismantling and maintenance.
5. The machine is equipped with the automatic system of oil supply and circulation, oil-route testing and oil trouble finding so as to enhance the lubrication between the cutters and the plate
Chain, and extend the life span of the machine accordingly.
6. Double-speed motor offers the option of quick and slow speed adjustments for the weaving.
7. With the function of single needle double hook and multi needle double hook, it is suitable for the tape weaving of the products such as bras, curtains and suspenders of men’s suits, etc.
8. With PC control applied in the whole machine, motor start up, machine stop, warp stop, weft stop and output etc can all be displayed.

Specification:

Machine Model	8/27	6/42	4/66
No. Of Spaces	8	6	4
Max Reed Width	27mm	42mm	66mm
Shedding Motion	12-20	12-20	12-20
Pattern Chain Repeat	48	48	48
Motor Power	2 H.P	2 H.P	2 H.P
Rotation Speed	1,500-1,700 rpm	1,500-1,700 rpm	1,300-1,500 rpm
Weft Density	2.9 -40.5cm	2.9 -40.5cm	2.9 -40.5cm
Special Equipment: DR/DH	DH	DH	N
