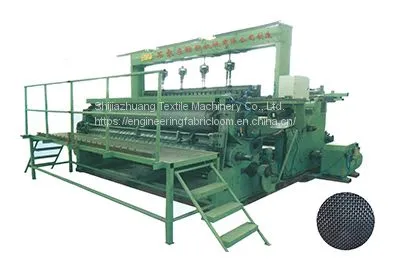

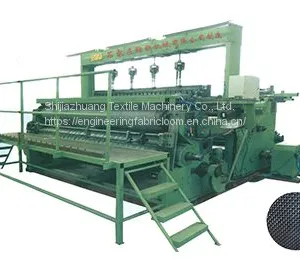

TWA Wire Mesh Rapier Loom
- tianjin
- T/T
- 3 days
You May Like
Product Details
| Place of Origin | China |
Product Description
TWA Wire Mesh Rapier Loom,non-asbestos Woven Brake Lining Loom,industrial belt Woven Brake Lining Loom
non-asbestos Woven Brake Lining Loom
industrial belt Woven Brake Lining Loom
This machine is to weave all kinds of wire mesh.
1.Reed Width: 3000mm-5000mm.
2.Applicable yarn: Various kinds of wire, such as stainless steel, copper, etc.
3.Economic Speed: 30rpm
4.Power: About 7.5Kw
5.Weight of Machine: About 20 Tons.
Machine Constructions
1.Frame work: It consists of two main wall boards and multiple groups of middle wall boards.
2.Main Drive: The PLC control Woven Brake Lining Loom is driven by pneumatic clutch and main motor system.
3.Shedding: Tappet cam shedding system, 4 pieces of heald frames.
4.Weft Insertion: Single rapier weft insertion, servo motor drive.
5.Beating-up: Crank shaft six linkage lever double beating up system.
6.Take-up: Mechanical take up.
7.Let-off: Mechanical positive let off mechanism
8.Control System: Adopting PLC control, it sets the buttons of output, fault, and speed.
