CXWJ Forming Fabric for Paper Making Rapier Loom
Paper Machine Clothing Loom Supplier
Paper Machine Clothing Loom Manufacturer
1. Extension of Polyester Monofilament: 0.1~0.8 mm.
2. Weft Density: 100~1200 picks/10cm.
3. Reed Width: 5.5m-12.8m.
4. Economic Speed: 40 rpm.
5. Power: 20KW-40KW.

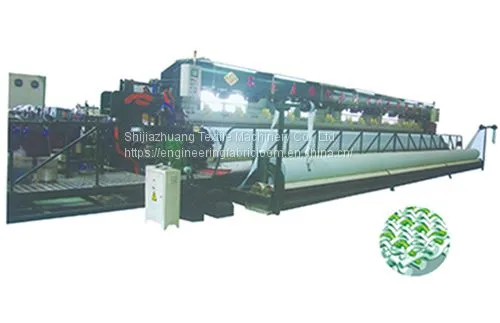

Paper Making Rapier Loom
1. Framework: The main wallboard adopting iron box structure. The machine install on the basement.
2. Main Drive: Adopting reluctance motor, two sided coaxial drive.
3. Shedding: Two-sided double acting dobby, 20 heddle frames
4. Weft Insertion: Servo motor drive, double rapiers weft insertion, six-color weft selecting device.
5. Beating-up: Multi-segment combined crank four-linkage weft beating.
6. Take-up: Servo motor drive, electronic control three-roller positive take-up.
7. Let-off : Servo motor drive, double warp beam positive let-off .
8. Web-rolling: External superficial web rolling driven by independent torque motor.
9. Lubrication: The complete machine is lubricated with automatic grease lubrication and hand oil lubrication.
10. Controlling: With PLC computer control system, the complete machine can freely set various parameters and automatically display faults.
More information please view here.
