A53 Gr.b Cylinder Seamless Casing Cold Drawn Steel Tubes and Pipes

FOB Price

US$ 800 - 1,000 / Metric Ton

5 Metric Tons(Min. Order)

Port qingdao yantai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China
Thickness	2, 30	Application	Hydraulic Pipe
Technique	Cold Drawn
Alloy Or Not	Non-alloy
Secondary Or Not	Non-secondary
Section Shape	Round

Product Description

product details

Commodity	a53 gr.b cylinder seamless casing cold drawn steel tubes and pipes
Size	OD:20mm-300mm WT:2mm-30mm
ID tolerance Surface roughness Length	H8,H9 Ra 0.02— 0.4μm According to the request of the clients
Grade	20#(aisi1020,ck20),45#(aisi1045,ck45),st52(16Mn,Q345D), 25Mn(stkm13c-t), 27SiMn
Standard Delivery condition Place of Origin	GB/T8713,GB/T3639,DIN2391 EN10305,ASTMA519 BK,BKW,GBK,NBK,BKS Yantai,China
MOQ	10MT
Package	standard packing with plastic caps and strapped bundles or as requests of
Package	the clients
Payment	L/C or T/T (30% in advance and 70& against copy of B/L)
Delivery	Within 20 days after confirming the deposit

chemical composition of seamless carbon steel pipe

Grade:20#45# Q345B Q345D 25Mn 27SiMn E355 SAE1026

Standard:GB/T8713 GB/T3639 DIN2391 EN10305 ASTMA519

Grade	chemical composition%
Grade	C	Si	Mn	P	S
20#	0.17-0.24	0.17-0.37	0.35-0.65	0.035	0.035
45#	0.42-0.50	0.17-0.37	0.50-0.80	0.035	0.035
SKTM13C-T(25Mn)	0.22-0.29	0.17-0.37	0.70-1.00	0.035	0.035
27SiMn	0.24-0.32	1.10-1.40	1.10-1.40	0.035	0.035
E355	≤0.22	≤0.55	≤1.6	0.025	0.025
Q345B	≤0.2	≤0.5	1.00-1.60	0.030	0.030
Q345D	≤0.2	≤0.5	1.00-1.60	0.030	0.030
SAE1026	0.22-0.28	0.15-0.35	0.60-0.90	0.040	0.050

we can provide such pipes:

1.Seamless steel tube and carbon tube

Widely used in oil,drilling, gas, Cranes, excavator also forklifts. Material is various, mainly STKM-13CT ST52 CK45 and AISI 1020. We can also offer as customized seamless steel tube.

2.precision steel tubes

cold drawn steel tube/cold rolled steel pipe

Grade: 20#45#16Mn25Mn Q345 27SiMnE355ST52 STKM13A STKM13C

Standard: GB/T8713GB/T3639DIN2391EN10305ASTMA519

Range: 30-300mm

Length: 11m(max)

The cold process can remove the oxide layer outside to improve surface and offer better mechanical property, also can change ID,OD,WT to meet every client request.

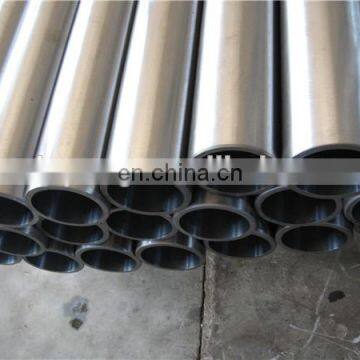

3. Honed steel tube&SRB steel pipe

ID Tolerance: H8H9 or as client's request

ID Roughness: RA0.4micron(max)

Length: 6m(max)

Inner roughness: Ra0.2-0.8um

Straightness: 1:1000 or customized

This process can improve the roughness of the inner tube to 0.2-0.8um and make tube for cylinder using directly.

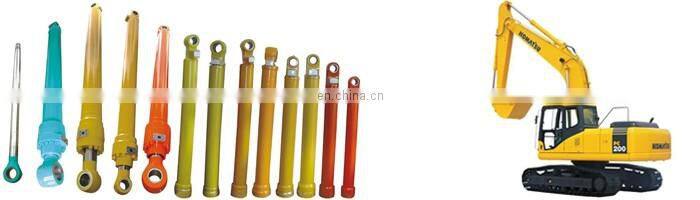

4.Hydraulic cylinder steel tube

Hydraulic cylinder tube

1.The hydraulic cylinder tube is the main part of the hydraulic cylinder.

2.The inner hole of the hydraulic cylinder tube usually precision processed by boring,reaming,rolling

or honing.

3.By these process can ensure the piston,sealing elements and the supportelements move smoothly,

then ensure the sealing effect and reduce the abrasion.

4.The hydraulic cylinder tube will bear big pressure,so need high strength and stiffness.

Company Information

Located in Yantai, our company Yantai Xinpeng Steel Pipe Co., Ltd, is in(APEC) Science& Technology Industrial Park, with convenient transportation. Established in Dec 1992, with registered capital of 5 million Yuan, we have more than 20 years experience in manufacturing and exporting steel pipe. Our company mainly produces various specifications of cold finished precision steel pipe, which are widely used in hydraulic Pneumatic cylinder for automobile, engineering machinery, textile machinery, printing machinery, oil drilling and other field.

Our company is equipped with JLB 250T hydraulic cold drawn machine set, LD120 precision cold rolled machine set, multiple precision straightening machine, box heat treat furnaces(8000-10000mm).In 2002, our company equipped one set advanced CNC skived and roller burnished machine SRB-600mm, several Powerful honed machine, Combined cold drawn, cold rolling, heat treatment and SRB process to produce the best quality products. Standard:GB/T8713-88, GB/T3639-2000 or according to customers’ requirement. Material usual 20#,45#,16Mn,25Mn,27SiMn,St35,St52 and so on.

our processing

FAQ

Q :Which countries do you export to?

A: America, India, Korea, Pakistan, Turkey, Iran and so on.

Q:What is your main payment itme?

A: T/T and L/C

Q: Are you trading company or manufacturer ?

A: We are manufacturer .

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment 30% T/T in advance ,balance before shippment.

Q: What's yourMOQ(minimum order quantity)?

A: One full 20ft container,mixed acceptable .

Q: What's yourpacking methods?

A: Packed in bundle or bulk (customed is accepted).

Packaging & Shipping

packaging details: standard packing with plastic caps and starpped bundles,standard wheight approx 1500Kg

delivery details: 15 days after receiving downpayment or L/C or as your request

testing

1.portable hardness tester

2.wall thickness gauge

3.ultrasonic flaw detector

4.digital rockwall hardness tester

5.tensile testing machine

6.USA import UT test machine

application

Our service formula:good quality+good price+good service =customer’s trust =Honor business

1. Cargo track service during transporting and feedback service after cargo is loaded on board

2. Flexible terms of payment .

3. Big discount for repeat customers

4. Smooth delivering procedure

5. Payment Terms: T/T , L/C and so on

Our Services

All our products can be produced according to your requirement strictly and guarantee the quality.

Our advantages as below:

1. Stable stock with competitive price and good quality

2. Special size is available.

3. Indoor warehouse can prevent rust
