Green Rubber Compound Cutting Machine for Scrap Reduction in Tire Plant

Green Rubber Compound Cutting Machine for Scrap Reduction in Tire Plant thumbnail-1
Green Rubber Compound Cutting Machine for Scrap Reduction in Tire Plant thumbnail-2
Green Rubber Compound Cutting Machine for Scrap Reduction in Tire Plant thumbnail-3
Green Rubber Compound Cutting Machine for Scrap Reduction in Tire Plant thumbnail-4
Green Rubber Compound Cutting Machine for Scrap Reduction in Tire Plant thumbnail-5

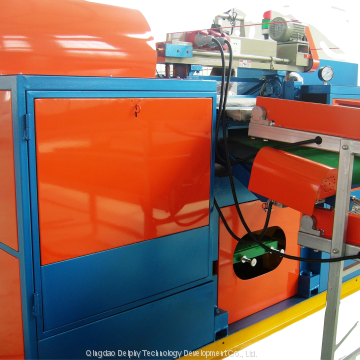

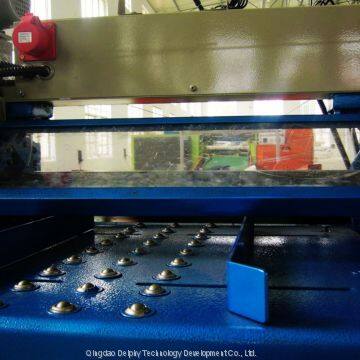

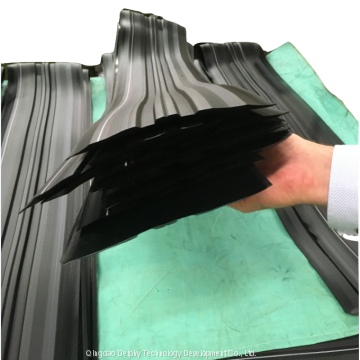

Green Rubber Compound Cutting Machine for Scrap Reduction in Tire Plant photo-1
Green Rubber Compound Cutting Machine for Scrap Reduction in Tire Plant photo-2
Green Rubber Compound Cutting Machine for Scrap Reduction in Tire Plant photo-3
Green Rubber Compound Cutting Machine for Scrap Reduction in Tire Plant photo-4
Green Rubber Compound Cutting Machine for Scrap Reduction in Tire Plant photo-5
US$ 70000 - 90000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DLFTECH
Place of Origin:
China
Model Number:
DLF-LC600
Contact Supplier Request Quote Chat Now
Qingdao Delphy Technology Development Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
60 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DLFTECH
Place of Origin China
Model Number DLF-LC600
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 3T
Dimension(L*W*H) 3600*800*1700
Condition New
Voltage 380V
Power(W) 14kw
Product Description
Product Application

Tread complexes compound splitting machine

Tread complexes flaking machine, mainly used to separate the rubber compound of different formulas and to be reused, maintaining the original quality . This not only ensures the quality of the tires, but also saves economic losses.

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Technical parameters
unit
specification
Dimension
mm
3,600×800×1,700
Weight
kg
3000
Feeding width
mm
680
Proceeding speed with knife on
m/s
7.5
Feeding speed
m/min
8.5-18
Max feeding thickness
mm
60
Min flaking thickness
mm
1
Tool dimension
mm
6580×80×1
Grinder dimension
mm
¢75×¢20.5×45
Grinder material
white alumina
Main Features


1 No water cut: Get the tread complexes divided into parts made of different formula without water.
2.  Accurate splitting: the splitting surface is smooth and neat, and the splitting precision is more than 90%
3. Self-sharpening blade: It is equipped with patented self-sharpening mechanism that requires no power, which contributes to sharp blade, high speed sharpening and prolonged replacement period of consumables.
4. High efficiency: It adopts patented pressure balance system, which leads to labor saving, high efficiency, and long service life of the equipment


Related Products
Cured tire trimmer
Tyre cutting maching
Tire manufacturing technology and equipment
Certifications
Machining workshop
Annealing
Welding Robot
Our Company
Qingdao Delphy Technology Development Co., Ltd.

Delphy is a provider specializing in the professional technology and equipment for the tire and conveyor belt industry. In accordance with the development concept of "integration, innovation, transcendence, and leading", we strive for getting through the whole process of tire and conveyor belt industry in terms of realizing Industry 4.0, aiming for bringing new profit growth and lasting market competitiveness to clients and helping them in creating greater social value.

Delphy benefits from the technical and R&D support of domestic experts in tire and conveyor belt industry  and of research institutes and universities, as well from technical exchange and learning with international large-scale academic teams and rubber industry experts, which makes us be able to stand at the forefront of world rubber technology. Furthermore, with strong processing and assembly capabilities, we are committed to providing new material, new technique, new equipment and line upgrading with high quality and sophisticated technology, which are good enough to improve industry standard. At present, delphy has set up one design center and three manufacturing bases in China,namely Qingdao Rubber Construction Industrial Engineering Co., Ltd., Qingdao West Coast New District Universal Machinery Manufacturing Base, Jiangyin Niche Product Manufacturing Base and Inner Mongolia Extruder Series Product Manufacturing Base. Delphy has established comprehensive strategic cooperation with upstream, middle and downstream enterprises in the tire and conveyor belt industry in China and neighboring countries. Company has been making continuous efforts to promote the automation and intelligent development in rubber industry, and is committed to creating an incubator platform including production, training and research of the tire and conveyor belt industries.


Product Tags: Rejected tread, sidewall ,IL/Squeegee splitting machine , Scrap rubber compound splitter , green tread compound complexes cutting machine , scrap rubber , rejected rubber compound , compound cutter
