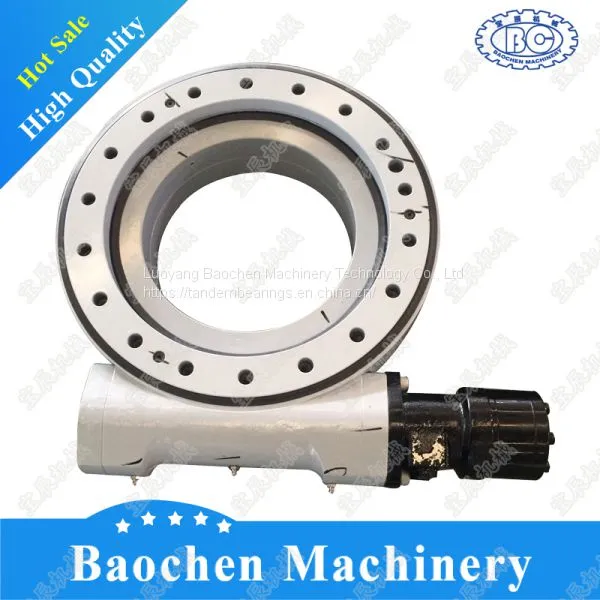

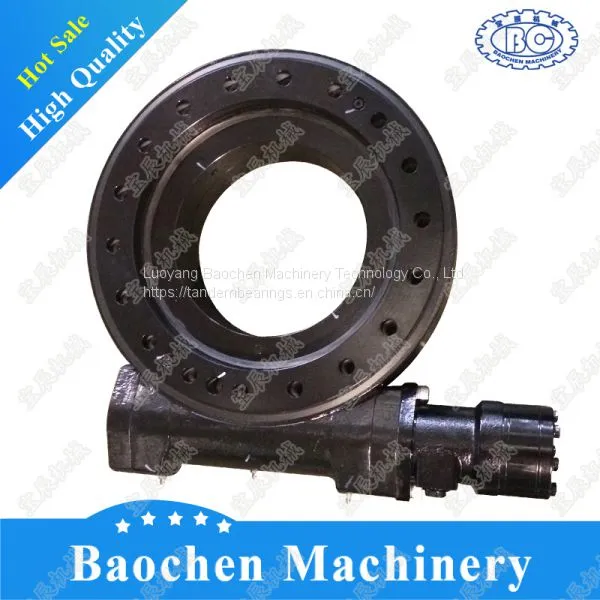

Enclosed Type Solar Energy Slew Drive Alloy Steel Forgings ISO9001：2008 BV
US$ 1 - 100000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OEM
Place of Origin:
China
Model Number:
9 inch
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
DC Motor Single Worm Dual Worm Slewing Bearing Slewing Drive for Solar Tracking SystemUS$ 1 - 100000MOQ: 1 Piece -
DC Motor Single Worm Dual Worm Slewing Bearing Slewing Drive for Solar Tracking SystemUS$ 1 - 100000MOQ: 1 Piece
-
Efficiency Hydraulic Slewing Drive With 50Mn Internal Gear , Electric MotorUS$ 1 - 100000MOQ: 1 Piece
-
Slew Drive,slewing Drive, Slew Bearing ,solar Tracker ,solar Tracking SystemUS$ 1 - 100000MOQ: 1 Piece
-
Slew Drive ,slew Bearing ,bearing ,worm Gear ,slewing Drive , Slew RingUS$ 1 - 100000MOQ: 1 Piece
Brand Name
OEM
Place of Origin
China
Model Number
9 inch
Number of Row
Other, multi-row
Precision Rating
P4
Outside Diameter
4, 42
Bore Size
24, 50
Enclosed type solar energy slew drive,open type solar energy slew drive,

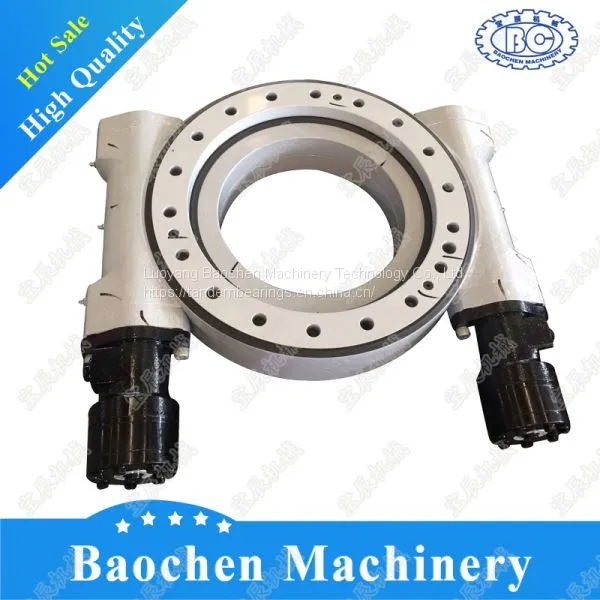

Single worm slew drive,double worm slew drive
Products reference:
|
Material |
Alloy steel,carbon steel |
Processing equipment |
Forging,casting |
|
Application |
Solar power generator equipment,turing,tracking function |
| Processing technology |
Forging+heat treatment+rough machining+QT+CNC finish machining |
|
Normal output |
400-36000N.m |
| Max output | 800-40000N.m |
| capsizing moment | 200-300000N.m |
| Reduction ratio | 62:1 |
| Applicable standard | ASTM,ASME,DIN,JIS,ISO,BS,API,EN |
| Executive standard | JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
| Certification authority | ISO,BV,SGS, IST, UL,CTI |
| Delivery term | finished product delivery |
| Test equipment |
Spectrograph,UT device,tensile and impact test machine,metalloscope,torque tester |
| Service | Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality. |
Parameters:
| Type | Center distance of installation hole of outside ring mm | Installation hole of outside ring | Center distance of installation hole of inside ring mm | installation hole of inside ring | Raceway dia mm | Speed ratio | Max outputN.m | Normal output N.m | Capsizing momentN.m |
| SE3- | 100 | 6-M10 | 100 | 6-M10 | 60 | 62:1 | 800 | 400 | 1100 |
| SE5- | 135 | 6-M10 | 70 | 7-M10 | 104 | 62:1 | 1200 | 600 | 220 |
| SE7- | 203.1 | 10-M12 | 120.7 | 8-M12 | 164 | 71:1 | 1458 | 1042 | 13560 |
| SE9- | 270 | 15-M16 | 175 | 16-M16 | 222 | 61:1 | 8835 | 4320 | 33920 |
| SE12- | 358 | 19-M16 | 259 | 18-M16 | 314.3 | 78:1 | 9052 | 7500 | 54240 |
| SE14- | 390 | 23-M16 | 295 | 18-M16 | 342. | 85:1 | 12308 | 10200 | 67800 |
| SE17- | 480 | 20-M16 | 365 | 20-M16 | 422 | 102:1 | 18094 | 15096 | 135600 |
| SE21- | 584 | 35-M20 | 466.7 | 36-M20 | 525 | 125:1 | 30500 | 23500 | 203400 |
| SE25- | 675 | 35-M20 | 565 | 36-M20 | 630 | 150:1 | 45320 | 35260 | 295500 |
| WE09- | 270 | 15-M16 | 175 | 16-M16 | 222 | 61:1 | 8835 | 4320 | 33920 |
| WE12- | 358 | 19-M16 | 259 | 18-M16 | 314.3 | 78:1 | 9052 | 7500 | 54240 |
| WE14- | 390 | 23-M16 | 295 | 18-M16 | 342. | 85:1 | 12308 | 10200 | 67800 |
| WE17- | 480 | 20-M16 | 365 | 20-M16 | 422 | 102:1 | 18094 | 15096 | 135600 |
| WE21 | 584 | 35-M20 | 466.7 | 36-M20 | 525 | 125:1 | 30500 | 23500 | 203400 |
| SS09- | 270 | 15-M16 | 175 | 16-M16 | 222 | 61:1 | 8835 | 4320 | 33920 |
| SS12- | 358 | 19-M16 | 259 | 18-M16 | 314.3 | 78:1 | 9052 | 7500 | 54240 |
| SS14- | 390 | 23-M16 | 295 | 18-M16 | 342. | 85:1 | 12308 | 10200 | 67800 |
| SS17- | 480 | 20-M16 | 365 | 20-M16 | 422 | 102:1 | 18094 | 15096 | 135600 |
| SS21- | 584 | 35-M20 | 466.7 | 36-M20 | 525 | 125:1 | 30500 | 23500 | 203400 |
| SS25 | 675 | 35-M20 | 565 | 36-M20 | 630 | 150:1 | 45320 | 35260 | 295500 |
Commerce clause:
| MOQ | 10PC |
| Delivery time | 20-40 days |
| Package | Wooden case,wooden pallet,steel frame |
| Delivery term | FOB;CIF;CFR；DDU； |
| Payment term | T/T,LC |
| Transportation | ocean,air |
Keywords:

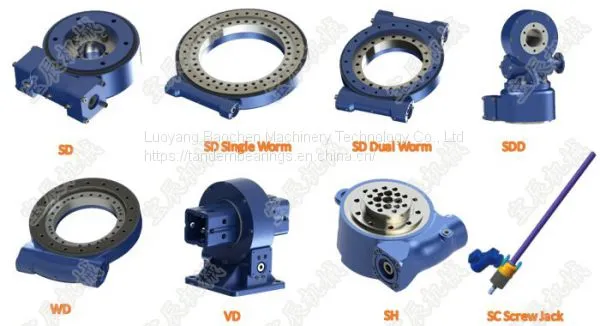

solar energy slew drive series product includes:1.vertical type drive series 2.open type single worm slew drive3.enclosed type single worm slew drive
4.enclosed type double worm slew drive5.open type double worm slew drive
Advantage:
High-precision dimensional tolerance;
Excellent mechanical properties;
Produce different dimension based on customer’s requirements;
Advanced manufacture equipments and inspection devices;
Excellent technical personality;
Control the production procedure strictly;
Pay attention on the package protection;
Quality full service.
