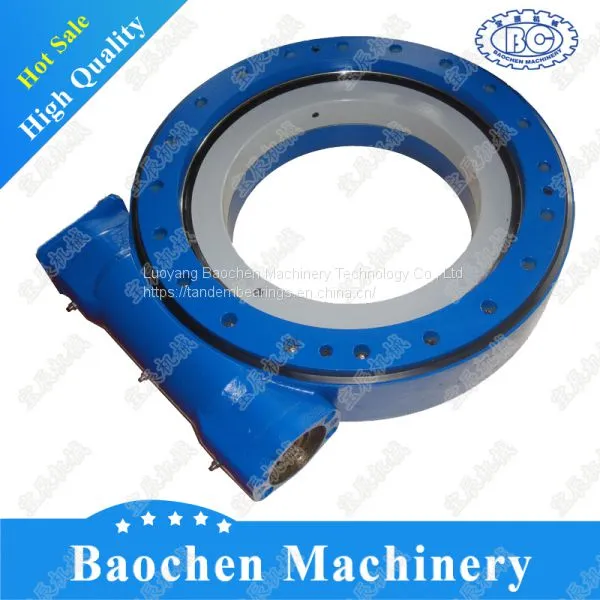

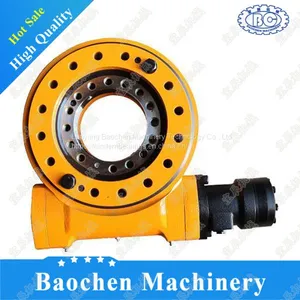

Efficiency Hydraulic Slewing Drive With 50Mn Internal Gear , Electric Motor
Quick Detail:
14” slewing drive for solar tracker and engineering machinery.

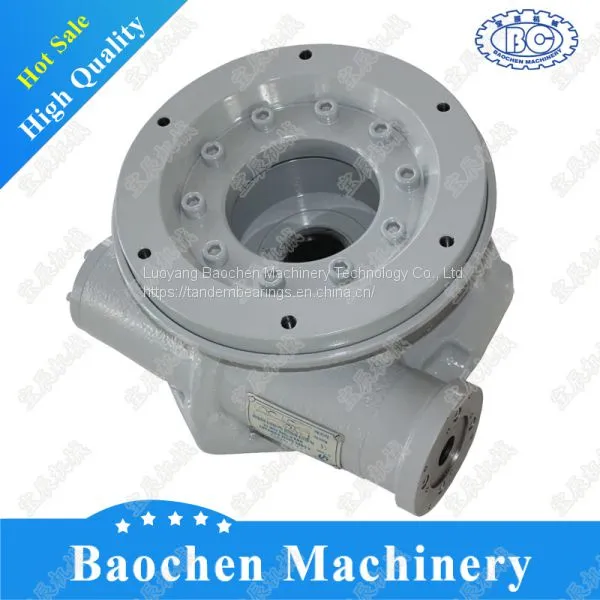

AX14 Enclosed housing slewing drive, A14 Open housing slewing drive.
With many years of manufacturing and export experience in bearings field, 90% of our output to Europe and the USA.
ISO9001:2008 certificate approved quality
OEM service.
Description:

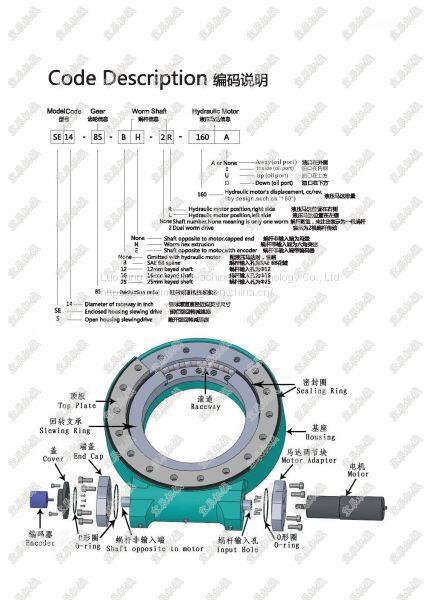

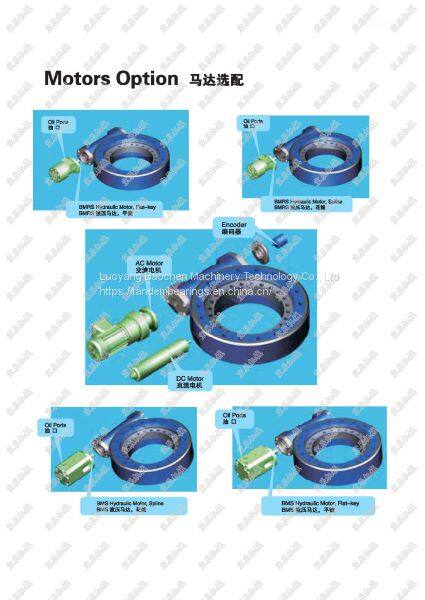

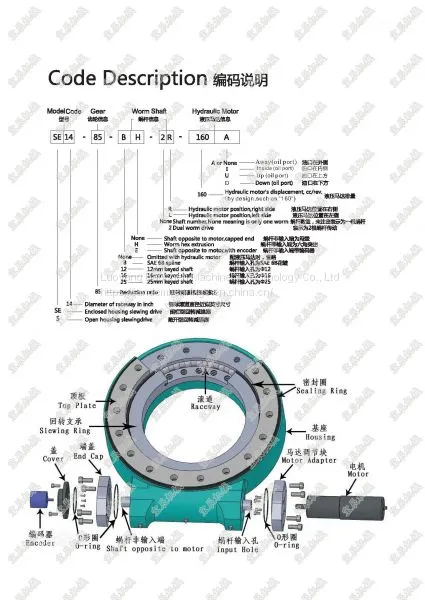

Aoxuan Slewing drive mainly consists of a slewing bearing, a worm gear or spur gear, housing and a hydraulic or an electric motor.
Aoxuan slewing drive delivers dependable operation with the rugged design ensuring many years of low-maintenance operation and feature of easier installation and compact space etc. With many years of manufacturing and export experience in bearings field, 90% of our output to Europe and the USA, ISO9001:2008 certificate approved quality, OEM accepted.

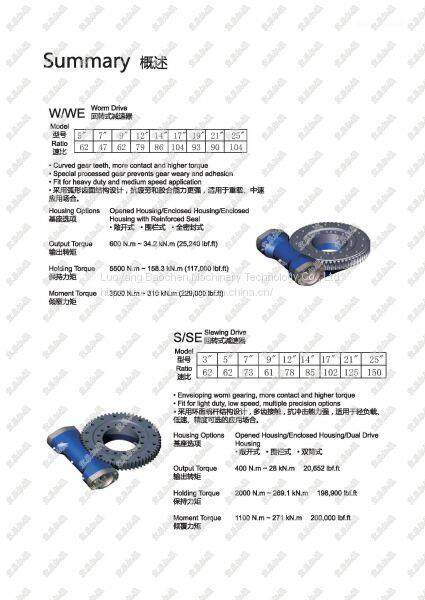

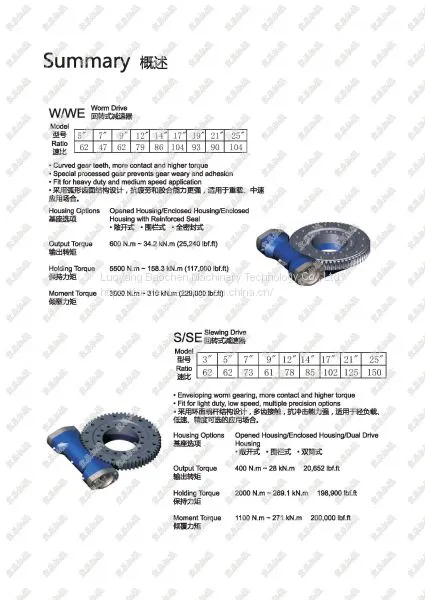

Slew drive is divided into worm gear driven type and spur gear driven type, the worm gear series slew drive contains 9 sizes from 3 inch to 25 inch, AX3(3inch), AX5(5inch), AX7(7inch), AX9 (9inch), AX12(12inch), AX14(14inch), AX17(17inch), AX21 (21inch), AX25 (25inch), and widely used for solar tracking system, vehicle and crane steering systems, man lift systems for boom and basket rotation, light crane systems, rotation of attachments such as excavators, grabs and fork lifts, handling equipment (automation systems), loading and unloading devices, positioning systems / turntables.
Applications:
Aoxuan Slewing drives are widely used not only in excavators, tower cranes, mobile cranes and crawler cranes, but in other construction machines, engineering machines, harbor machines, metallurgical machines, light industrial machines, military equipments and wind generators, solar PV utilities etc.
Specifications:
Data Model |
Output Torque |
Tilting Moment Torque |
Holding Torque |
Static Axial Rating |
Static Radial Rating |
Dynamic Axial Rating |
Dynamic Axial Rating |
Gear Ratio |
Accurace |
Self Locking Gears |
Weight (KG) |
|
AX14 |
8 kN.m |
67.8 kN.m |
48 kN.m |
555 kN |
222 kN |
133 kN |
117 kN |
85:1 |
≦0.17° |
Yes |
64 |
|
5900lbf.ft |
50x103lbf.ft |
35x103lbf.ft |
125x103lbf |
50x103lbf |
30x103lbf |
26x103lbf |
||||||
A14 |
8 kN.m |
67.8 kN.m |
48 kN.m |
555 kN |
222 kN |
133 kN |
117 kN |
85:1 |
≦0.17° |
Yes |
64 |
|
5900lbf.ft |
50x103lbf.ft |
35x103lbf.ft |
125x103lbf |
50x103lbf |
30x103lbf |
26x103lbf |
||||||
AX14-2 |
12 kN.m |
67.8 kN.m |
48 kN.m |
555 kN |
222 kN |
133 kN |
117 kN |
85:1 |
≦0.17° |
Yes |
76 |
|
8851lbf.ft |
50x103lbf.ft |
35x103lbf.ft |
125x103lbf |
50x103lbf |
30x103lbf |
26x103lbf |
||||||
A14-2 |
8 kN.m |
67.8 kN.m |
48 kN.m |
555 kN |
222 kN |
133 kN |
117 kN |
85:1 |
≦0.17° |
Yes |
62 |
|
5900lbf.ft |
50x103lbf.ft |
35x103lbf.ft |
125x103lbf |
50x103lbf |
30x103lbf |
26x103lbf |
Competitive Advantage:
Customized service
CNC manufacturing machines and testing equipments
Good quality and favorable price
