KCPZ Shotcrete Machine

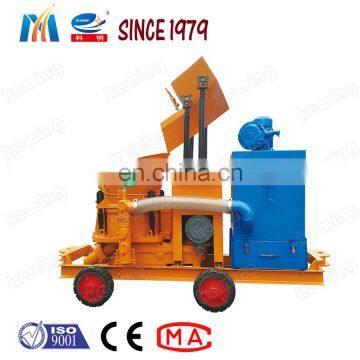

New Shotcrete Concrete Sprayer Dry Concrete Spray Machine
Shotcrete Machine Features:
1.KCPZ Dedusting Shotcrete Machine obtains the Invention Patent and Utility Model Patent. The machine structure and spraying nozzle have new designs.
2.New environmental shotcrete machine, less environmental pollution (less than 90% of dust pollution of traditional machine), less harm to workers’ health.
3.New spraying nozzle device, even concrete mixing, low rebound rate.
4.Adding accelerator automatically and evenly, saving workers.
5.Compact machine structure, simple operation, suitable for concrete operation in narrow space.
Shotcrete Machine Innovative Designs: Dedusting Shotcrete Machine
1.Collection and exhaust device of leaked air of hopper, rotor liner plates, reducing the dust leakage.
2.New dust removal technology and filter material, with good filtering effect and long service life.
3.Drawer-type dust container, convenient to clean.
4.Spraying nozzle system with multiple circular water adding device, ensuring even mixing.
5.Accelerator added by vibration, ensuring micro adjustment and proper adding ratio.
Shotcrete Machine Parameters: Dedusting Shotcrete Machine
Model |
KCPZ Shotcrete Machine |
Capacity |
6m3/h |
Delivery distance |
100m/30m (horizontal/vertical) |
Max. aggregate size |
≤20mm |
Delivery pipe ID. |
φ51mm |
Rated working pressure |
0.5MPa |
Air consumption |
≤8m3/min |
Feeding height |
1.1m |
Rebound rate |
≤20% |
Dust concentration |
≤15mg/ m3 |
Rotor rev. speed |
11r/min |
Main motor power |
7.5 kW |
Dust collector motor power |
1.1kW |
Main motor rev. speed |
960r/min |
Accelerator adding hopper |
25kg |
Dimensions (Length×width×height) |
2150×900×1750 mm (including accelerator adding device) 2150×900×1470 mm (excluding accelerator adding device) |
Total weight |
980 Kg |
Shotcrete Machine Detailed Images:
|
Shotcrete Machine Application:
|
Henan Coal Scientific Research Institute Co., Ltd. was established in March 1979. In 1999, it was ranked among the first batch of 242 coal research institutes, and implemented localized management by Henan Province. In 2006, it was transformed successfully into a scientific and technological enterprise, and renamed officially as Henan Coal Scientific Research Institute Co., Ltd.
Achievements: As one of the standard setting unit of national shotcrete equipment industry, the company has obtained more than 170 research and development achievements, more than 110 technical consulting services, 82 technology awards and15 national invention patents and utility model patents.
Application: mining well project, hydropower engineering, highway (railway) tunnel, subway engineering, bridge and slope maintenance, air-raid shelter construction, municipal construction, environmental greening project, blast-furnace refractories spraying, etc.
Main Products: wet/dry shotcrete machine, concrete/shotcrete pump, grouting pump, cement pump, mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine, plastering machine etc.
---Shotcrete Machine, Gunite Machine, Concrete Spraying Machine
1. Q: Which shotcrete machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: dry / damp mixture, or ready mixed wet mixture
- Capacity: 3m3/h, 4m3/h, 5m3/h, 6m3/h, 7m3/h, 9m3/h
- Delivery distance (horizontally / vertically):
- Driven type: electric motor, pneumatic motor, diesel engine
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber plate, steel plate, rubber cavity, spraying nozzle, delivery hose may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many cubic meters you will spray.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
Tel: 0371-63844654/67836512
Fax: 0371-63930764
Mobile: +86 18236882465 (Whatsapp/Wechat)
Skype: zhang-angela
QQ: 2561389251
Email: angela_zhang @
zhangting097 @
