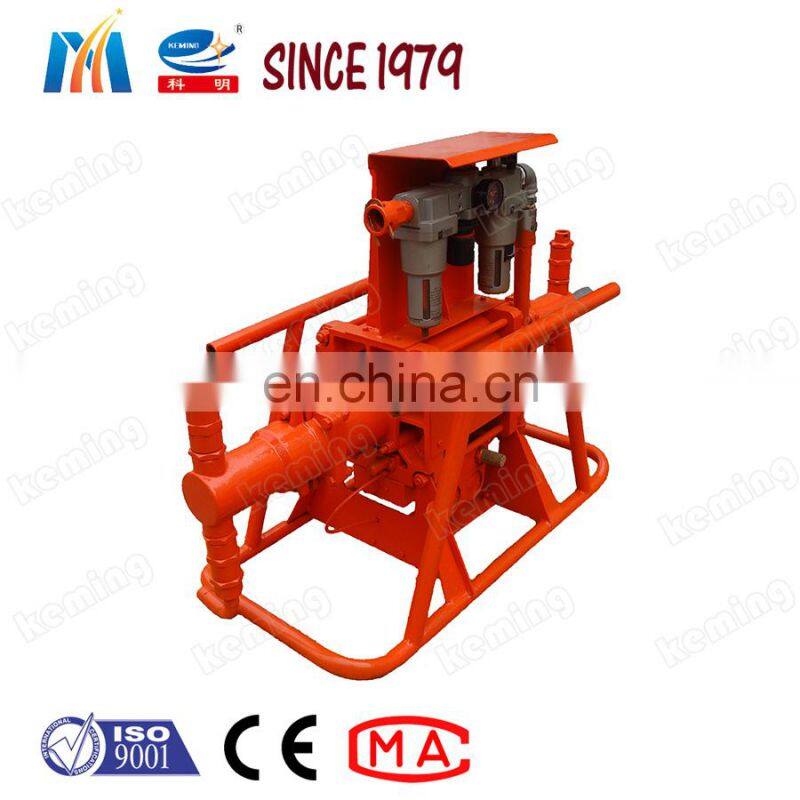

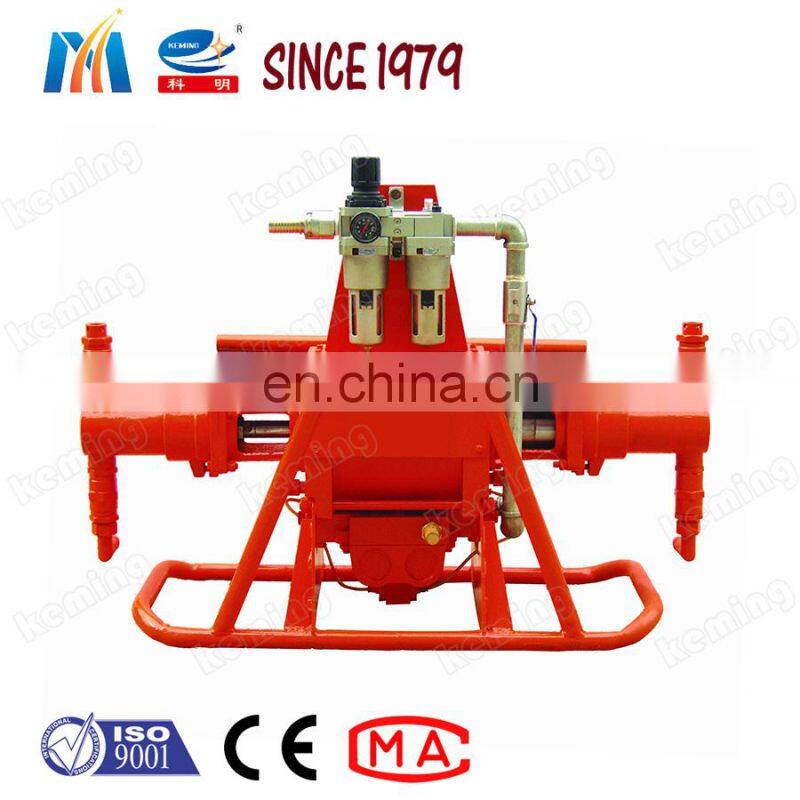

2ZBQ Pneumatic Pump
Coal Mine Pneumatic Pump Pneumatic Pump Price
Pneumatic Pump Features: Pneumatic Pump
1.2ZBQ Pneumatic Single/Double Liquid Grout Pump for Coal Mine
2.high efficiency, reliable performance, long service life.
3.simplified structure, light weight, flexible movement, convenient operation and maintenance.
Pneumatic Pump Application: Pneumatic Pump
1.2ZBQ Pneumatic Grout Pump can be used to grout mortar, cement paste, slurry and other liquid (particle size ≤ 3mm).
2.widely used in tunnels, coal mine, bridges and dams, building foundation, and other underground projects, and inflammable, explosive sites and other bad environment.
Pneumatic Pump Technical Parameters: Pneumatic Pump
2ZBQ10/10 pneumatic pump |
2ZBQ20/4 pneumatic pump |
|
Rated output capacity |
10L/min |
20L/min |
Rated output pressure |
10Mpa |
4Mpa |
Rated air pressure |
0.5 Mpa |
0.5 Mpa |
Reciprocating frequency |
30 r/min |
20 r/min |
Air pressure range |
0.2-0.63 Mpa |
0.2-0.63 Mpa |
Output pressure range |
0~15 Mpa |
0~7 Mpa |
Plunger diameter |
45mm |
75mm |
Discharge hose dia. |
13 mm |
13 mm |
Suction hose dia. |
25 mm |
25 mm |
Air cylinder dia. |
250 mm |
250 mm |
Air consumption |
≤1 m3/min |
≤2 m3/min |
Volume efficiency |
90% |
90% |
Stroke |
120 mm |
120 mm |
Weight |
110 kg |
110 kg |
Dimensions |
1100*450*580 mm |
1100*450*580 mm |
Pneumatic Pump Detailed Images:
|
|
|

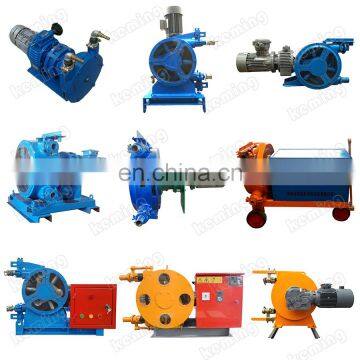

KBY Hydraulic Cement Grout Pump * Double Fluid Grout |
ZBYSB Hydraulic Cement Grout Pump * Double Fluid Grout * Constant Power, Variable Speed |
|
|
|
2ZBSB Mechanical Cement Grout Pump * Single Fluid Grout * Variable Speed |
KH Industrial Hose Pump * Electric Motor, Diesel Engine * Constant Speed, Variable Speed |
|
|
|
2ZBQ Pneumatic Pump
|
LZB Screw pump
|
|
|
|
KHB Mortar Pump
|
ZBS Piston Pump
|
|
|
|
KBW Mud Slurry Pump
|
SDB Manual Pump
|
1. Q: Which pump should we choose?
A: To recommend the most suitable model, please tell us:
- Material: composition, max aggregate size
- Capacity (-m3/h) :
- Delivery distance (horizontally / vertically):
- Grouting pressure:
- Driven type: electric motor, diesel engine, pneumatic motor
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
Henan Coal Scientific Research Institute Co., Ltd. was established in March 1979. In 1999, it was ranked among the first batch of 242 coal research institutes, and implemented localized management by Henan Province. In 2006, it was transformed successfully into a scientific and technological enterprise, and renamed officially as Henan Coal Scientific Research Institute Co., Ltd.
Achievements: As one of the standard setting unit of national shotcrete equipment industry, the company has obtained more than 170 research and development achievements, more than 110 technical consulting services, 82 technology awards and15 national invention patents and utility model patents.
Application: mining well project, hydropower engineering, highway (railway) tunnel, subway engineering, bridge and slope maintenance, air-raid shelter construction, municipal construction, environmental greening project, blast-furnace refractories spraying, etc.
Main Products: wet/dry shotcrete machine, concrete/shotcrete pump, grouting pump, cement pump, mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine, plastering machine etc.
