Pressure calibrator/pressure calibration hand pump

Description of pressure calibrator/pressure calibration hand pump

The pneumatic pressure calibrator (hereinafter referred to as the pressure calibrator) is an important auxiliary equipment in the measurement of pressure instrument.Coordinate with pressure gauge to complete calibration and testing of pressure gauge.
The pressure calibrator is designed skillfully, easy to operate, easy to build pressure, fast pressure speed, widely used in measurement, scientific research, industrial and mining enterprises and instrument manufacturing industries.

Features of pressure calibrator/pressure calibration hand pump

1. Open structure, all parts and pipelines are combined on the front, easy to maintain.
2. Large chamber, wide stroke lever pressure pump, easy pressure, fast pressure.
3. The successful application of CNC car, milling and grinding technology has high precision and good performance.

Specification of pressure calibrator/pressure calibration hand pump

1.Pressure range:-0.1-6MPa
2.Min adjustment:10pa
3.Dimension:400×300×160mm
4.Weight: 7Kg

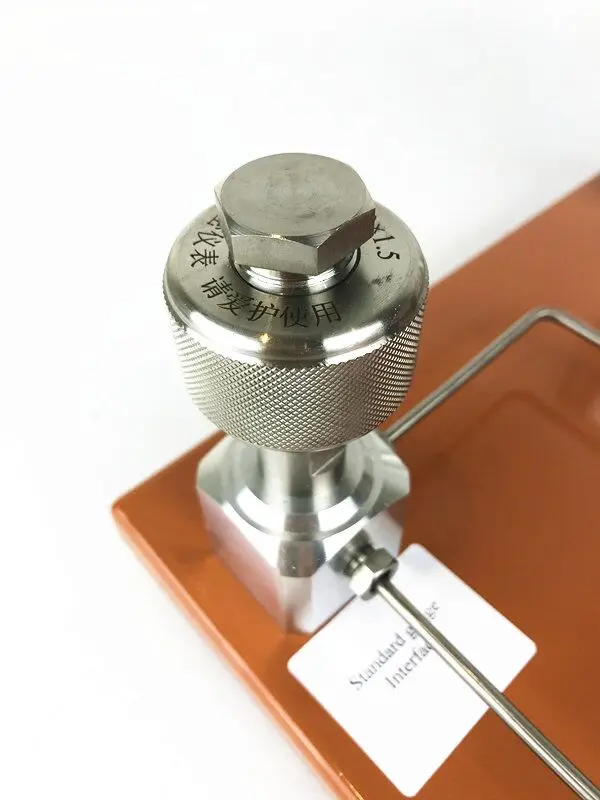

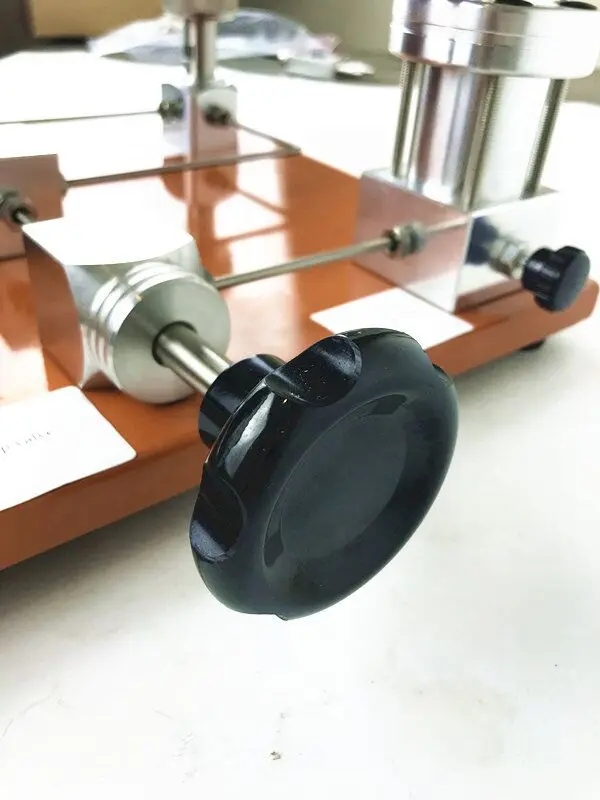

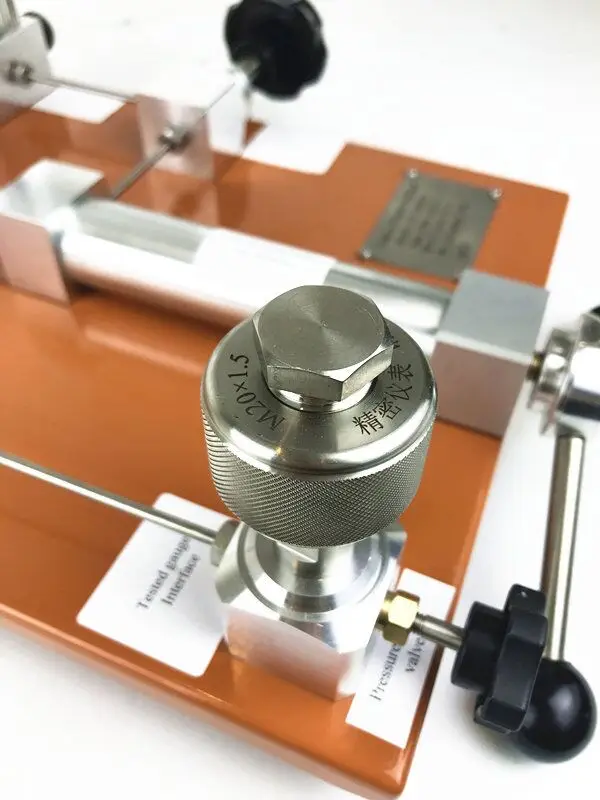

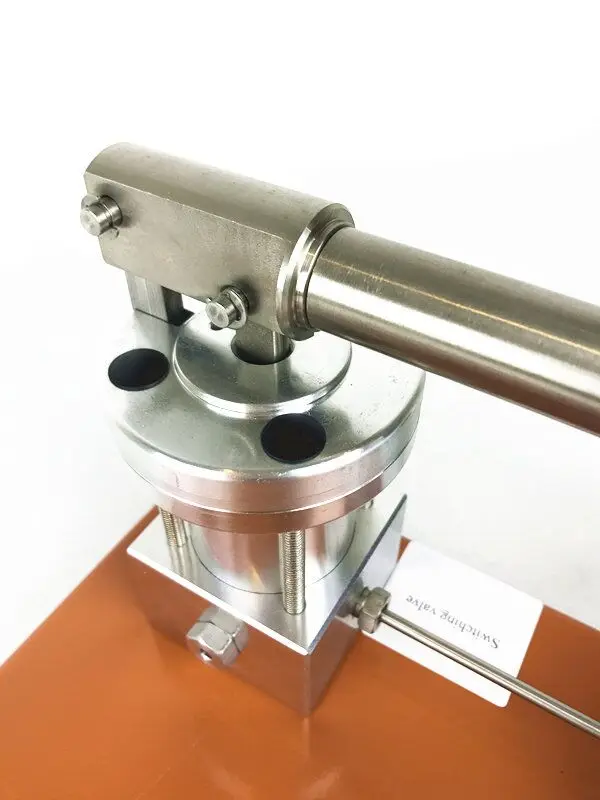

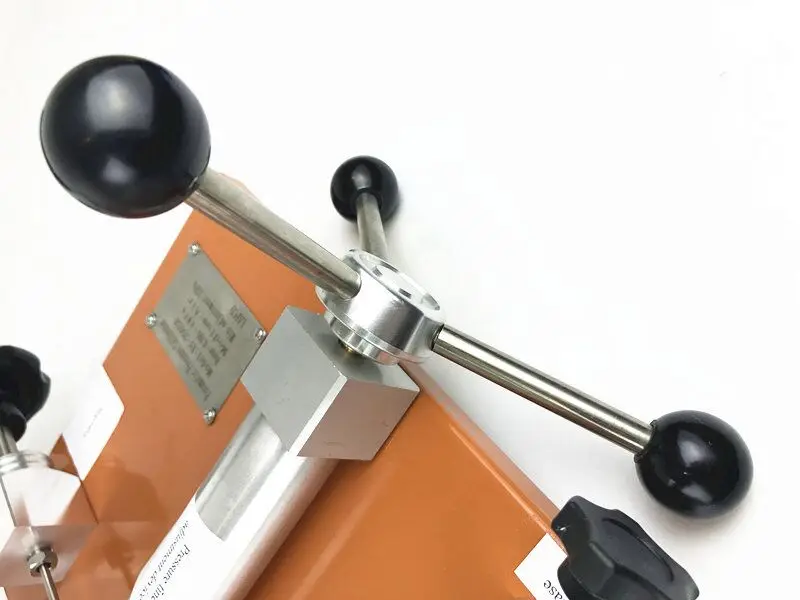

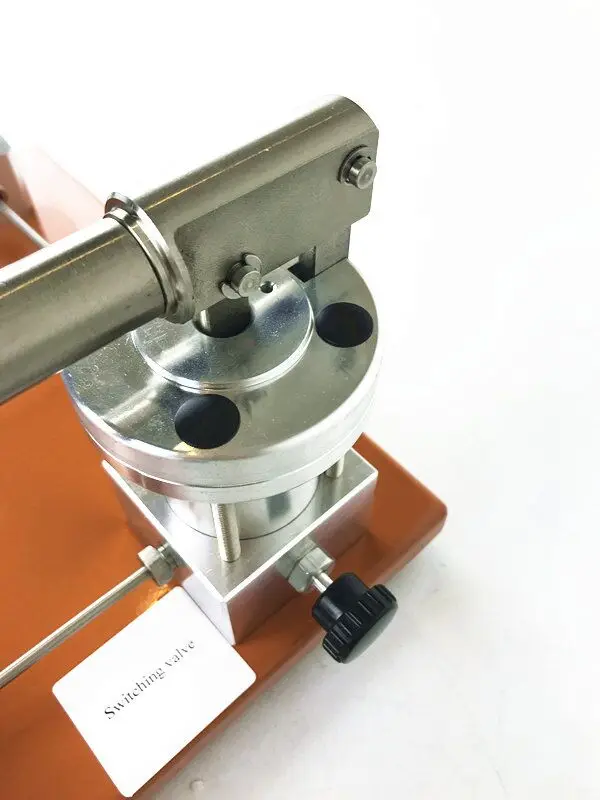

Detailed Images of pressure calibrator/pressure calibration hand pump

Applications of pressure calibrator/pressure calibration hand pump

The lever drives the large chamber piston to reciprocate, generates pressure, and is fine-tuned to the output via a pressure stabilizing valve.The required pressure is accomplished by monitoring the standard gauge, and then the fine adjustment approaches the verification point. If there is a slight pressure leakage, just lock the pressure stabilizing  valve.
