Home > Products > High Pressure Washers > Commercial Contractor 140 Bar Triplex Plunger Pump

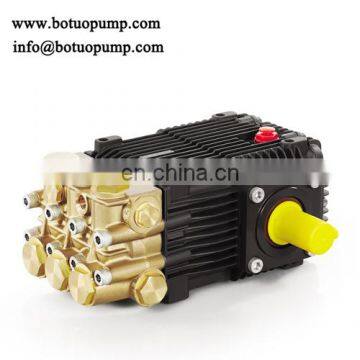

Commercial Contractor 140 Bar Triplex Plunger Pump
- 30000 Set / Sets per Month
- Ningbo
- T/T Credit Card
Product Details
Brand Name: | BOTUO | Place of Origin: | Zhejiang, China | Model Number: | TK14.14C |
Usage: | Water | Theory: | Jet Pump | Standard or Nonstandard: | Standard |
Product Description

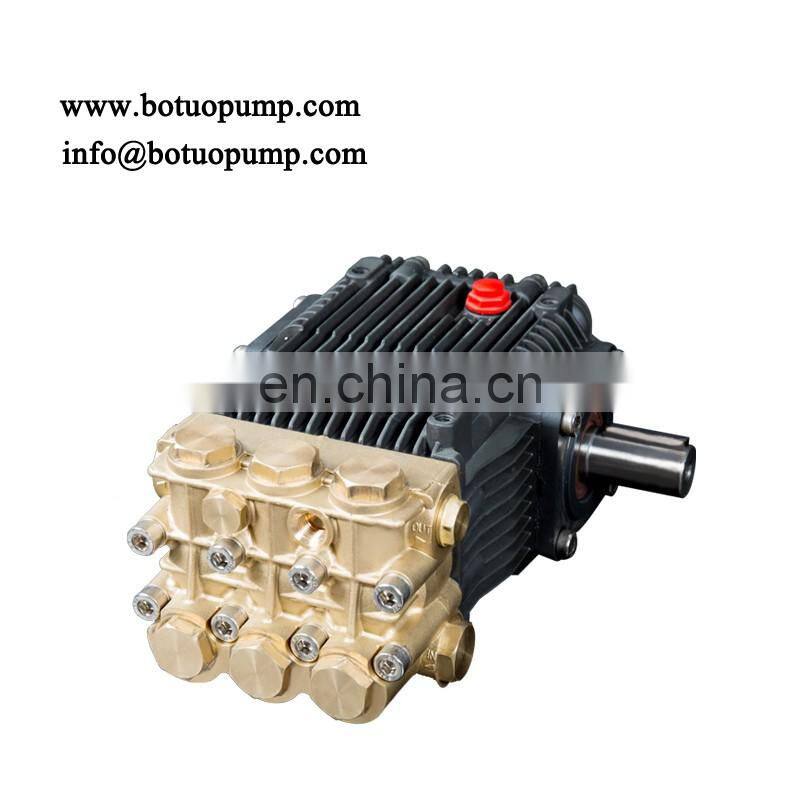

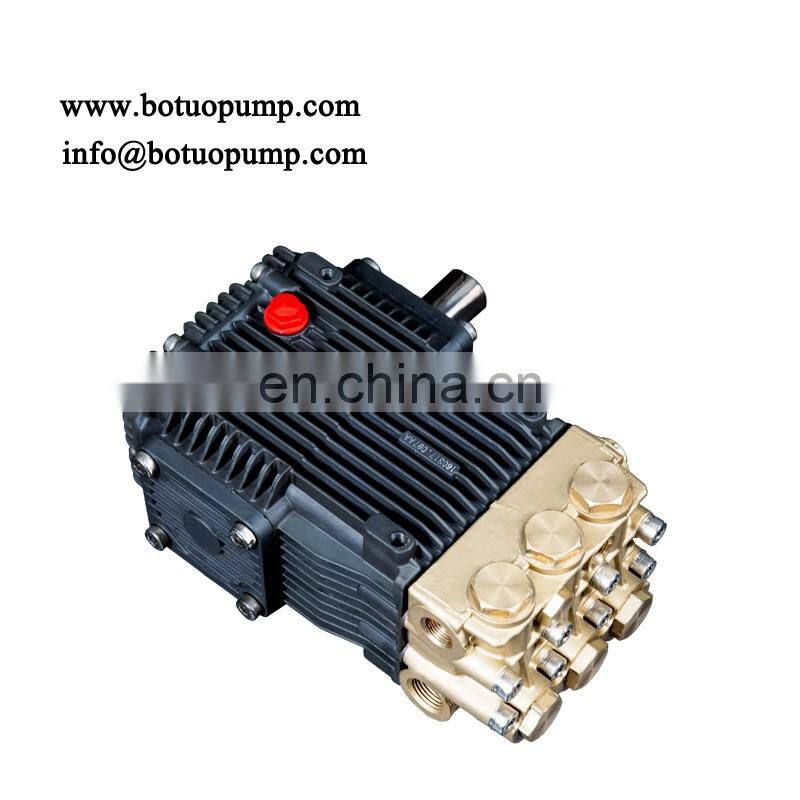

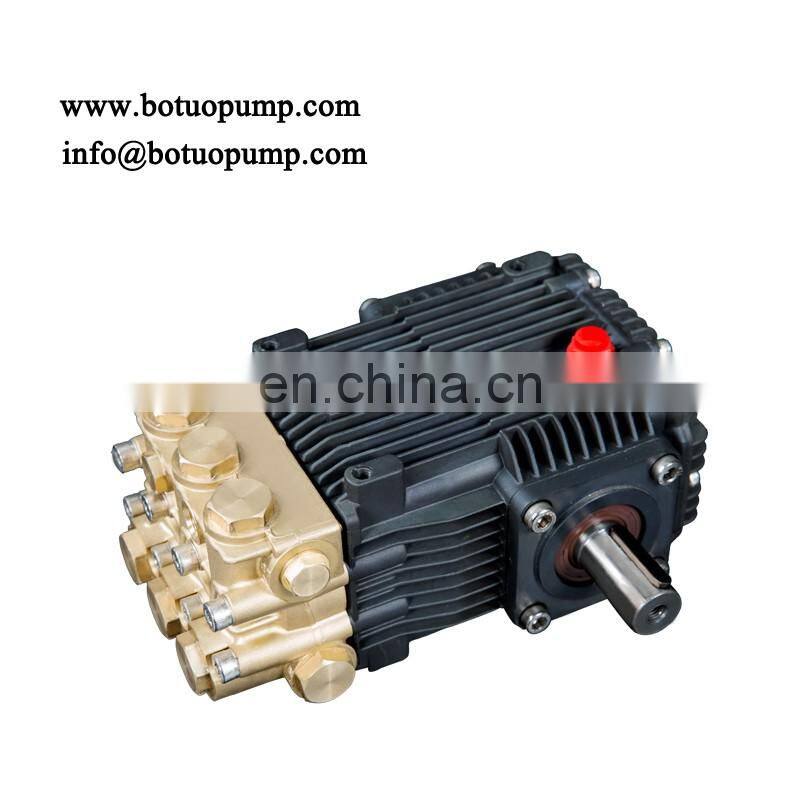

Triplex Car Wash High Pressure Water Pump
Car Wash High Pressure Water Pumps is designed for varieties of high pressure cleaning applications. The construction of the pump has die-cast crankcase, forged brass head, the internal components include solid ceramic-coated plungers, tapered roller bearing, one-piece connecting rod, and stainless steel checking valves.
The pump has the options of gearbox , belt drive, or coupling drive with electric motor, or gasoline, diesel engine
TK-C Version Dia 28mm pumps are self priming as it can draw liquid from a level below the suction flange even if the suction pipe is not evacuated. Plunger pumps are not tolerant to solid particles. Here, pistons are reciprocated using crankshaft, not cam type mechanism. Pressure Jet industrial high pressure triplex plunger pumps are positive displacement Triplex plunger pumps. In a reciprocating pump, a volume of liquid is drawn into the cylinder through the suction valve on the intake stroke and is discharged under positive pressure through the outlet valves on the discharge stroke. Flow rate of pump is directly proportional to its SPM (Strokes per minute). Pressure Jet Triplex plunger pumps have three synchronized plungers that discharge liquids at high pressure with minimum pulsation. Our high pressure triplex plunger pumps include both industrial triplex piston and triplex plunger pump designs.
car washer
misting machine
Agriculture & Food Processing
Misting, Cooling & Fogging
Commercial Contractor Cleaning
About us
1, rigorous work attitudestable,More than 20 years of manufacturing experience

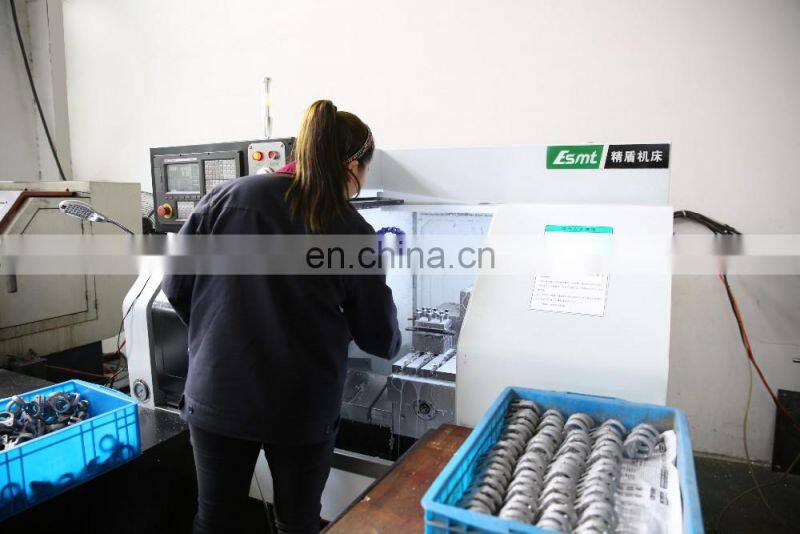

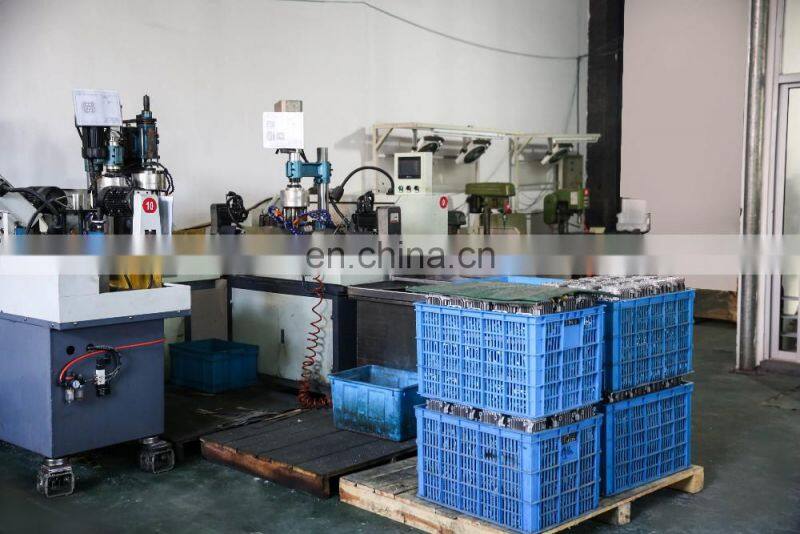

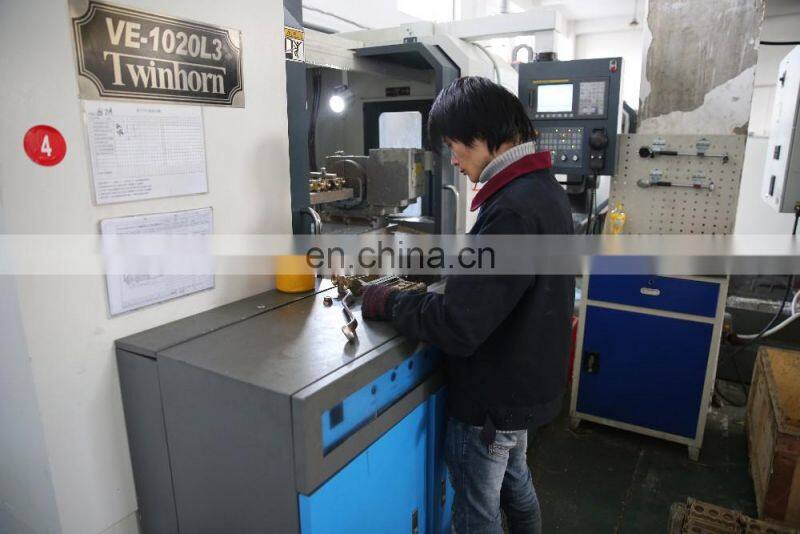

Equipment & technology
2, Only sophisticated manufacturing equipment can produce high quality Pump
Service
3, product quality , supply, the good faith management
