40CDLF8 304Stainless Steel Vertical Multistage centrifugal pump

FOB Price

USD $115 - $4500 / Piece

1 Piece(Min.Order)

Supply Ability 200 Piece / Pieces per Month
Port ningbo
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	WENZHOU MEILIAN PUMP&VALVE CO.,LTD	Place of Origin:	China	Model Number:	CDLF
Application:	Other, water pump	Power:	Electric	Usage:	Water
Theory:	Centrifugal Pump	Standard or Nonstandard:	Standard	Structure:	Multistage Pump
Pressure:	High Pressure

Product Description

vertical multistage pump

CDLF stainless steel high head good price price vertical multistage centrifugal pump

Introduction:

1.CDLF stainless steel high head good price price vertical multistage centrifugal pump is a kind of vertical non self-priming multistage centrifugal pump, which is driven by a standard electric motor.

2. It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid, while QDLF is suitable for slightly corrosive liquid.

3. Used to clean, non-flammable and non-explosive liquid containing no solid granules and fibers.

Main Application:

Water supply: Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.
Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, firefighting system.
Industrial liquid conveying: Cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose, acids and alkali.
Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.
Irrigation: Farmland irrigation, spray irrigation, dripping irrigation.

Product details:

Working Principle:	Centrifugal, Multi-stage
Main applications:	Water
Driver:	Electric motor
Power Specs:	220V/380/415V 3phase; 220/240V 1phase; 50hz/60hz,etc
Max.permissible fluid temperature:	80℃/120°C(hot water type)
Type of connection:	Flange connection
Installation position:	Vertical
Impeller/diffuser/inducer/shaft mateiral:	Stainless steel 304 or 316
Shaft seal type:	Mechanical seal
Maximum drive rating:	110KW(150HP)
Maximum caliber:	150mm(6inch)
Maximum dischrage-side pressure:	2.55MPa(25.5bar)
Maximum head:	255m(836.4ft)
Flow rate range:	1-240m3/h(4.4-1056US.GPM)

Performance data:

CDL2/CDLF2
Model	Power (KW)	Capacity (m3/h)	1	1.2	1.6	2	2.4	2.8	3.2	3.5
QDL2-20	0.37	Head (m)	18	17	16	15	13	12	10	8
QDL2-30	0.37		27	26	24	22	20	18	15	12
QDL2-40	0.55		36	35	33	30	26	24	20	16
QDL2-50	0.55		45	43	40	37	33	30	24	20
QDL2-60	0.75		53	52	50	45	40	36	30	24
QDL2-70	0.75		63	61	57	52	47	41	35	28
QDL2-90	1.1		80	78	73	67	61	54	45	37
QDL2-110	1.1		98	95	89	82	73	64	54	44
QDL2-130	1.5		116	114	106	98	89	78	65	52
QDL2-150	1.5		134	130	123	112	10	90	73	60
QDL2-180	2.2		161	157	148	136	121	108	91	76
QDL2-220	2.2		197	192	180	165	148	130	110	90
QDL2-260	3		232	228	214	198	179	158	130	110
QDL4/QDLF4
Model	Power (KW)	Capacity (m3/h)	1.5	2.0	3.0	4.0	5.0	6.0	7.0	8.0
QDL4-20	0.37	Head (m)	19	18	17	15	13	10	8	6
QDL4-30	0.55		28	27	26	24	20	18	13	10
QDL4-40	0.75		38	36	34	32	27	24	19	13
QDL4-50	1.1		47	45	43	40	34	31	23	17
QDL4-60	1.1		56	54	52	48	41	37	28	20
QDL4-80/7	1.5		66	63	61	56	48	43	33	24
QDL4-80	1.5		74	72	70	64	55	50	38	27
QDL4-100	2.2		96	90	87	81	71	62	48	34
QDL4-120	2.2		114	108	104	95	85	75	58	41
QDL4-160/14	3.0		136	126	122	112	101	89	68	48
QDL4-160	3.0		152	144	140	129	115	101	78	55
QDL4-190	4.0		183	171	168	153	137	122	93	67
QDL4-220	4.0		211	200	192	178	160	138	108	79
QDL8/QDLF8
Model	Power (KW)	Capacity (m3/h)	5	6	7	8	9	10	11	12
QDL8-20	0.75	Head (m)	21	20	19	18	17	16	15	14
QDL8-30	1.1		31	30	29	28	26	24	23	20
QDL8-40	1.5		41	40	39	37	35	32	30	27
QDL8-50	2.2		52	50	48	46	44	41	37	34
QDL8-60	2.2		62	60	58	55	53	49	45	41
QDL8-80	3.0		83	80	78	74	70	65	60	54
QDL8-100	4.0		104	100	97	92	88	80	75	68
QDL8-120	4.0		125	120	116	110	105	97	90	81
QDL8-140	5.5		146	140	136	129	123	113	105	95
QDL8-160	5.5		166	160	155	147	140	130	120	108
QDL8-180	7.5		187	180	175	166	158	146	135	122
QDL8-200	7.5		208	200	194	185	175	162	150	135
QDL16/QDLF16
Model	Power (KW)	Capacity (m3/h)	8	10	12	14	16	18	20	22
QDL16-30/2	2.2	Head (m)	28	27	26	25	23	21	19	17
QDL16-30	3.0		42	41	39	37	35	32	29	26
QDL16-40	4.0		56	54	52	50	47	44	38	34
QDL16-50	5.5		69	68	65	62	59	54	48	43
QDL16-60	5.5		83	81	78	75	70	64	58	52
QDL16-70	7.5		97	95	92	87	82	75	68	61
QDL16-80	7.5		111	108	105	100	94	86	77	70
QDL16-100	11		139	136	131	125	118	108	97	87
QDL16-120	11		167	163	157	150	141	129	116	105
QDL16-140	15		194	190	184	175	165	151	136	122
QDL16-160	15		222	217	210	200	189	173	155	140
QDL32/QDLF32
Model	Power (KW)	Capacity (m3/h)	16	20	24	28	32	36	40
QDL32-20	4.0	Head (m)	36	34	32	29	27	23	18
QDL32-30	5.5		54	51	48	44	40	35	27
QDL32-40	7.5		72	69	65	59	53	47	37
QDL32-50	11		90	86	81	74	67	59	47
QDL32-60	11		108	104	97	90	81	72	57
QDL32-70	15		126	121	113	105	95	85	67
QDL32-80	15		144	138	130	120	109	97	77
QDL32-90	18.5		162	156	147	136	124	109	88
QDL32-100	18.5		182	173	164	152	138	122	98
QDL32-120	22		218	208	196	184	167	147	120
QDL32-140	30		255	242	229	216	196	172	142
QDL85/QDLF85
Model	Power (KW)	Capacity (m3/h)	50	60	70	80	85	90	100	110
QDL85-10-1	5.5	Head (m)	22	19	17	16	14	13	10	6
QDL85-10	7.5		25	24	22	21	20	19	16	12
QDL85-20-2	11		41	39	36	32	30	28	22	15
QDL85-20	15		53	50	47	44	41	40	36	30
QDL85-30-2	18.5		68	65	60	55	52	49	41	32
QDL85-30	22		81	77	72	67	64	62	55	48
QDL85-40-2	30		98	93	87	80	75	72	62	50
QDL85-40	30		110	105	100	92	86	84	76	66
QDL85-50-2	37		126	120	113	104	98	93	81	68
QDL85-50	37		139	131	124	115	110	106	94	83
QDL85-60-2	45		155	148	139	129	122	117	102	86
QDL85-60	45		168	160	150	141	134	130	117	103

Parameter table above is only a part of whole. For more(160m3/h....240m3/h), please contact us directly.

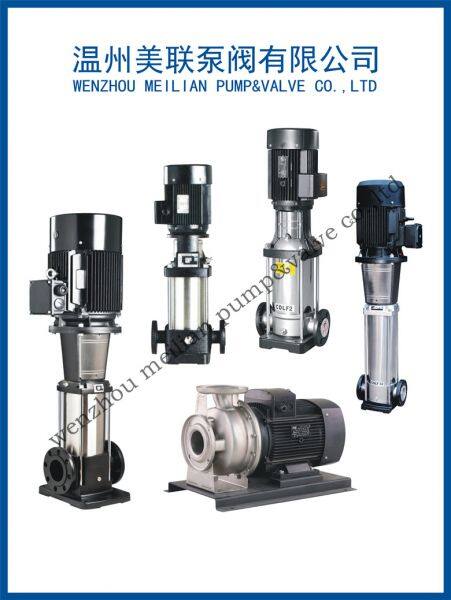

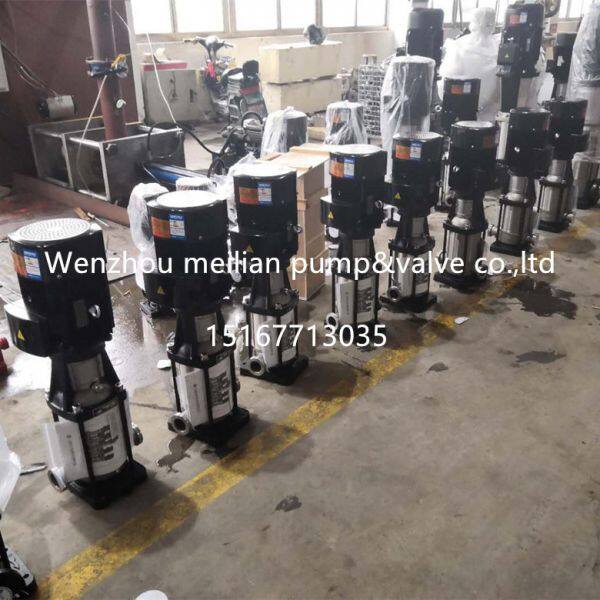

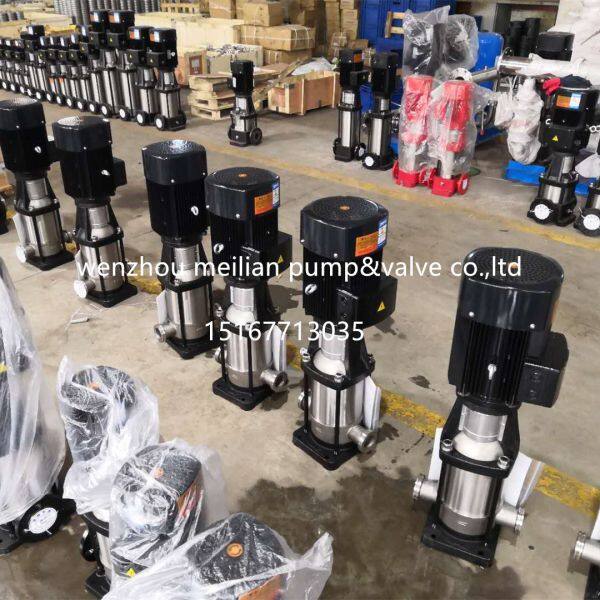

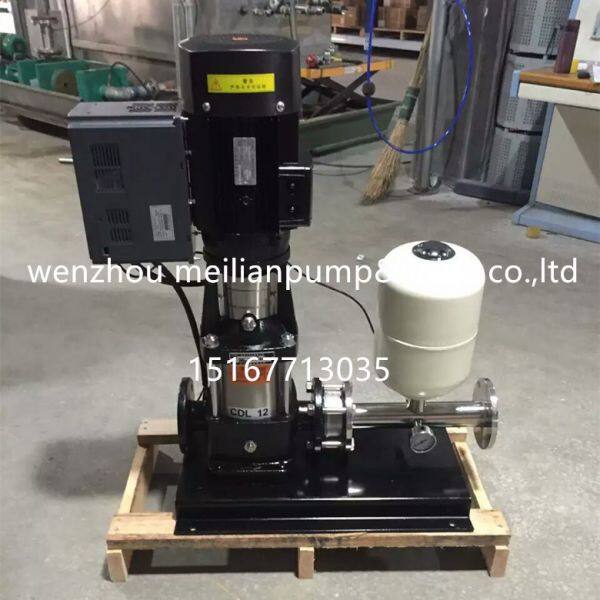

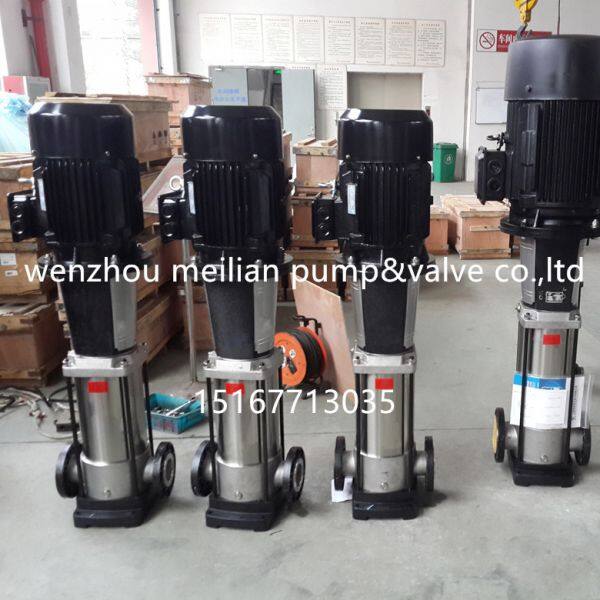

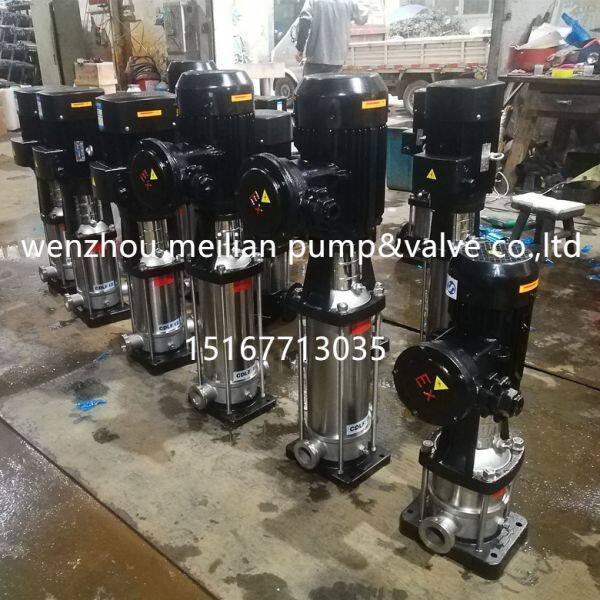

Pictures:

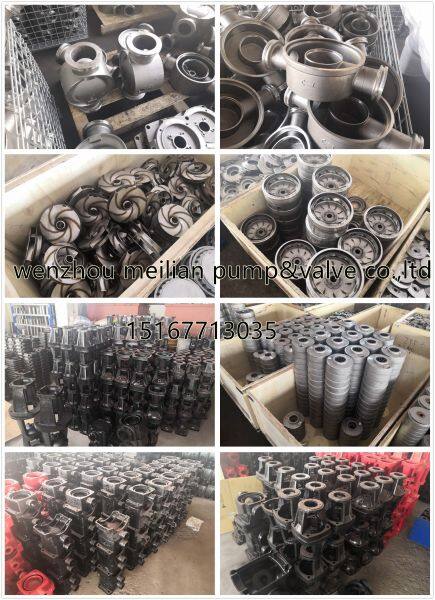

Excellent product made of carefully selected high-quality materials:
