Home > Products > Angular Contact Ball Bearings > HSS71900-C-T-P4S HSS71901-C-T-P4S HSS71902-C-T-P4S HSS 71903 High Precision Spindle Bearing Angular Contact Bearing

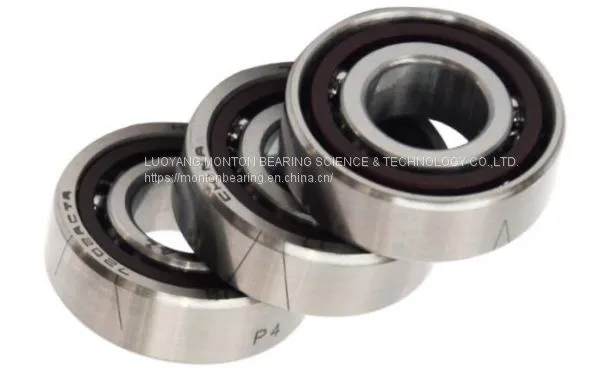

HSS71900-C-T-P4S HSS71901-C-T-P4S HSS71902-C-T-P4S HSS 71903 High Precision Spindle Bearing Angular Contact Bearing
- 50000 Piece / Pieces per Month
- Shanghai or Beijing
- T/T L/C Credit Card PayPal Cash Escrow Other
- 1 days
- 80BNC90/HC71916C.T.P4S spindle bearings
- Spindle Bearings 85BTR10ETYNDBLP4A
- HC71901C.T.P4S.UL Precision Spindle Bearings for Preload Arrangement: Ceramic balls
- HCS7000E.T.P4S.UL Precision Spindle Bearings with Solid Rings: Ceramic balls
- 71807ACP4SUL High Precision Spindle Angular Contact Ball Bearing For Railway Vehicles
- Precision Spindle Bearings: Ceramic balls HC7000E.T.P4S.UL
Product Details
Brand Name: | monton | Place of Origin: | China | Model Number: | HSS71901-C-T-P4S |
Number of Row: | Single Row | Seals Type: | open or sealed | Precision Rating: | 50000r/min |
Outside Diameter: | 10, 300 | Bore Size: | 5, 200 |
Product Description
Product Description
Super precision angular contact ball bearing is also called Spindle bearing. Standard contact angle is 15 (suffix C), 30(suffix A )and 40(suffix B). The bigger contact angle means it has bigger axial load capacity. The smaller contact angle means it is more available for high speed. Angular contact ball bearing is pre- loaded when fixed in the spindle. That is to improve its rigidity and rotate precision. 1.Single row angular contact ball bearing 2.Double row angular contact ball bearing
Product Specification/Models
71xx 72xx .... 79xx 32xx 33xx 52xx 53xx
Sizes | Model | |||
d | D | B | ||
8 | 22 | 7 | H708C.T.P4A.2RZ | HSS708C.T.P4S |
8 | 22 | 7 | H708AC.T.P4A.2RZ | HSS708E.T.P4S |
9 | 24 | 7 | H709C.T.P4A.2RZ | HSS709C.T.P4S |
9 | 24 | 7 | H709AC.T.P4A.2RZ | HSS709E.T.P4S |
10 | 22 | 6 | H71900C.T.P4A.2RZ | HSS71900C.T.P4S |
10 | 22 | 6 | H71900AC.T.P4A.2RZ | HSS71900E.T.P4S |
10 | 26 | 8 | H7000C.T.P4A.2RZ | HSS7000C.T.P4S |
10 | 26 | 8 | H7000AC.T.P4A.2RZ | HSS7000E.T.P4S |
12 | 24 | 6 | H71901C.T.P4A.2RZ | HSS71901C.T.P4S |
12 | 24 | 6 | H71901AC.T.P4A.2RZ | HSS71901E.T.P4S |
12 | 28 | 8 | H7001C.T.P4A.2RZ | HSS7001C.T.P4S |
12 | 28 | 8 | H7001AC.T.P4A.2RZ | HSS7001E.T.P4S |
15 | 28 | 7 | H71902C.T.P4A.2RZ | HSS71902C.T.P4S |
15 | 28 | 7 | H71902AC.T.P4A.2RZ | HSS71902E.T.P4S |
15 | 32 | 9 | H7002C.T.P4A.2RZ | HSS7002C.T.P4S |
15 | 32 | 9 | H7002AC.T.P4A.2RZ | HSS7002E.T.P4S |
17 | 30 | 7 | H71903C.T.P4A.2RZ | HSS71903C.T.P4S |
17 | 30 | 7 | H71903AC.T.P4A.2RZ | HSS71903E.T.P4S |
17 | 35 | 10 | H7003C.T.P4A.2RZ | HSS7003C.T.P4S |
17 | 35 | 10 | H7003AC.T.P4A.2RZ | HSS7003E.T.P4S |
20 | 37 | 9 | H71904C.T.P4A.2RZ | HSS71904C.T.P4S |
20 | 37 | 9 | H71904AC.T.P4A.2RZ | HSS71904E.T.P4S |
20 | 42 | 12 | H7004C.T.P4A.2RZ | HSS7004C.T.P4S |
20 | 42 | 12 | H7004AC.T.P4A.2RZ | HSS7004E.T.P4S |
25 | 42 | 9 | H71905C.T.P4A.2RZ | HSS71905C.T.P4S |
25 | 42 | 9 | H71905AC.T.P4A.2RZ | HSS71905E.T.P4S |
25 | 47 | 12 | H7005C.T.P4A.2RZ | HSS7005C.T.P4S |
25 | 47 | 12 | H7005AC.T.P4A.2RZ | HSS7005E.T.P4S |
30 | 47 | 9 | H71906C.T.P4A.2RZ | HSS71906C.T.P4S |
30 | 47 | 9 | H71906AC.T.P4A.2RZ | HSS71906E.T.P4S |
30 | 55 | 13 | H7006C.T.P4A.2RZ | HSS7006C.T.P4S |
30 | 55 | 13 | H7006AC.T.P4A.2RZ | HSS7006E.T.P4S |
35 | 55 | 10 | H71907C.T.P4A.2RZ | HSS71907C.T.P4S |
35 | 55 | 10 | H71907AC.T.P4A.2RZ | HSS71907E.T.P4S |
35 | 62 | 14 | H7007C.T.P4A.2RZ | HSS7007C.T.P4S |
35 | 62 | 14 | H7007AC.T.P4A.2RZ | HSS7007E.T.P4S |
40 | 62 | 12 | H71908C.T.P4A.2RZ | HSS71908C.T.P4S |
40 | 62 | 12 | H71908AC.T.P4A.2RZ | HSS71908E.T.P4S |
40 | 68 | 15 | H7008C.T.P4A.2RZ | HSS7008C.T.P4S |
40 | 68 | 15 | H7008AC.T.P4A.2RZ | HSS7008E.T.P4S |
45 | 68 | 12 | H71909C.T.P4A.2RZ | HSS71909C.T.P4S |
45 | 68 | 12 | H71909AC.T.P4A.2RZ | HSS71909E.T.P4S |
45 | 75 | 16 | H7009C.T.P4A.2RZ | HSS7009C.T.P4S |
45 | 75 | 16 | H7009AC.T.P4A.2RZ | HSS7009E.T.P4S |
50 | 72 | 12 | H71910C.T.P4A.2RZ | HSS71910C.T.P4S |
50 | 72 | 12 | H71910AC.T.P4A.2RZ | HSS71910E.T.P4S |
50 | 80 | 16 | H7010C.T.P4A.2RZ | HSS7010C.T.P4S |
50 | 80 | 16 | H7010AC.T.P4A.2RZ | HSS7010E.T.P4S |
55 | 80 | 13 | H71911C.T.P4A.2RZ | HSS71911C.T.P4S |
55 | 80 | 13 | H71911AC.T.P4A.2RZ | HSS71911E.T.P4S |
55 | 90 | 18 | H7011C.T.P4A.2RZ | HSS7011C.T.P4S |
55 | 90 | 18 | H7011AC.T.P4A.2RZ | HSS7011E.T.P4S |
60 | 85 | 13 | H71912C.T.P4A.2RZ | HSS71912C.T.P4S |
60 | 85 | 13 | H71912AC.T.P4A.2RZ | HSS71912E.T.P4S |
60 | 95 | 18 | H7012C.T.P4A.2RZ | HSS7012C.T.P4S |
60 | 95 | 18 | H7012AC.T.P4A.2RZ | HSS7012E.T.P4S |
65 | 90 | 13 | H71913C.T.P4A.2RZ | HSS71913C.T.P4S |
65 | 90 | 13 | H71913AC.T.P4A.2RZ | HSS71913E.T.P4S |
65 | 100 | 18 | H7013C.T.P4A.2RZ | HSS7013C.T.P4S |
65 | 100 | 18 | H7013AC.T.P4A.2RZ | HSS7013E.T.P4S |
70 | 100 | 16 | H71914C.T.P4A.2RZ | HSS71914C.T.P4S |
70 | 100 | 16 | H71914AC.T.P4A.2RZ | HSS71914E.T.P4S |
70 | 110 | 20 | H7014C.T.P4A.2RZ | HSS7014C.T.P4S |
70 | 110 | 20 | H7014AC.T.P4A.2RZ | HSS7014E.T.P4S |
75 | 105 | 16 | H71915C.T.P4A.2RZ | HSS71915C.T.P4S |
75 | 105 | 16 | H71915AC.T.P4A.2RZ | HSS71915E.T.P4S |
75 | 115 | 20 | H7015C.T.P4A.2RZ | HSS7015C.T.P4S |
75 | 115 | 20 | H7015AC.T.P4A.2RZ | HSS7015E.T.P4S |
80 | 110 | 16 | H71916C.T.P4A.2RZ | HSS71916C.T.P4S |
80 | 110 | 16 | H71916AC.T.P4A.2RZ | HSS71916E.T.P4S |
80 | 125 | 22 | H7016C.T.P4A.2RZ | HSS7016C.T.P4S |
80 | 125 | 22 | H7016AC.T.P4A.2RZ | HSS7016E.T.P4S |
85 | 120 | 18 | H71917C.T.P4A.2RZ | HSS71917C.T.P4S |
85 | 120 | 18 | H71917AC.T.P4A.2RZ | HSS71917E.T.P4S |
85 | 130 | 22 | H7017C.T.P4A.2RZ | HSS7017C.T.P4S |
85 | 130 | 22 | H7017AC.T.P4A.2RZ | HSS7017E.T.P4S |
90 | 125 | 18 | H71918C.T.P4A.2RZ | HSS71918C.T.P4S |
90 | 125 | 18 | H71918AC.T.P4A.2RZ | HSS71918E.T.P4S |
90 | 140 | 24 | H7018C.T.P4A.2RZ | HSS7018C.T.P4S |
90 | 140 | 24 | H7018AC.T.P4A.2RZ | HSS7018E.T.P4S |
95 | 130 | 18 | H71919C.T.P4A.2RZ | HSS71919C.T.P4S |
95 | 130 | 18 | H71919AC.T.P4A.2RZ | HSS71919E.T.P4S |
95 | 145 | 24 | H7019C.T.P4A.2RZ | HSS7019C.T.P4S |
95 | 145 | 24 | H7019AC.T.P4A.2RZ | HSS7019E.T.P4S |
100 | 140 | 20 | H71920C.T.P4A.2RZ | HSS71920C.T.P4S |
100 | 140 | 20 | H71920AC.T.P4A.2RZ | HSS71920E.T.P4S |
100 | 150 | 24 | H7020C.T.P4A.2RZ | HSS7020C.T.P4S |
100 | 150 | 24 | H7020AC.T.P4A.2RZ | HSS7020E.T.P4S |
105 | 145 | 20 | H71921C.T.P4A.2RZ | HSS71921C.T.P4S |
105 | 145 | 20 | H71921AC.T.P4A.2RZ | HSS71921E.T.P4S |
105 | 160 | 26 | H7021C.T.P4A.2RZ | HSS7021C.T.P4S |
105 | 160 | 26 | H7021AC.T.P4A.2RZ | HSS7021E.T.P4S |
110 | 150 | 20 | H71922C.T.P4A.2RZ | HSS71922C.T.P4S |
110 | 150 | 20 | H71922AC.T.P4A.2RZ | HSS71922E.T.P4S |
110 | 170 | 28 | H7022C.T.P4A.2RZ | HSS7022C.T.P4S |
110 | 170 | 28 | H7022AC.T.P4A.2RZ | HSS7022E.T.P4S |
120 | 165 | 22 | H71924C.T.P4A.2RZ | HSS71924C.T.P4S |
120 | 165 | 22 | H71924AC.T.P4A.2RZ | HSS71924E.T.P4S |
120 | 180 | 28 | H7024C.T.P4A.2RZ | HSS7024C.T.P4S |
120 | 180 | 28 | H7024AC.T.P4A.2RZ | HSS7024E.T.P4S |
130 | 180 | 24 | H71926C.T.P4A.2RZ | HSS71926C.T.P4S |
130 | 180 | 24 | H71926AC.T.P4A.2RZ | HSS71926E.T.P4S |
