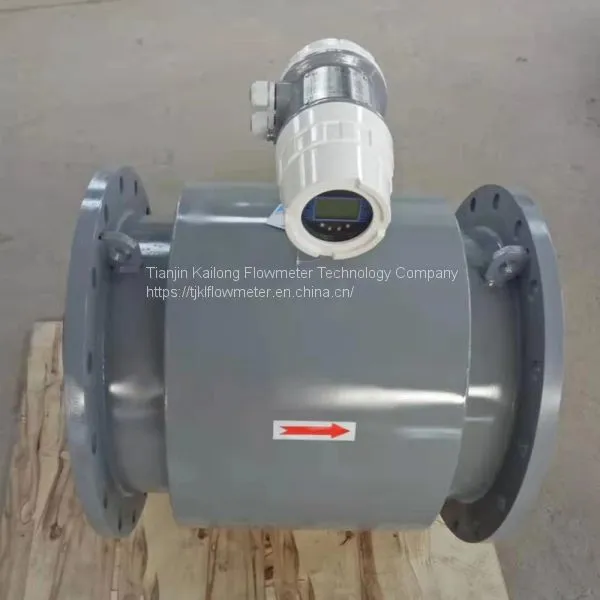

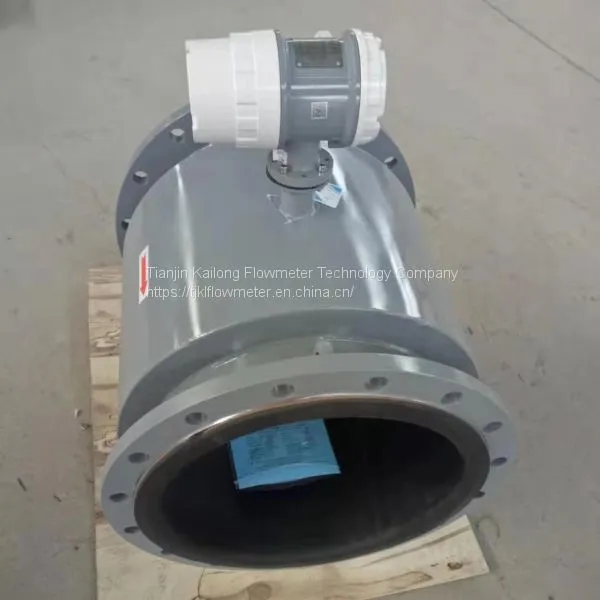

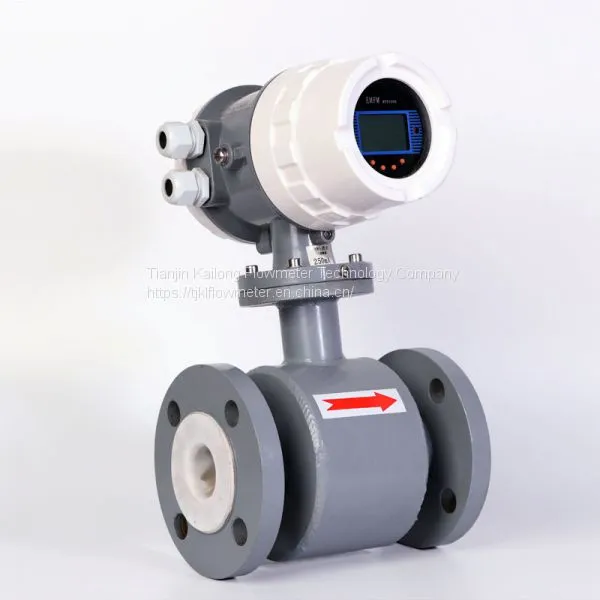

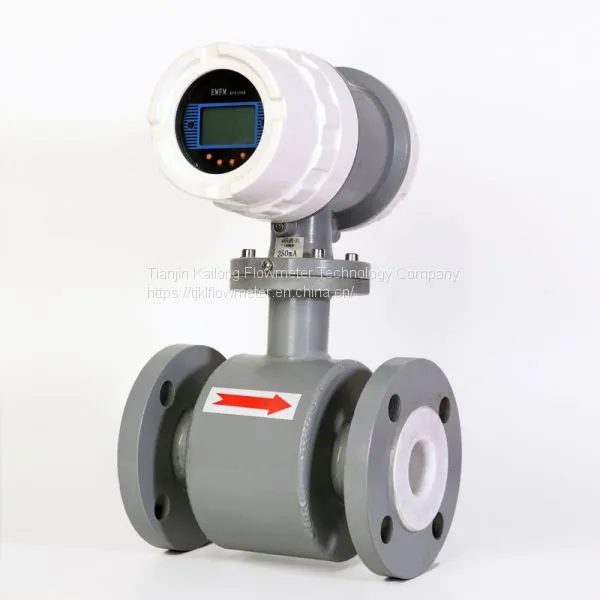

Integrated RS485 Electromagnetic Digital Flow Meter

US$ 300 - 500 MOQ: 1 Piece

Key Specifications

Brand Name:

Place of Origin:

China

Model Number:

LDG

Tianjin Kailong Flowmeter Technology Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

7 days

Brand Name KL

Place of Origin China

Model Number LDG

Integrated RS485 electromagnetic digital flow meter

It is suitable for widely used in iron and steel,electric power,petroleum,chemical,

coal,metallurgy,mineral,paper,water supply,food,medicine,and other industries.

Parameter of flowmeter:

Normal diameter	10-30000mm
Measure medium	all of liquids and liquid-solids whose electric conductance ratio is less that 5us/cm
velocity range	0.3-10m/s
Degree of accuracy	±0.5%R, ±1%R (
Environment temperature	Sensor	-25℃- +60℃
	Incorporate type	-10℃- +60℃
Output signal	4-20mA, Pulse/Frequency 2kHz(Default), 5KHz(Max)
Cable entry size	M181.5 M201.5
Supply voltage	110/220VAC (100-240VAC), 50Hz/60Hz; 24VDC±10%
Power dissipation	≤15VA
Digital communication	RS-485, support standard Mudbugs-RTU protocol; GPRS
Signal electrode and the ground electrode material	Stainless steel 316L, Hastelloy C, Hastelloy B, titanium, tantalum, platinum
Form of electric pole	Interpolating, extrapolating electrode need to customize
Number of electrodes	Standard configuration 3-4 electrodes(two measuring electrodes plus a grounding electrode),according to the caliber configuration
Flange standard	Conform to the international GB9119 (according to customer’s demand)
Connecting flange material	Standard carbon steel and stainless steel are needed to be customized
