thread connection turbine flow meter

FOB Price

300 - 2000 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Tianjin
Payment Terms:T/T L/C PayPal Other
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Place of Origin:

China

Model Number:

LWGY

Product Description

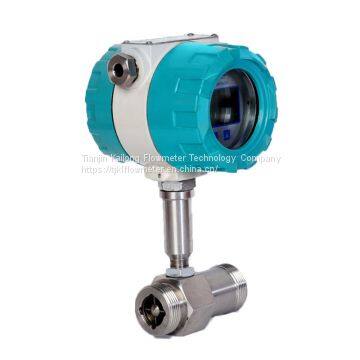

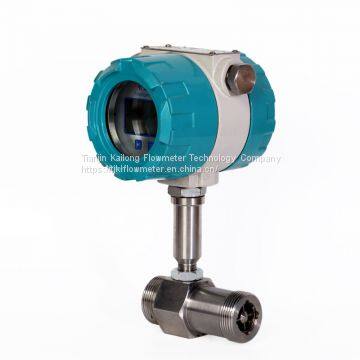

thread connection turbine flow meter

The sensor and the display instrument are used together to measure the liquid in the closed pipe which has no corrosive effect with stainless steel 1Cr18Ni9Ti, 2Cr13, corundum Al2O3 and hard alloy, and has no impurities such as fiber and particle. If it is matched with the display instrument with special function, quantitative control and over-alarm can be carried out. The explosion-proof type (ExmIIT6) of this product is selected, which can be used in the environment with explosion risk.

The sensor is suitable for medium with viscosity less than 5 * 10-6m2/s at operating temperature. For liquid with viscosity greater than 5 * 10-6m2/s, the sensor shall be used after solid liquid calibration.

If the user needs to use special form of sensor, can negotiate order, need explosion-proof sensor, explain in the order.

Parameter of turbine flowmeter

Implementation standards	Turbine flowmeter sensor(JB/T9246~19999)
Caliber&connection	Thread connection: DN4,6,10,15,20,25,32,40; Flange connection: DN (15,20,25,32,40)50,65,80,100,125,150,200; Clamp connection: DN4, 6, 10, 15, 20, 25, 32, 40, 50, 65, 80
Accuracy	±0.1%,±0.5%,±0.2%(Optional)
Range ratio	1:10;1:15;1:20
Sensor material	SS304 stainless steel,SS316(L)stainless steel,etc
Working environment	Medium temperature:-20℃~+120℃ Ambient temperature:-20℃~+20℃ Relative humidity:5%~90% Atmospheric pressure:86KPA~106KPA
Signal output	Pulse ,4~20ma
Communication output	RS485,HART
Working power supply	A:DC 24V lithium battery
Signal line interface	Basic type, Explosion proof type
Explosion proof grade	ExiaΙΙCT4 or ExdΙΙBT6
Protection level	IP65 or higher

If you have any need, welcome to inquiry.!!!

Email: tjklflowmeter at foxmail .com
