QJM of 1QJM,2QJM,3QJM Ball Piston Hydraulic Motor

QJM of 1QJM,2QJM,3QJM Ball Piston Hydraulic Motor thumbnail-1
QJM of 1QJM,2QJM,3QJM Ball Piston Hydraulic Motor thumbnail-2
QJM of 1QJM,2QJM,3QJM Ball Piston Hydraulic Motor thumbnail-3
QJM of 1QJM,2QJM,3QJM Ball Piston Hydraulic Motor photo-1
QJM of 1QJM,2QJM,3QJM Ball Piston Hydraulic Motor photo-2
QJM of 1QJM,2QJM,3QJM Ball Piston Hydraulic Motor photo-3
US$ 150 - 1,100 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Associated
Place of Origin:
Zhejiang, China
Model Number:
1QJM,2QJM,3QJM
Contact Supplier Request Quote Chat Now
Luomei Electric Technik Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Associated
Place of Origin Zhejiang, China
Model Number 1QJM,2QJM,3QJM
Type Hydraulic Motors

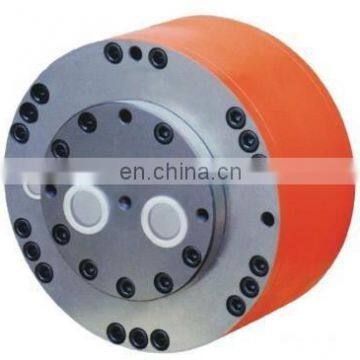

QJM of 1QJM,2QJM,3QJM ball piston hydraulic motor

1. Fixed displacement hydraulic motor
2. Radial sphenical piston motor with rotating shaft

3. Control Method: manual control with spool valve, manual control with screw or hydraulic control

4. Widely appplicable for hydraulic transmission system of mining machinery, heavy duty transportation equipment,metallurgy machinery, petroleum mining machinery,maritime deck machinery,machine tools,light industry,plastic machinery,drilling equipment etc.

5. Very competitive price

6. 1 year of warranty

7. Short delivery time

QJM of 1QJM,2QJM,3QJM ball piston hydraulic motor



Technical Specifications

Model

Displ.

Ml/r

Rated press. Mpa

Max. Press.

Mpa

Speed ranges

Rpm

Rated output torque

N.m

Max. Power

Kw

1QJM001-0.063Y

0.064

10

16

8-600

95

1.4

1QJM001-0.08Y

0.08

10

16

8-500

123

1.8

1QJM001-0.10Y

0.104

10

16

8-400

154

2.3

1QJM002-0.2Y

0.2

10

16

5-320

295

4.3

1QJM01-0.1Y

0.1

10

16

8-400

148

2.2

1QJM01-0.16Y

0.163

10

16

8-350

241

3.6

1QJM01-0.2Y

0.203

10

16

8-320

300

4.4

1QJM02-0.32Y

0.326

10

16

5-320

483

7.1

1QJM02-0.4Y

0.406

10

16

5-320

600

8.8

1QJM11-0.32Y

0.339

10

16

5-400

468

5.9

1QJM1A1-0.4Y

0.404

10

16

5-400

598

7.5

1QJM11-0.5Y

0.496

10

16

5-320

734

9.2

1QJM11-0.63Y

0.664

10

16

4-250

983

12.4

1QJM1A1-0.63Y

0.664

10

16

4-250

983

12.4

1QJM21-0.4Y

0.404

16

25

2-400

957

10

1QJM21-0.5Y

0.496

16

25

2-320

1175

12.3

1QJM21-0.63Y

0.664

16

25

2-250

1572

16.5

1QJM21-0.8Y

0.808

16

25

2-200

1913

20

1QJM21-1.0Y

1.01

10

16

2-160

1495

15.8

1QJM21-1.25Y

1.354

10

16

2-125

2004

21

1QJM21-1.6Y

1.65

10

16

2-100

2442

25.6

1QJM12-1.0Y

1

10

16

4-200

1480

18.6

1QJM12-1.25Y

1.33

10

16

4-160

1968

24.8

1QJM32-0.63Y

0.635

20

31.5

3-300

1880

19.8

1QJM32-0.8Y

0.808

20

31.5

3-250

2368

24.8

1QJM32-1.0Y

1.06

20

31.5

2-250

3138

33

1QJM32-1.25Y

1.295

20

31.5

2-200

3833

40.2

1QJM32-1.6Y

1.649

20

31.5

2-200

4881

51.2

1QJM32-2.0Y

2.03

16

25

2-200

4807

50.5

1QJM32-2.5Y

2.71

10

16

1-160

4011

42

1QJM32-3.2Y

3.3

10

16

1-125

4884

51.2

1QJM32-4.0Y

4

10

16

1-100

5920

62

1QJM42-2.0Y

2.11

20

31.5

1-250

6246

52.5

1QJM42-2.5Y

2.56

20

31.5

1-250

7578

63.5

1QJM42-3.2Y

3.24

10

16

1-200

4850

40.8

1QJM42-4.0Y

4

10

16

1-160

5920

50

1QJM42-4.5Y

406

10

16

1-125

6808

57

1QJM52-2.5Y

2.67

20

31.5

1-200

7903

66.2
