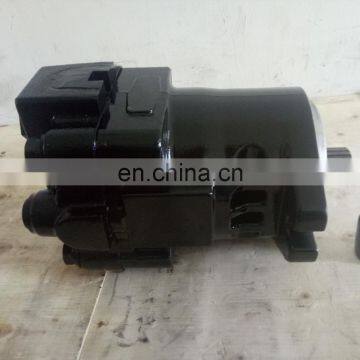

Sauer M46,MMF35,MMF44,SMF4-046,CS531,CS533,SAKAI SV500 Hydraulic Piston Motor

Sauer M46,MMF35,MMF44,SMF4-046,CS531,CS533,SAKAI SV500 hydraulic piston motor

1. Completely interchangeable with original

2. Series 40 motor loop flushing circuit option,provides continuous cooling and flushing oil flow to increase power capability and extend life

3. Maximum Pressures to 350 bar (5000 psi)

4. Continuous Operating Temperatures to 104° C (220° F)

5. Fixed displacement axial piston motor

6. Those motor are used for CATERPILLAR, SAKAI,BOBCAT vibratory roller as vibratory motor

7. Rear port type: inlet and outlet on the rear back, 2 drain ports on the rear, housing have drain port

8. Side port type: inlet and outlet on the side port, drain port on the side, housing no drain port

9. 13 and 15 teeth available for the spline shaft

10. Very comeptitive price

11. 1 year of warranty

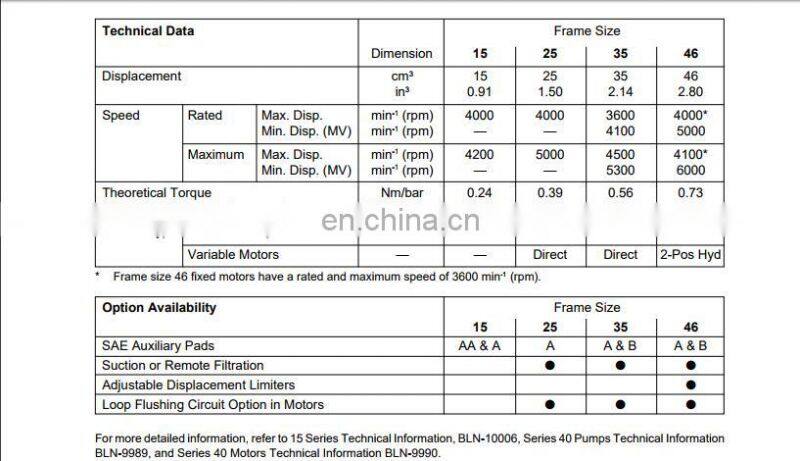

Technical Specifications
