single-jet brass water flow meter Calibration Test Bench
LS-3B 15-25Double Series Manual Water Meter Test Bench
Performance
1).Test quantity:
(1).DN15 10*2;DN20 8*2;DN25 6*2
(2).Calibrate Q3:DN15 5*2;DN20 5*2;DN25 5*2
(3).Calibrate Q4: Calibrate 1 piece in same time
2).Accuracy:≤0.2%
Component Part

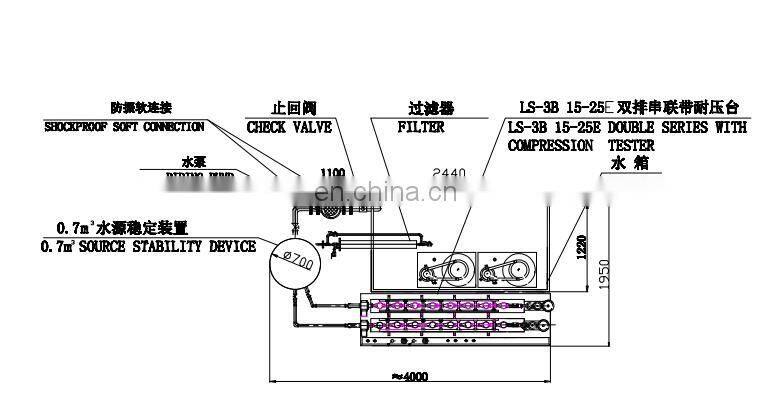

1).LS-3B 15-25Double Series with Compression Tester With 1 set 15-25 Straight Tube
(1).Measuring device is 4 double gourd structures,SS304 material
(2).Rotor flowmeter group, with six flowmeter (3 pieces each set).
(3).Work table and water bucket material is 304 stainless steel plate, the thickness of 1.5mm. Integral pressing forming
(4).Telescopic clamp meter device made by copper and stainless steel,travel≥60mm, regard water meter calibration device as source

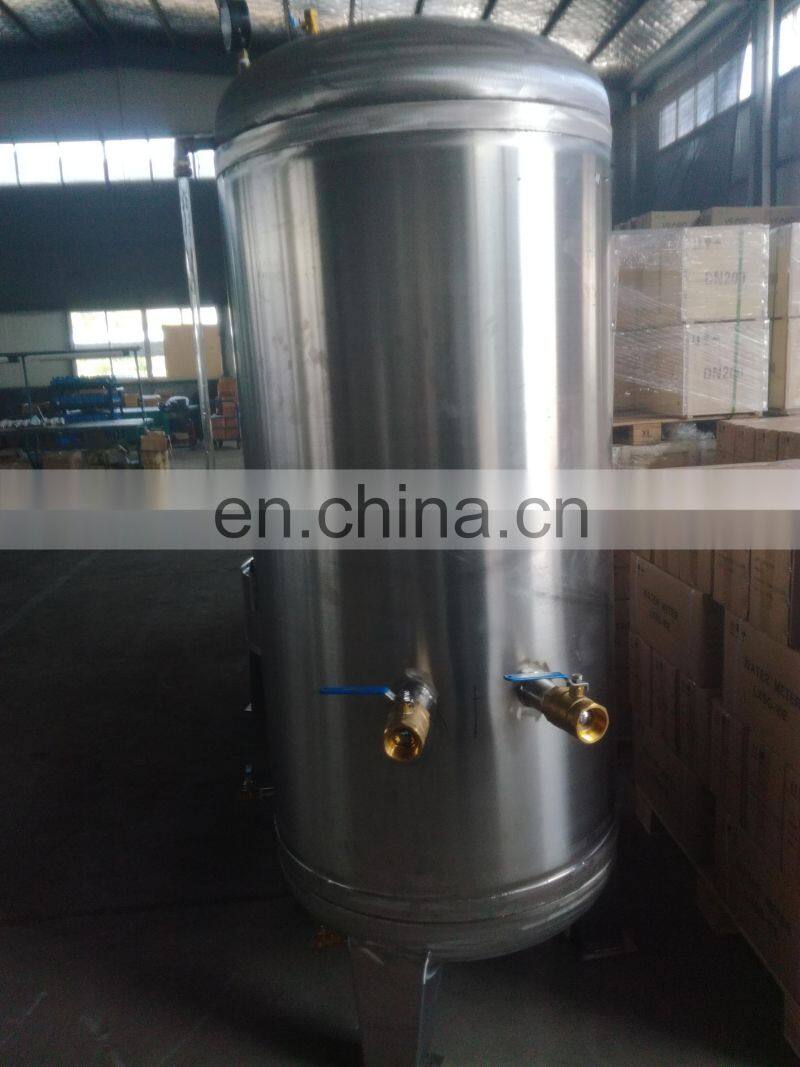

2).0.7CBM Source Stability Device. SS304 Material, thickness of 3mm.
3).Stainless Steel Water Tank 2440x1220x400mm SS304 Material, thickness of 1.5mm.
4).DN100 Filter
5).Piping Pump (support variety of pumps,could choose in your country)
6).Stainless Steel Pipe Fittings include Shockproof Soft Connection,flange and valve (pump to tank to source stability device to water meter tester)
7).Motor: 5.5KW. 380V, 3 phase, 50Hz.
Size and Weight
1).Size:4000mm*1950mm*2150mm
2).Weight:1100KGS
After-sale service
1).Warranty Period: 1 year
2).Install Assistant
3).Extra set of wearing parts
Our factory has many test bench types to tast any kind of water meter.
Packaging Detail: Pallets without fumigation or wooden box
Company Information:
Our factory build up since 1966, with more than 50 years experience in the line for water meter technology and manufacture. We provide OEM services for many famous brand, from German and Italy, for example, Zenner and B Meters. We also export the mechanism and spare parts for many countries, like Egypt, Turkey and so on. So we have enough confidence to believe that our product can meet with your request.
Warranty
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date
of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return
to the SH-MECH Meters.
Technical data conform to international standard ISO 4064, and we have more water meter types,such as:
