China supplier different types dry-dial mechanical single jet water meter
All water meter follow the ISO 4064 standard.
The type
Brass body 15mm - 40mm (1/2"-1-1/2")
Plastic body 15mm - 20mm (1/2"-3/4")

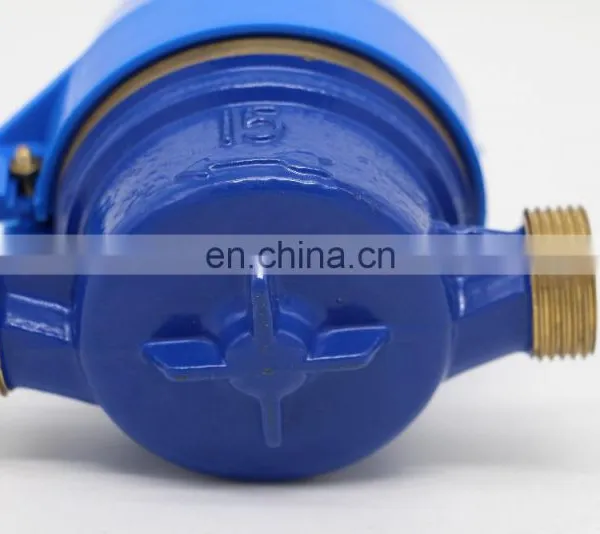

Pictures
The details
5/8 wheels
Application
--Measuring the volume of cold potable water passing through the pipeline.
Feature
--Single-jet, dry-dial, free rotating register, small in size and light in weight;
--Magnetic drive, Resistance to exterior magnet interference,
--keep the reading clear in a long term service;
Note
--Measuring accuracy conform to ISO 4064 class B standard..
--Available with different length on request. Available in hot water meter on request.
Working condition
--Water temperature: 0.1℃~40℃ ( 0.1℃~90℃ for hot water meter)
--Water pressure : ≤1.0Mpa

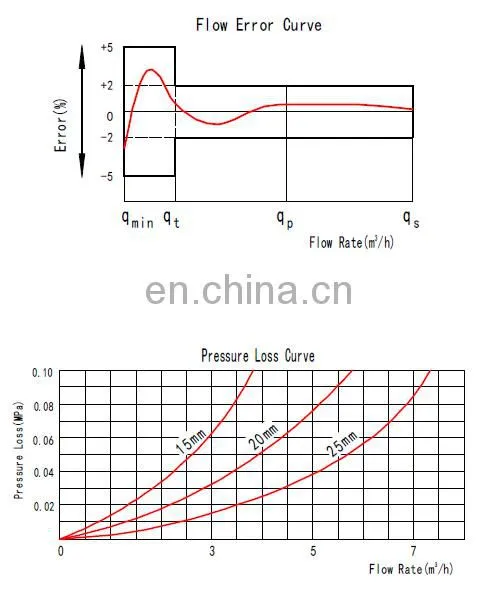

Maximum Permissible Error
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%
(2) in the upper zone from qt inclusive up to and including qs is ±2%
Hot water meter ±3%

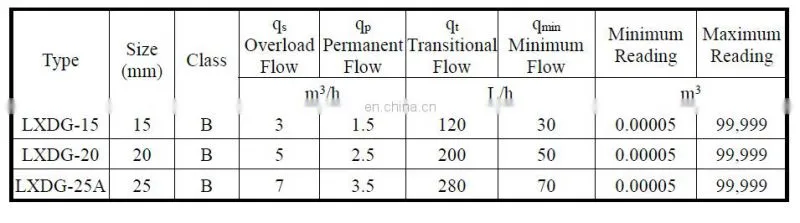

Main Technical Specifications

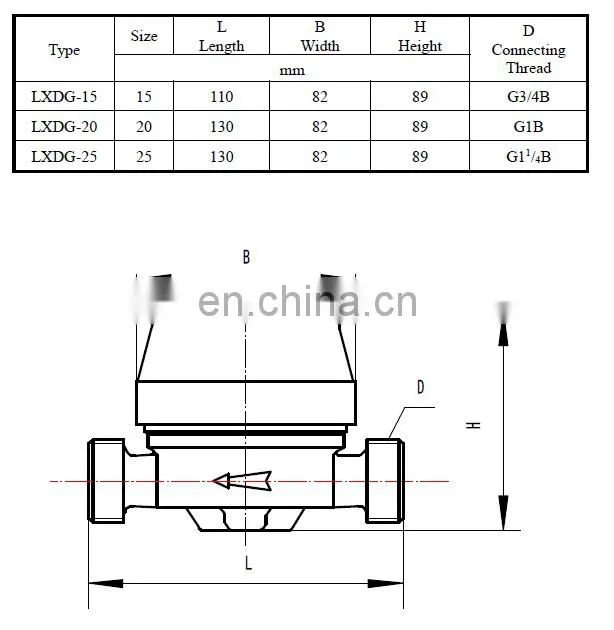

Dimensions
Packing & Delivery
Packing Details:Packing in carton or wodden
Delivery Detail:30 days
inner packing:
outer packing
