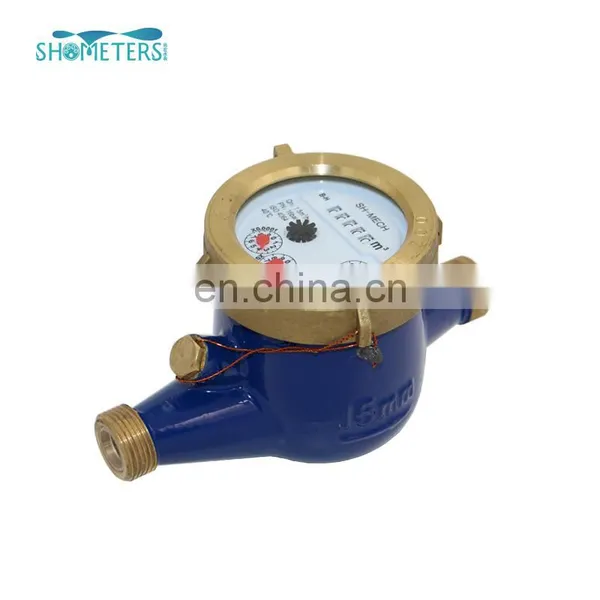

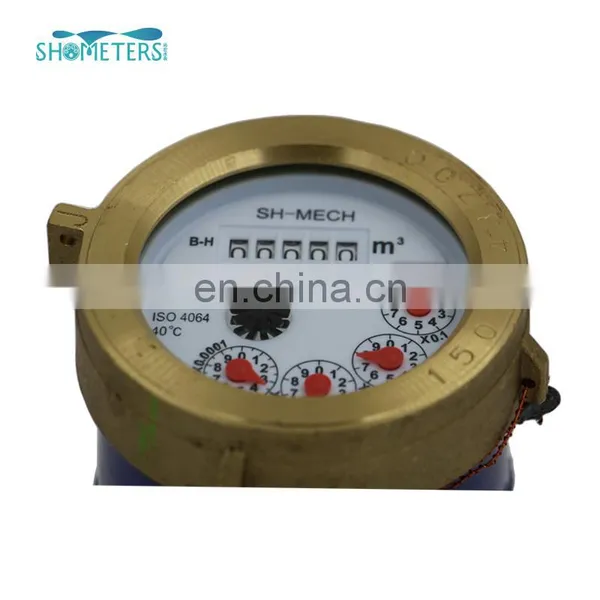

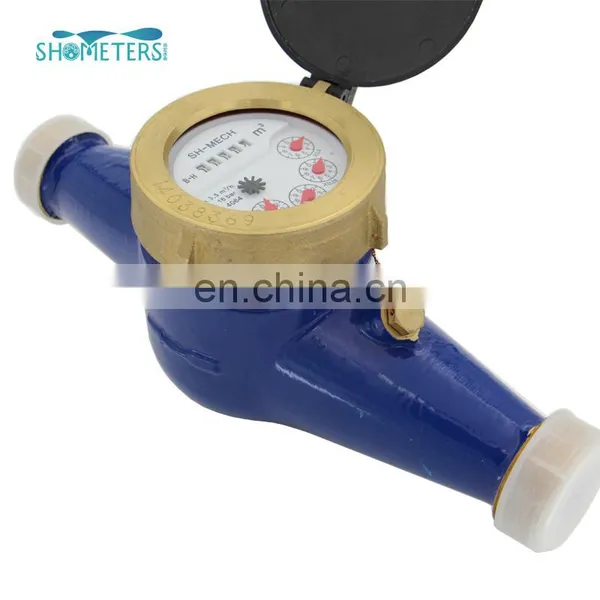

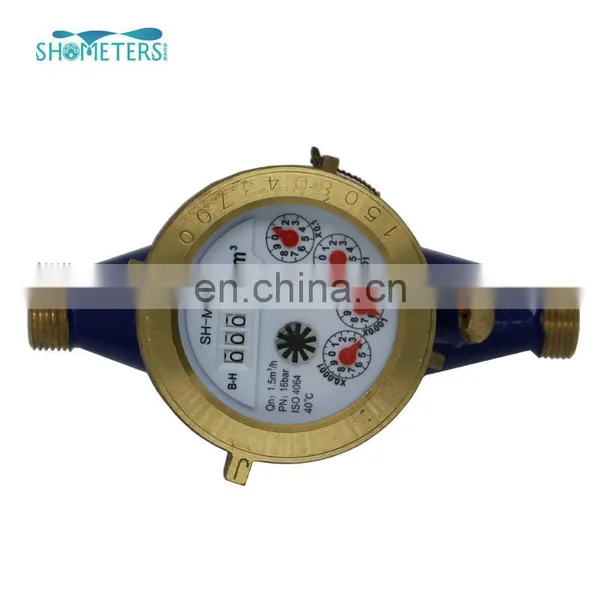

25mm dry type class B 3/4 inch brass body multi jet water flow meter
The type
Brass body 15mm - 50mm (1/2"-2") Plastic body 15mm - 50mm (1/2"-2")
cast Iron body 15mm - 50mm (1/2"-2") SS body 15mm - 50mm (1/2"-2")
The details
Two kinds of connections
Features
· Magnetic Drive, Lower transmission resistance.
· Magnetic shield, for external magnetic field protection.
· Sealed dry register ensures long time clear reading.
· External regulating device.
Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.
Standards Compliance
Technical data conform to international standard ISO 4064.
Optional Features
· Register sealed type: Dry type; Semi-dry type; Super-dry type.
· Accuracy: R=80 ; 100; 125; 160.
· Size: 15~50mm.
· Cold / hot water.
· Non return valve.
· Reed switch option.
· Several lengths and connections availavle on request.
· Thread end type: BSP / NPT.
Working Conditions
· Water temperature: 0.1℃~40℃ for cold water meter.
· 0.1℃~90℃ for hot water meter.
· Water pressure : ≤1.6Mpa (16 bar).
Maximum Permissible Error
· In the lower zone from qmin inclusive up to but excluding qt is ±5%.
· In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for hot water meter.
Overall Dimension And Weight
Technical Data
Pulse Output Option
Packing & Delivery
Packing Details:Packing in carton or wodden
Delivery Detail:30 days
