domestic 1L Factory supply MJ water flow meter with pulses counter
- 100000 Piece / Pieces per Month
- SHANG HAI
- T/T Credit Card
- ISO 9001 1L forged brass multi jet water flow meter with pulses counter
- 10L pulses counter brass multi jet heat resistant water flow meter
- ISO 4064 modbus plastic Complete Electronical Water flow Metering parts
- vertical installation magnet stop Brass Mult jet water flow meter DN15
- plastic body Zero error Vane Wheel multi Jet Water Meter for south Africa
- 1 inch brass body multi jet cold mechanical water meter manufacture
Product Details
Brand Name: | SH-MECH | Place of Origin: | Jiangsu, China | Model Number: | LXSG |
Packaging Details
CARTON OR WOODEN
Product Description

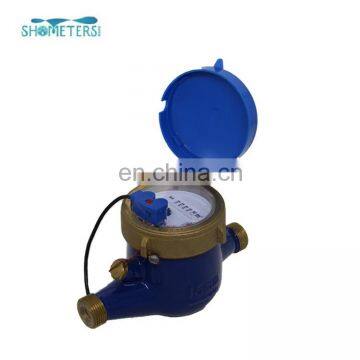

domestic 1L Factory supply MJ water flow meter with pulses counter

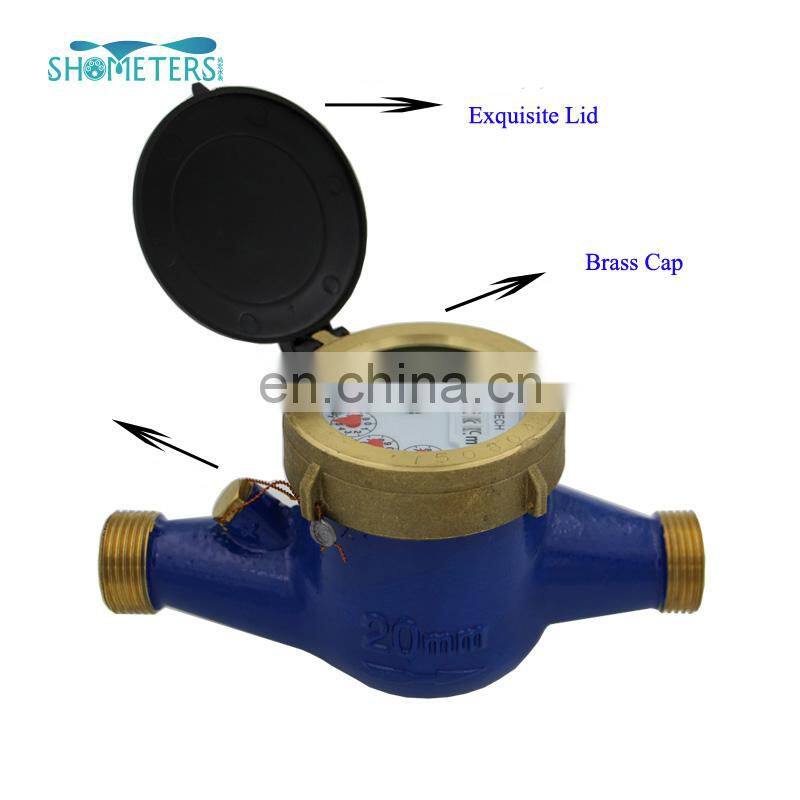

Products Details:
Each meter has a unique ID number.

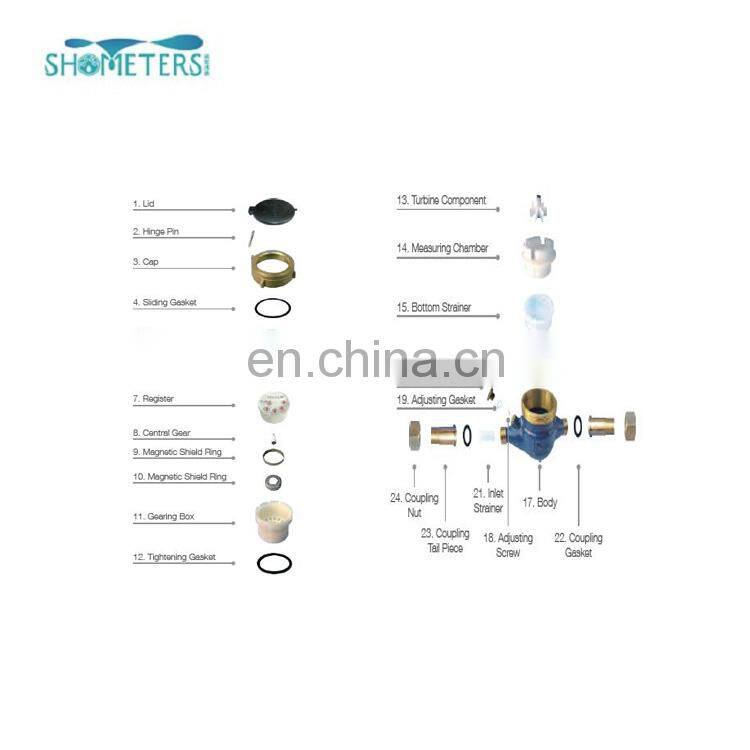

Products Parts:
Features:
· Magnetic Drive, Lower transmission resistance.
· Magnetic shield, for external magnetic field protection.
· Sealed dry register ensures long time clear reading.
· External regulating device.
Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.
Working Conditions:
· Water temperature: 0.1℃~40℃ for cold water meter.
· 0.1℃~90℃ for hot water meter.
· Water pressure : ≤1.6Mpa (16 bar).
Maximum Permissible Error:
· In the lower zone from qmin inclusive up to but excluding qt
is ±5%.
· In the upper zone from qt inclusive up to and including qs is
±2%; ±3% for hot water meter.
Optional Features:
· Register sealed type: Dry type; Semi-dry type; Super-dry type.
· Accuracy: R=80 ; 100; 125; 160.
· Size: 15~50mm.
· Cold / hot water.
· Non return valve.

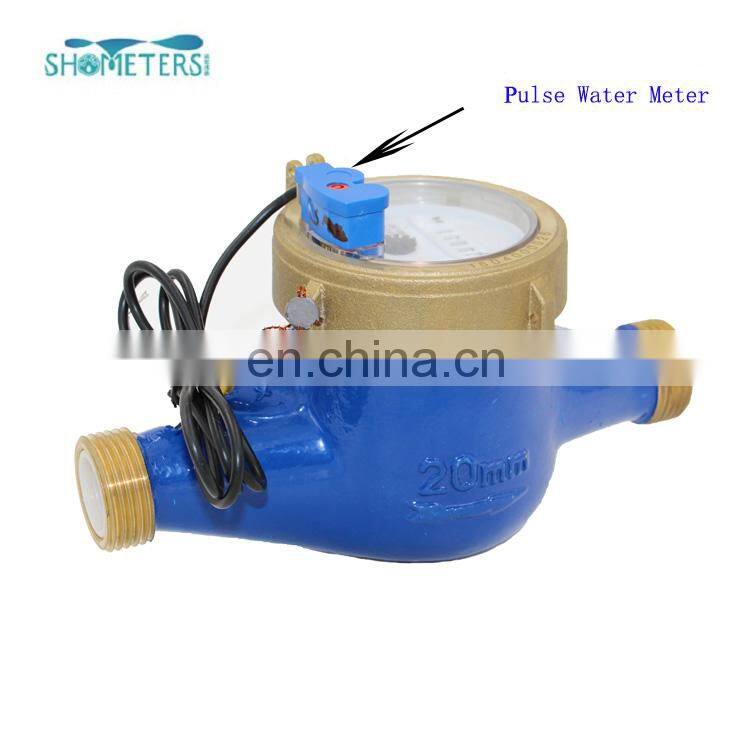

· Reed switch option.
· Several lengths and connections availavle on request.

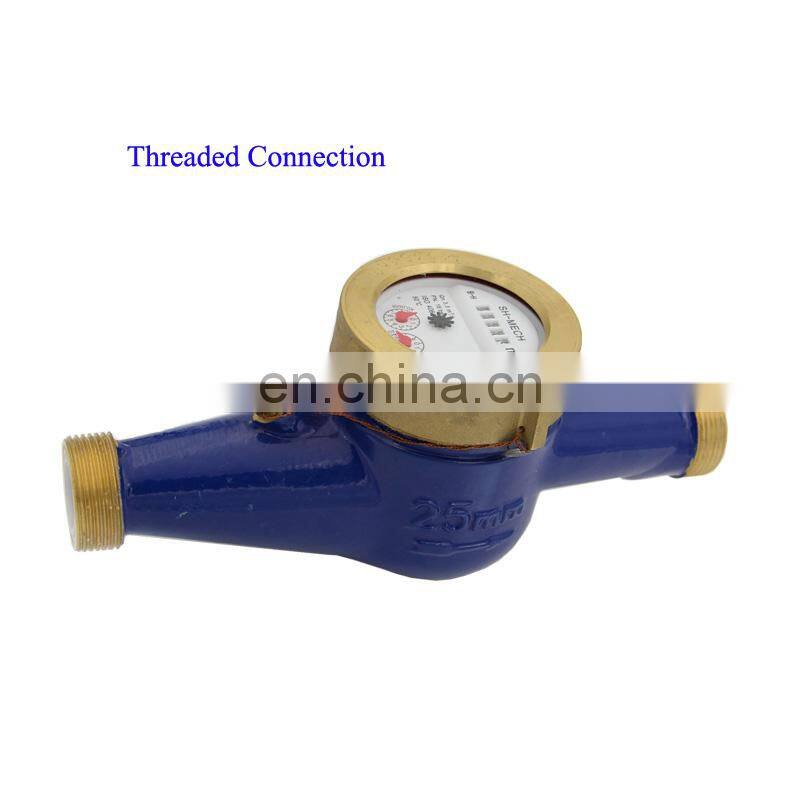

· Thread end type: BSP / NPT.

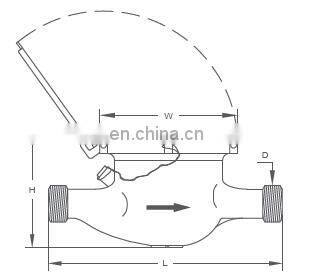

Dimension:
Overall Dimension And Weight:
DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 50 |
Size(inch) | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2" |
Length(L) | 165/190 | 190 | 260 | 260 | 300 | 300 | 280 |
Width(W) | 99/104 | 98 | 103.5 | 103.5 | 125 | 125 | 160 |
Height(H) | 116/121 | 117 | 124 | 124 | 162 | 162 | 187.5 |

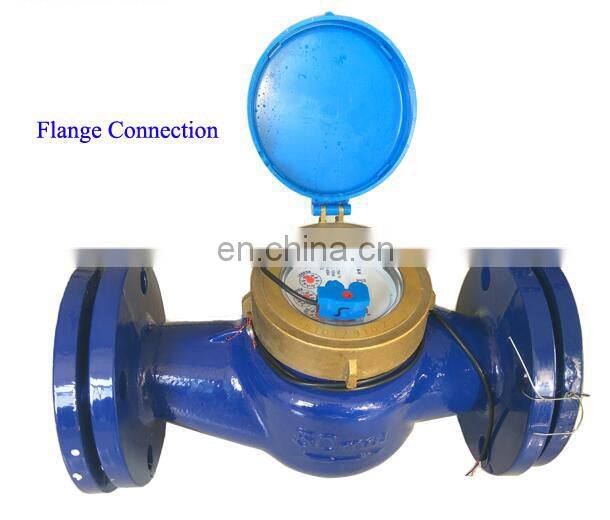

Connecting Thread D | G3/4B | G1B | G11/4B | G11/2B | G2B | G21/2B | Flange end |
Weight(kgs) | 1.65 | 1.79 | 1.85 | 2.68 | 5.25 | 7.25 |
Technical Data:
DN (mm) | 15 | 25 | 32 | 40 | 50 | |
Size (inch) | 1/2" | 1" | 1-1/4 | 1-1/2" | 2" | |
Q4(l/h) | 3125 | 7875 | 12500 | 20000 | 31250 | |
Q3(l/h) | 2500 | 6300 | 10000 | 16000 | 25000 | |
R=80 | Q2 (l/h) | 50 | 126 | 200 | 320 | 400 |
Q1 (l/h) | 31.25 | 78.75 | 125 | 200 | 250 | |
R=100 | Q2 (l/h) | 40 | 100.8 | 160 | 256 | 400 |
Q1 (l/h) | 25 | 63 | 100 | 160 | 250 | |
R=125 | Q2 (l/h) | 32 | 80.64 | 128 | 204.8 | 200 |
Q1 (l/h) | 20 | 50.5 | 80 | 128 | ||
R=160 | Q2 (l/h) | 22.5 | 63 | 100 | 160 | 400 |
Q1 (l/h) | 15.62 | 39.37 | 62.5 | 100 | 250 | |
Max. Reading (m3) | 99,999 | 99,999 | 99,999 | 99,999 | 99,999 | |
Min.Reading (Liter) | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | |
Max.Pressure (Bar) | 16 | 16 | 16 | 16 | 16 | |
Pressure Loss | 63 | |||||
Max.Temperature | T=50 /90 | |||||
Pulse Output Option | Vmax=24V | |||||
Imax=100mA | ||||||
Pmax=2W |
More Types:
Magnet Position | Liter /Pulse |
* 0.0001 | 1 |
* 0.001 | 10 |
* 0.01 | 100 |
* 0.1 | 1000 |
DN50 water meter has two types
Packaging Detail: Pallets without fumigation or wooden box
Company Information:
Our factory build up since 1966, with more than 50 years experience in the line for water meter technology and manufacture. We provide OEM services for many famous brand, from German and Italy, for example, Zenner and B Meters. We also export the mechanism and spare parts for many countries, like Egypt, Turkey and so on. So we have enough confidence to believe that our product can meet with your request.
Warranty
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date
of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return
to the SH-MECH Meters.
Technical data conform to international standard ISO 4064, and we have more water meter types,such as:
