Product Description

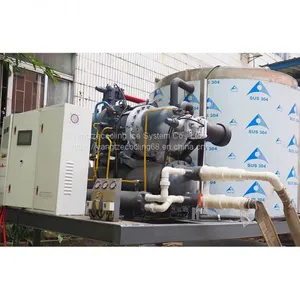

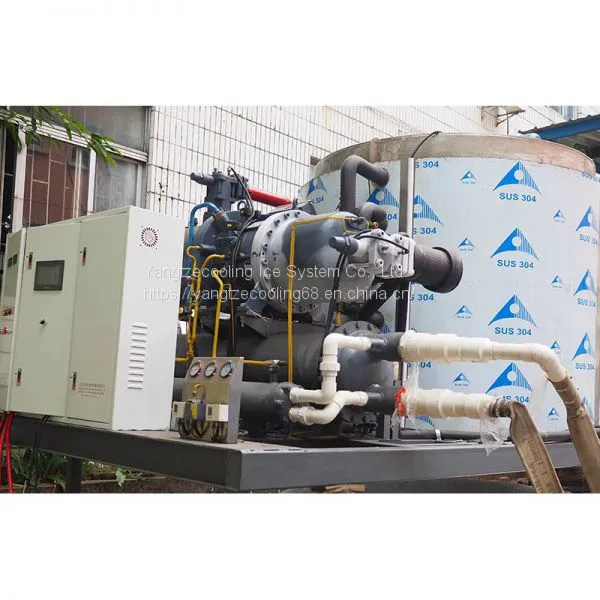

10Ton Flake Ice Machine
Sear Water Flake Ice Machine
10Ton/Day flake ice has an excellent cooling effect and has the characteristics of large cooling capacity and rapid speed. There are mainly used in various large-scale refrigeration facilities, food quick freezing, concrete cooling and the like.
There are two types of sea ice flakes: Land and Marine. All the configurations from ice Evaporator to condenser are high-strength anti-corrosion materials.
Seawater mainly applied to Fish processing, Seafood preservation
We generally recommend using a seawater ice machine of 10T or less for fishing boats.
1, Adopted to 304 or 316 stainless steel to make the evaporator, Ice Blade;
2, The frame is available in carbon steel and stainless steel;
3, Using deep oil tank piston compressor and special seawater condenser, longer service life;
4. Water-cooled units do not need to be equipped with cooling towers, which can greatly reduce customer costs.
5, can be directly installed on the fishing boat, more convenient to use.
Sear Water Ice Machine Feature
All pipes and valves are made of high-strength anti-corrosion materials.
Strong adaptability to the ice making water sources,
Take ice directly from the sea to make ice directly;
Use a corrosion-resistant seawater condenser,
Direct extraction of seawater cooling;
Produce ice continuously at any time, make it on demand
Base above condition marine ice machine must be specially designed anti-sway evaporator for marine sea ice machines and compressor unit.
The feature of the flake ice maker
Seawater flakes, like freshwater flakes, are snowy, soft, easy to use, and have a good fresh-keeping effect, which can meet the needs of fish products for preservation and quality.
1, using SUS316 stainless steel evaporator;
2, the frame is available in carbon steel and stainless steel;
3, using deep oil tank piston compressor and special seawater condenser, longer service life;
4. Water-cooled units do not need to be equipped with cooling towers, which can greatly reduce customer costs.
5, can be directly installed on the fishing boat, more convenient to use.
The flakes are flakes, dry and loose white ice, ranging in thickness from 1.0 mm to 2.5 mm, irregular in shape and about 12 to 45 mm in diameter.
Flake Ice Flat in Shape
Safety and Sanitation
High Reliability and Low Breakdown Rate
High Efficiency and Energy Saving
Simple Maintenance and Convenient Moving
10Ton/Day Industrial Flake Ice machine specification
Item Name | Sea Water Ice Machine | Fresh Water Ice Machine |
Model | YTC-10TS | YTC-10TF |
Compressor power | 60HP | 50HP |
Ice Evaporator | Stainless Steel 304 | Carbon Steel |
Daily Output | 10000kg/24H | 10000kg/24H |
Ref.Capacity(Kcal) | 83850 | 51600 |
Temp.Evaporator(℃) | -22(℃) | -18(℃) |
Temp.Condenser(℃) | 40(℃) | 40(℃) |
Total Power (kw) | 53.42 | 41.84 |
Cooling Mode | Water Cooled | Water Cooled |
Power Supply | 380V/3PH/50Hz | 380V/3PH/50Hz |
Refrigerant | R404 | R404 |
Unit Weight | 1850 | 1640 |
Unit Size | 1750x1190x1410mm | 1750x1190x1410mm |
Ice Storage Size | 1750 x 1480 x1290mm | 1750 x 1480 x1290mm |
The non-standard power supply needs custom compressor likes 3PH/380V/60hz.
10Ton/Day Flake ice machine is widely applied in supermarket, seafood market, food processing facility and vegetable preservation industrial.
