HIGH SPEED, HIGH PRECISION, HIGH POWER, LARGE MARKING AREA!
It adopts Coherent or Rofin CO2 laser source from America with stable laser output, high quality laser beam,
long service time and high precision. Compared with normal marking system, it has higher speed and better
beam facula. It works so best in leather cutting and marking industry.

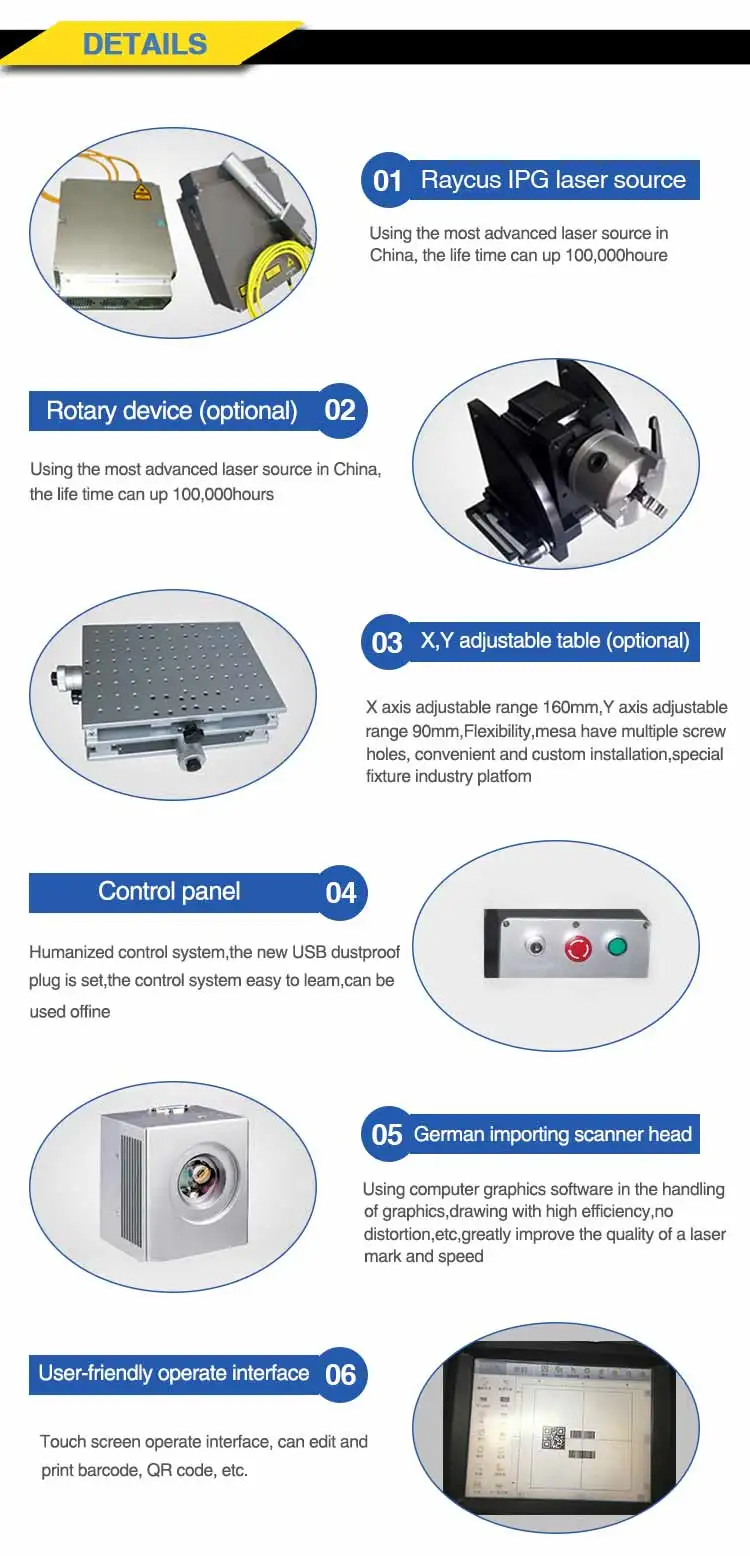

Machine Characteristics
Advanced machine technology, simple operation, with high-speed marking vibration lens, photoelectric conversion efficiency of high marking speed, the effect is not deformed and meticulous precision, full-enclosed Optical system design, the failure rate is low, maintenance-free, low processing costs can be for 24 hours of working.
Advantage
1.Maintenance-free.
2.User-friendly interface programme, multi-function.
3.Excellent beam quality, high stability.
4.High speed & high precision.
5.Easy to adjust focus.
6.Air cooling, double red pointer positioning system.
7.Qualified integrated units insure reliability of the whole system.
8.Long and economic life time.
9.Low energy consumable.
Technical data
Type |
FIBER |
|
Output power |
30W |
|
Wavelength |
1064nm |
|
Repetition frequency |
20~200khz(Pulse width 30~200nm) |
|
Marking depth |
||
Marking scope |
110*110mm 140*140mm optional |
|
Linear speed |
||
Character size |
0.2~110mm |
|
Min line width |
0.05mm |
|
Repeat accuracy |
0.01mm |
|
Laser |
Pulsed fiber optic laser |
|
Power consumption |
||
Electrical source |
220V 50-60HZ |
|
Focusing range |
140mm 210mm optional |
|
Speed monitoring |
Sync encoder or analog speed |
|
Working temperature |
5~45 ℃ |
|
Cooling way |
Air cooling |
|
Control type |
Industrial level embedded control(LINUX) |
|
Touch screen (optional) |
10.2 Full color touch screen, can be held |
|
Engraving way |
Flying engraving, Static engraving, Intelligent engraving |
|
Engraving content |
Text, Complex graphics, One dimension (two dimensional) bar codes, Variable serial number, Date, TXT file, RS232 TCP/IP communication data, PLT format drawings, etc |
|
Support font |
True Type, Single line, dot matrix word |
|
Engraving advantage |
Online editing, Multi-faceted engraving, Facing engraving, Accurate records, Fast shift, Trigger smart memory |
|
Weight |
Laser machine 30kg, bracket 50kg |
|
Application
Shanghai Jiaoxi Laser Equipment Co.,Ltd is a professional manufacturer of Laser Marking Machine ,Laser Cutting Machine and CNC ROUTER ,Located in Shanghai
Baoshan industrial zone,it has a modern R & D center and manufacturing plant,since it was established ,it has continued to train and recruit talents through cooperation with colleges and brought a large number of enterprising and leading elites of the industry
Our company mainly products including laser marking machine ,CO2 laser cutting machine and cnc router etc , widely used in metal and non-metal field ,for example hardware ,integrated circuit chips ,
industrial bearings ,variety of auto parts ,hardware tools ,wire and cable ,mould,garment leather and craft gifts etc .in line with our advanced philosophy ,excellent products ,down to earth service,along with our strong R&D and production capacity ,wide social cooperation as well as efforts of our every employee,some machines are exported to the Europe, America, Singapore, Vietnam, India and Bangladesh etc .
Manufacturer the world first-class laser equipments is the enternal pursuit of jiaoxi laser
Q: What’s the package ?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation ?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the machine ?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong ?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Before quotation
would you please let me know some items following?
1. What materials do you want to mark on by our laser marking machine?
2. What max. marking scope ?
3. How about your expect marking performance?
