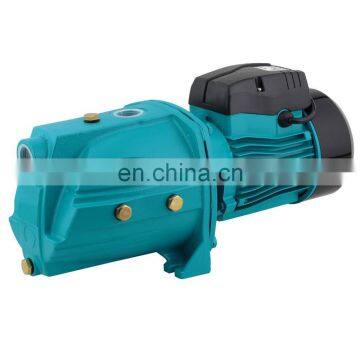

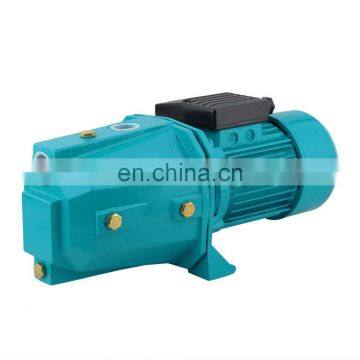

Electric Self-Priming 1HP High Head Jet Boat Pump For Water Lifting
- 20000 Carton / Cartons per Month
- NINGBO
- T/T Credit Card
- SJET series 1hp electric centrifugal stainless steel jet pump price
- Portable 1hp horizontal surface high pressure JET100 water pump price list
- Best price 1hp jet 100 high pressure water pump for clean water
- Electric Propulsion Self Priming JET Pressure Water Pump
- Cast iron high pressure 0.75hp jet self-priming pump price
- Electric Self-priming Stainless Steel Propulsion Power Jet Pump
Product Details
Brand Name: | BAQIU | Place of Origin: | Zhejiang, China | Model Number: | JET80L 0.55KW 0.75HP |
Power: | Electric | ||||
Usage: | Water | Theory: | Jet Pump | Standard or Nonstandard: | Standard |
Structure: | Single-stage Pump | Pressure: | High Pressure |
Product Description
Electric Self-Priming 1HP High Head Jet Boat Pump For Water Lifting
1.Application
Clean water without abrasive particles. |
Domestic use and irrigation, irrigation of gardens and allotments etc. |
High Head. |
Suitable for water lifting, distribution with small or medium pressure sets. |
Installed in enclosed places, or at least protected against inclement weather. |
2. Operation Conditions
Suction lift up to 9m. |
Liquid temperature up to +40℃ |
Ambient temperature up to +40℃ |
Max.Working Pressure: 6 bar |
3.Pump Motor
2-pole induction motor:50Hz |
Insulation:Class B. |
Protection: IP44. |
With capacitor and thermal overload protection |
4.Pump Material
Pump Body: Cast Iron. |
Motor backet: Aluminum. |
Impeller: Brass. |
Shaft with Rotor: Stainless Steel or Cs45# |
Mechanical Seal: Silicon Carbide-Graphite. |
Copper Winding |
5.Hydraulic Performence Curve
Model | Power | Inlet (inch) | Outlet (inch) | Max.flow (L/min) | Max.head (m) | Max.suction (m) | Dim (cm) | G.W(kg) | Qty (20ft) | |
Single-phase | kw | hp | ||||||||
JET60L | 0.37 | 0.55 | 1'' | 1'' | 40 | 35 | 9 | 47.5x19x22 | 12 | 1600 |
JET80L | 0.55 | 0.75 | 1'' | 1'' | 50 | 44 | 9 | 47.5x19x22 | 13 | 1400 |
JET100L | 0.75 | 1 | 1'' | 1'' | 60 | 48 | 9 | 47.5x19x22 | 13.5 | 1400 |
Certificate | |||||||||
Work shop area | |||||||||
Thank you for viewing our products,your feedback will be highly appreciated
Brief Introduction
1)Taizhou BAQIU electrical and mechanical Co.,LTD which located in the home two of chinese water-Daxi,Wenling
China.We are integratd manufactural factory.
2)Our major productions are all kinds of water pumps.Based on excellent products and good reputation,they have
won favorable views from customers both at home and aboard and passed some domestric.
3)Our products are well sold in more than twenty province and cities in China,and exported to America,Europe,
Australia and Southeast Asia etc.
4)Quality always stands the first and honest is our concept.We provide reasonable price,punctuality and satisfying
service.We sincerely welcome all the friends from the world to join in us and develop together.
Await for your kind inquiry ! My co-worker and i will do our best to supply good service for you
