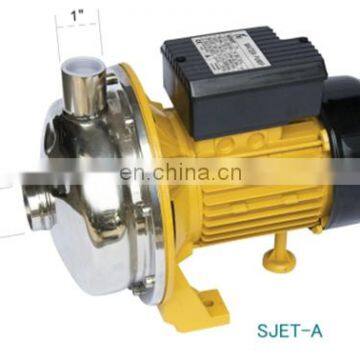

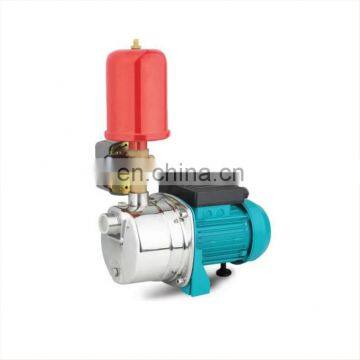

Self-priming irrigation electric auto clean water booster pump
|
|
| Model | Power |
Max. Flow (L/min) |
Inlet/Outlet (inch) |
Tank Capacity |
Tank Located |
Suggested Pressure Setting Bar |
Dim(mm) | G.W(kg) |
| kw | ||||||||
| AUQB60 | 0.37 | 30 | 1''x1'' | 24L | Horizontal | 1.2-2.5 | 525x300x550 | 11.5 |
| AUDP255 | 0.55 | 45 | 1''x1'' | 24L | Horizontal | 1.8-3 | 500x300x530 | 21.4 |
| AUDP505 | 1.1 | 100 | 1.25''x1''x1'' | 24L | Horizontal | 1.8-3 | 600x345x530 | 25 |
| AUSJET60L | 0.46 | 40 | 1''x1'' | 24L | Horizontal | 1.2-2.5 | 500x300x530 | 19.4 |
| AUSJET80L | 0.55 | 47 | 1''x1'' | 24L | Horizontal | 1.8-3 | 500x300x530 | 23.4 |
| AUSJET100L | 0.75 | 55 | 1''x1'' | 24L | Horizontal | 1.8-3 | 500x300x530 | 23.4 |
| 1.Pump material | |
| Pump Body : Cast Iron | |
| Impeller : Brass (DP-505: Two impellers) | |
| Motor bracket : Aluminum | |
| Shaft with rotor : Stainless Steel or Cs45# | |
| Mechanical Seal : Ceramic-Graphite | |
| Copper winding | |
| 2. Operation Conditions | |
| Suction head up to 9M | |
| Liquid temperature up to 40℃ | |
| Ambient temperature up to 40℃ | |
| Max.Pressure : 6 Bar | |
| 3.Pump motor | |
| 2-pole induction motor : 50Hz/60Hz | |
| Insulation : Class B | |
| Protection : IP44 | |
| With capacitor and thermal overload protection | |
| 4.Application | |
|
Clean water without abrasive particles
| |
|
Domestic use, irrigation of gardens and farm lands etc.
| |
Suitable for water lifting, and distribution with small or medium pressure sets. | |
Installed in enclosed places,or at least protected against inclement weather. |
| Work shop area | |||||||||
|
| BAQIU Company Introduction |
|
1)Taizhou BAQIU electrical and mechanical Co.,LTD which located in the home two of chinese water- Daxi ,Wenling China.We are integratd manufactural factory. |
|
2)Our major productions are all kinds of water pumps.Based on excellent products and good reputation,they have won favorable views from customers both at home and aboard and passed some domestric. |
|
3)Our products are well sold in more than twenty province and cities in China,and exported to America,Europe, Australia and Southeast Asia etc. |
|
4)Quality always stands the first and honest is our concept.We provide reasonable price,punctuality and satisfying service.We sincerely welcome all the friends from the world to join in us and develop together. |
| Shipping & Payment |
| 1.FedEx/DHL/UPS/TNT for samples |
| 2.Batch goods delivered by sea |
| 3.Customers specifying freight forwarders or negotiable shipping methods |
| 4.Delivery Time:7-15 days for samples; 25-30 days for batch goods |
| 5.30%T/T or 100%LC,balance against the copy of B/L |
| More choices if you like ... | |||||||||
|
|
|
|||||||
|
|
|
|||||||
| Why choose us? |
| Advantages we have: |
| 1. Experienced slate products supplier; |
| 2. Professional design team and sales department for your service; |
| 3.alibaba gold supplier, factory recognized by 'CE/ISO9001' and so on; |
| 4. 7*24 service for you, all the question will be dealed within 24hours. |
| Benefit you get: |
| 1. Stable quality —— Coming from good materials and technic |
| 2. Lower price —— Not cheapest but the lowest at the same quality |
| 3. Good service —— Satisfactory service before and after sale |
| 4. Delivery time —— 30-45 days for mass production |
Await for your kind inquiry ! My co-worker and i will do our best to supply good service for you
