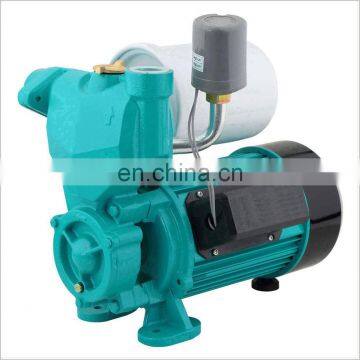

220 volt self priming water supply pump irrigation water pumps sale
|
Operation Conditions *Suction lift up to 8m. *Liquid temperature up to +90℃ *Ambient temperature up to +40℃ *Max.Working Pressure: 6Bar
Pump Motor *2-pole induction motor:50Hz *Insulation:Class B *Protection:IP44 *With capacitor and thermal overload protection |
|
Application
Clean water, non-aggrassive liquid only without sand or other solid impurities. |
| Domestic use and irrigation. |
| Bigger suction with self primng. |
| Low power. |
| In particular for delivering water in combination with small pressure sets and for irrigation. |
| Installed in enclosed places, or at least protected against inclement weather. |
Pump Material
| Pump Body: Cast Iron |
| Impeller: Brass |
| Shaft with Rotor: Stainless Steel or Cs45# |
| Mechanical Seal: Silicon Carbide-graphite. |
| Copper Winding |
Hydraulic Performence Curve
Model |
Power |
Inlet (Inch) |
Outlet (Inch) |
Max.Flow (L/min) |
Max.Head (m) |
Max.Suction (m) |
Dim (mm) |
G.W. (kg) |
20' Loading Qty. (pcs) |
|
Single-Phase |
KW | HP | ||||||||
| 1AWZB250 | 0.25 | 0.34 | 1 | 1 | 33 | 28 | 8 | 300x240x290 | 10 | 1300 |
| 1AWZB370 | 0.37 | 0.5 | 1 | 1 | 37 | 32 | 8 | 300x240x290 | 11 | 1300 |
| 1AWZB550 | 0.55 | 0.75 | 1 | 1 | 47 | 38 | 8 | 335x250x350 | 13.5 | 900 |
| 1AWZB750 | 0.75 | 1 | 1 | 1 | 50 | 44 | 8 | 335x250x350 | 14.5 | 900 |
Work shop area
|
Brief Introduction
Taizhou BAQIU electrical and mechanical Co.,LTD which located in the home two of chinese water-Daxi,Wenling China.We are integratd manufactural factory.
Our major productions are all kinds of water pumps.Based on excellent products and good reputation, our products are well sold in more than twenty province and cities in China,and exported to America,Europe,Australia and Southeast Asia etc.
Quality always stands the first and honest is our concept.We provide reasonable price,punctuality and satisfying service.We sincerely welcome all the friends from the world to join in us and develop together.
More choices if you like...
|
|
|
|||||||
|
|
|
|||||||
FAQ
Q:Are you a factory or a trading company?
A: Yes,we are water pump manufacturer.
Q:What is your MOQ of this model ?
A: MOQ are 100PCS,can offer trial sample order is also OK.
Q: What is the payment terms of our factory?
A: 30%T/T ,Balance against the copy of bill of lading.
Q: How many days for 1container production?
A: 30days after receiving deposit,40days in very busy season.
