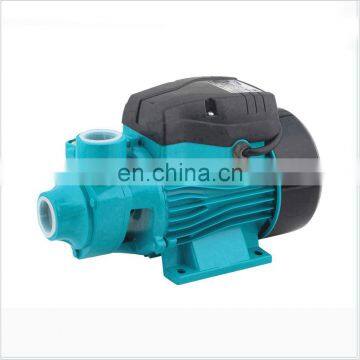

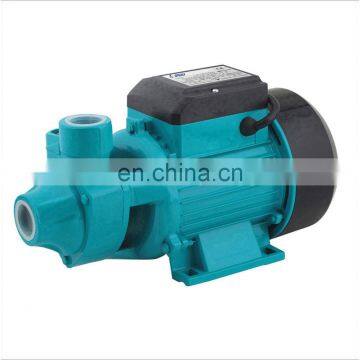

Single phase copper wire QB series 1hp water pump specifications
Motor *2-pole induction motor:50HZ *Insulation Class:B *Protection:IP44 *Single-phase with capacitor and thermal overload protection
Operating Conditions *Suction lift uo ti 9m *Liquid temperature up to+40 *Ambient temperature up to+40 *Ming pressure:6 bar | |
Material *Pump body:cast iron
*Motor housing:aluminum
*Impeller:brass
*Shaft with rotor:45#steel or stainless steel shaft
*Mechanical seal:Graphite to ceramic.
*Bearing:C&U or local bearing | Application *Suitable for transporting clean water that does not contain abrasive particles or liquids that are not chemically aggressive towards the pump materials.
*They are easy to be used and economical,ideal for domestic use and in particular for distributing water with small pressure sets and for the irrigation of gardens and farmland
*The pump should be installed in an enclosed environment,or at least sheltered from inclement weather. |
| Model | Power | Inlet (Inch) | outlet (Inch) | Max.Flow (L/min) | Max.Head (m) | Max.Suction (m) | Dim (mm) | G.W. (kg) | 20' Loading Qty. (pcs) |
| Single-Phase | HP | ||||||||
| QB60 | 0.5 | 1 | 1 | 40 | 40 | 8 | 280x140x170 | 5.3 | 3600 |
| QB70 | 0.75 | 1 | 1 | 40 | 40 | 8 | 335x190x210 | 8 | 2100 |
| QB80 | 1 | 1 | 1 | 50 | 65 | 8 | 340x190x210 | 9 | 2100 |
| QB80 | 1 | 1.5 | 1.5 | 60 | 70 | 8 | 340x190x210 | 9.5 | 2100 |
Taizhou BAQIU electrical and mechanical Co.,LTD which located in the home two of chinese water-Daxi,Wenling China.We are integratd manufactural factory.
Our major productions are all kinds of water pumps.Based on excellent products and good reputation, our products are well sold in more than twenty province and cities in China,and exported to America,Europe,Australia and Southeast Asia etc.
Quality always stands the first and honest is our concept.We provide reasonable price,punctuality and satisfying service.We sincerely welcome all the friends from the world to join in us and develop together.
| 1.Q: Are you a manufactory or trading company? |
A: We are water pump manufactory. Welcome to visit our factory. |
| 2. Q: What’s your MOQ of this item? |
A: 100PCS. Trial sample order is also OK. |
| 3. Q: What’s your payment terms? |
| A: 30% t/t deposit and the balance t/t against copy of BL. |
| 4. Q: What is the delivery time? |
| A: 25-30 days after receiving your advanced deposit, 40 days in very busy season. |
5. Q: Is it all right to make customer's own brand name ? |
A:Yes, welcome. |
