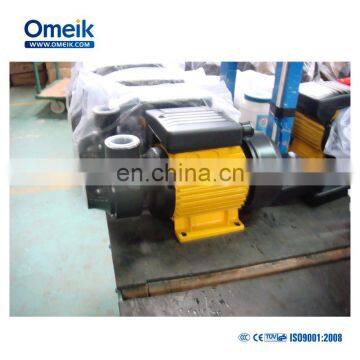

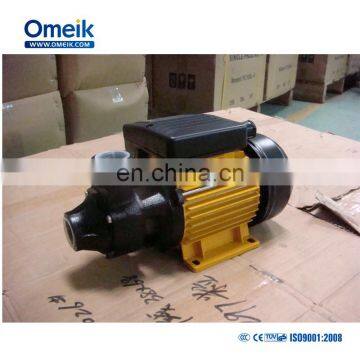

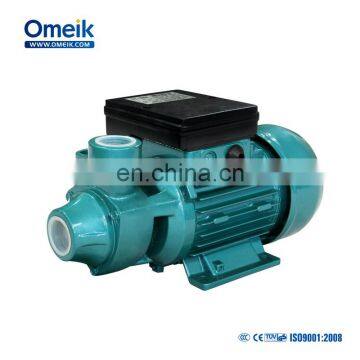

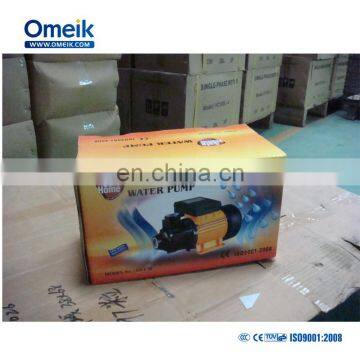

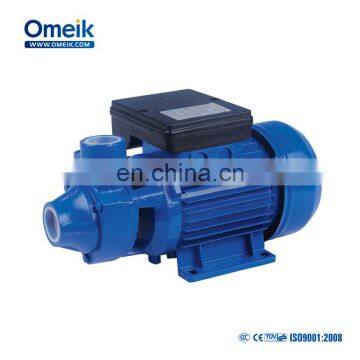

IDB Series Home Water Pump

IDB Series Home Water Pump photo-1
IDB Series Home Water Pump photo-2
IDB Series Home Water Pump photo-3
IDB Series Home Water Pump photo-4
IDB Series Home Water Pump photo-5
IDB Series Home Water Pump photo-6
US$ 10.1 - 200 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
OMEIK
Place of Origin:
Fujian, China
Model Number:
home water pump
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Brand Name OMEIK
Place of Origin Fujian, China
Model Number home water pump
Power Electric
Usage Water
Theory Vortex Pump
Standard or Nonstandard Standard
Structure Single-stage Pump
Pressure Low Pressure

IDB home water pump :



IDB series of clean water pump belongs to the vortex pump that directly coupled between electric machine and pump body.They possess the advantages of more simple construction, smaller measurement, lighter weight, higher head, but with less flow quantity.They are suitable for pumping clean water. It is particularly suitable for domestic applications such as supplying water from well, pool, etc. It is also suitable for water pressure boosting, gardening and automatic water supplying if combined with other appliances.



Technical date at 50 Hz

Model Power Voltage (V) Current (A) Max. Flow (l/min) Max. Head (m) Max. Suction (m) Pipe
Diameter
(inch)
Overal
Dimension
(cm)
Weight (kg) Qty/ 20ft
KW HP
IDB-35 0.37 1/2 220 1.6 35 35 9 1"x1" 28.5X14.5X17.5 5.5 3400
IDB-40 0.55 3/4 220 3.6 40 40 1"x1" 33X18X20 10 2000
IDB-50 0.75 1 220 3.8 50 45 1.5"x1.5" 33X18X20 11 1820
IDB-60 1.1 1.5 220 6.6 85 60 1.5"x1.5" 42X21X21.5 20 1000
Remarks:110V, 115V, 127V, 110/220V, 230V, 240V, 50Hz or 60Hz can according to the customer's requirements.



Sample View:





IDB series home water pump



Factory View:



IDB series home water pump



Certificate:

IDB series home water pump
