Home > Electrical & Electronics > Electric Motor > AC Motor > ML Series Electric Motor 3.5kw

ML Series Electric Motor 3.5kw

ML Series Electric Motor 3.5kw thumbnail-1
ML Series Electric Motor 3.5kw thumbnail-2
ML Series Electric Motor 3.5kw thumbnail-3
ML Series Electric Motor 3.5kw thumbnail-4
ML Series Electric Motor 3.5kw thumbnail-5
ML Series Electric Motor 3.5kw thumbnail-6
ML Series Electric Motor 3.5kw photo-1
ML Series Electric Motor 3.5kw photo-2
ML Series Electric Motor 3.5kw photo-3
ML Series Electric Motor 3.5kw photo-4
ML Series Electric Motor 3.5kw photo-5
ML Series Electric Motor 3.5kw photo-6
US$ 20 - 80 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
OMEIK MOTOR
Place of Origin:
Fujian, China
Model Number:
electric motor 0.5kw ML100L2-4
Contact Supplier Request Quote Chat Now
Gelan M&E Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name OMEIK MOTOR
Place of Origin Fujian, China
Model Number electric motor 0.5kw ML100L2-4
Type Asynchronous Motor
Output Power 1.1KW
Frequency 50HZ OR 60HZ
Efficiency IE 1
Certification CCC, CE, ROHS
Phase Single-phase
Protect Feature Totally Enclosed

Operating Conditions



Ambient temperature: -15°C≤θ≤40°C
Above sea level: not exceed 1000m
Rated voltage: ±5%
Protection class: IP44/IP54/IP55
Insulation class/F
Cooling method: ICO141
Duty: continuous(S)





ML electric motor 0.5kw:



This series motors are suitable for the occasion where there requirements of big starting torque and high over load, such as air-compressors,pumps, fans medical apparatus and instruments, and many other small machines.



  Technical date at 50 Hz

Model Power Voltage
(V)		 Current
(A)		 Speed
(r.p.m)		 Eff
(%)		 Power
factor		 Locked rotor
torque Rated
torque		 Locked rotor
current
rated current		 Start
current
(A)
KW HP
MY631-2 0.18 1/4 220 1.48 2800 60 0.92 0.4 1.7 5
MY632-2 0.25 1/3 220 1.96 2800 63 0.92 0.4 1.7 7
MY711-2 0.37 1/2 220 2.73 2800 67 0.92 0.35 1.7 10
MY712-2 0.55 3/4 220 3.88 2800 70 0.92 0.35 1.7 15
MY801-2 0.75 1 220 5.15 2800 72 0.92 0.33 1.7 20
MY802-2 1.1 1.5 220 7.02 2800 75 0.95 0.33 1.7 30
MY90S-2 1.5 2 220 9.44 2800 76 0.95 0.3 1.7 45
MY90L-2 2.2 3 220 13.67 2800 77 0.95 0.3 1.7 65
MY631-4 0.12 1/6 220 1.1 1400 55 0.9 0.4 1.7 3.5
MY632-4 0.18 1/4 220 1.62 1400 56 0.9 0.4 1.7 5
MY711-4 0.25 1/3 220 2.02 1400 61 0.92 0.35 1.7 7
MY712-4 0.37 1/2 220 2.95 1400 62 0.92 0.35 1.7 10
MY801-4 0.55 3/4 220 4.25 1400 64 0.92 0.35 1.7 15
MY802-4 0.75 1 220 5.45 1400 68 0.92 0.32 1.7 20
MY90S-4 1.1 1.5 220 7.45 1400 71 0.95 0.32 1.7 30
MY90L-4 1.5 2 220 9.83 1400 73 0.95 0.3 1.7 45

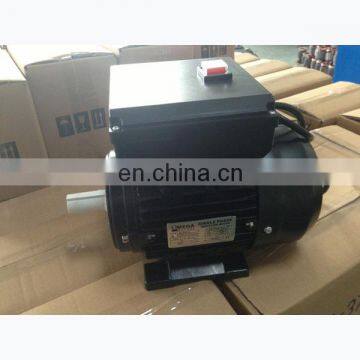

Sample Room:



ML series electric motor 3.5kw

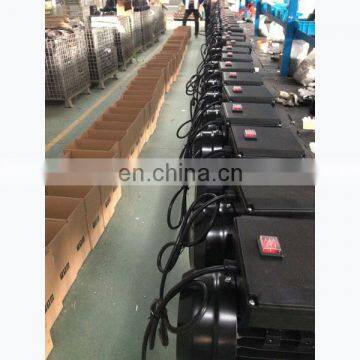

Factory View:



ML series electric motor 3.5kw
