Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Centrifugal Multistage Water Pumps Parts
US$ 1,450 - 3,970
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
MILESTONE
Place of Origin:
Hebei, China
Model Number:
MST-D
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN QINGDAO SHANGHAI NINGBO GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4 Inch Semi-open Impeller Water PumpUS$ 875 - 1,798MOQ: 1 Set -
Multistage Irrigation High Pressure Water PumpsUS$ 1,450 - 8,970MOQ: 1 Set
-
Parts of Centrifugal Pump Working PdfUS$ 1,450 - 8,970MOQ: 1 Set
-
Dewatering Diesel Water Tank Transfer PumpsUS$ 2,350 - 4,980MOQ: 1 Set
-
50hp Centrifugal Engine Types of PumpsUS$ 2,350 - 4,980MOQ: 1 Set
Brand Name
MILESTONE
Place of Origin
Hebei, China
Model Number
MST-D
Power
Electric
Usage
Water
Theory
Centrifugal Pump
Standard or Nonstandard
Standard
Structure
Multistage Pump
Pressure
High Pressure
Centrifugal multistage water pumps parts
Product Description
Description:
D/DA Multistage Pump is an energy-saving product series. Its performance parameters and technical data are higher. It is suitable for the circulation and pressurization of cold and warm clear water in high-pressure operation system, water supply under parallel operation of several pumps in civil construction, water supply for fire control, boiler, cooling water system and the delivery of various liquid.
Pump Structure:
| 1 | bearing cover | 2 | nut | 3 | bearing | 4 | water baffle |
| 5 | bearing base | 6 | shaft sleeve | 7 | gland packing | 8 | packing rings |
| 9 | suction part | 10 | middle bush | 11 | wearing rings | 12 | impellers |
| 13 | middle part | 14 | diffuser baffle | 15 | wing sleeve | 16 | tie bolts |
| 17 | discharge wing | 18 | balance bush | 19 | balance ring | 20 | balance ring |
| 21 | discharge part | 22 | stuffing box housing | 23 | shaft | 24 | shaft sleeve |
Performance data
Pump Performance:

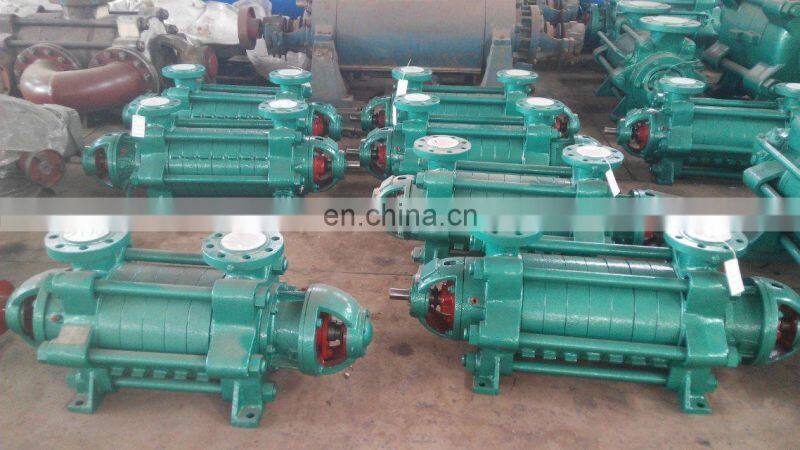

Pump Show:
Pump Application:
- long distance water transferring
- boiling water feeding and transferring
- water system boosting
- agricultural irrigation
- mining water supply
- fire fighting
- offshore projects
Technical Data:
| Model | Capacity (m³/h) | Head (m) | Speed (rpm) | Motor Power (kw) | Impeller Dia (mm) |
| 6-25*4 | 6.3 | 100 | 2950 | 7.5 | 139 |
| 6-25*5 | 6.3 | 125 | 2950 | 7.5 | 139 |
| 6-50*4 | 6.3 | 200 | 2950 | 18.5 | 198 |
| 12-25*4 | 12.5 | 100 | 2950 | 11 | 146 |
| 6-80*3 | 6 | 240 | 2950 | 18.5 | 235 |
| 12-80*4 | 12.5 | 320 | 2950 | 45 | 235 |
| 25-30*3 | 25 | 90 | 2950 | 15 | 160 |
| 46-30*5 | 46 | 150 | 2950 | 37 | 162 |
| 85-67*4 | 85 | 268 | 2950 | 110 | 235 |
| 120-50*5 | 120 | 250 | 2950 | 132 | 213 |
| 150-30*8 | 150 | 240 | 2950 | 160 | 172 |
| 150-100*6 | 150 | 600 | 2950 | 400 | 289 |
| 200-100*6 | 200 | 600 | 2950 | 560 | 290 |
| 280-65*6 | 280 | 390 | 1480 | 500 | 430 |
| 300-45*4 | 300 | 180 | 1480 | 200 | 360 |
| 150D30*6 | 155 | 180 | 1480 | 132 | 305 |
