1000m3/h 12 inch split case centrifugal water pump
n Introduction

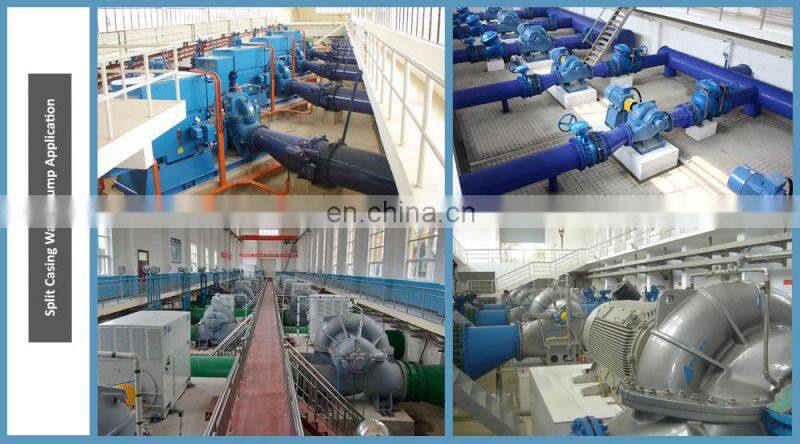

S (SH) series 1000m3/h 12 inch split case centrifugal water pump are late-model energy-saving horizontally split pumps newly developed by us on the base of the old style double suction pumps at home and abroad. 1000m3/h 12 inch split case centrifugal water pump are used to handle clean water or other liquids similar to waterin physical and chemical dium temperature not exceeding 80°C.This series of pumps are applicable for water supply for factories,mining,urban water supply and drainage,power stations, farmland irrigation and drainage,and soon.Shaft sealing is soft packing sealing.
Pump Specification:
| Model | :350S-44 |
| Flow | :1000m3/h |
| Head | :44m |
| Speed | :1450rpm |
| Eff | :87% |
| NPSHr | :6.3m |
| Casing material | :cast iron |
| Impeller material | :cast iron |
| Shaft material | :2cr13 |
| Basepate | :cast iron |
Pump Features :
1: Adopts horizontal, vertical axis medium open type double pump shell structure, lining for cemented carbide or rubber has good wear-resisting, corrosion resistance and high reliability.
2: High efficiency hard alloy, and low NPSH.
3: to meet the different operation conditions, adopted the brief type structure bearing parts, selected high bearing capacity design, alloy bearing grease lubrication oil.
4: through adjusting the clearance between protection board and impeller, ensuring the pump efficient operatio.
5: using packing seal, impeller sealing , container type mechanical seal to adapt to different operating mode requiremen.
6: Pump and drive can choose straight league transmission, triangle, hydraulic transmission device coupled transmission, reducer drive.
7: the outflow direction can be installed by eight Angle rotation to adapt to different site installation condition.
8: available to use multipole series, to satisfy the long-distance transmission requirements.
n Construction drawing
n Curves Chart
Parameter Table
| MS Clear Water Performance | ||||
| Type | Capacity | Head | Speed | Shaft power |
| m³/h | m | r/min | kw | |
| 150MS-78 | 160 | 78 | 2900 | 45 |
| 150MS-50 | 160 | 50 | 2900 | 27.3 |
| 200MS-95 | 280 | 95 | 2900 | 94 |
| 200MS-63 | 280 | 63 | 2900 | 59.3 |
| 200MS-42 | 280 | 42 | 2900 | 37.7 |
| 250MS-65 | 485 | 65 | 1450 | 108.7 |
| 250MS-39 | 485 | 39 | 1450 | 62.1 |
| 250MS-24 | 485 | 24 | 1450 | 36.9 |
| 250MS-14 | 485 | 14 | 1450 | 21.7 |
| 300MS-90 | 790 | 90 | 1450 | 249.8 |
| 300MS-58 | 790 | 58 | 1450 | 148.5 |
| 300MS-32 | 790 | 32 | 1450 | 79 |
| 300MS-19 | 790 | 19 | 1450 | 46.9 |
| 300MS-12 | 790 | 12 | 1450 | 31.1 |
| 350MS-125 | 1260 | 125 | 1450 | 531 |
| 350MS-75 | 1260 | 75 | 1450 | 304 |
| 350MS-44 | 1260 | 44 | 1450 | 177.6 |
| 350MS-26 | 1260 | 26 | 1450 | 101.5 |
| 350MS-16 | 1260 | 16 | 1450 | 63.8 |
| 500MS-13 | 2020 | 13 | 980 | 86.2 |
| 500MS-35 | 2020 | 35 | 980 | 219 |
| 500MS-98 | 2020 | 98 | 980 | 678 |
| 600MS-22 | 3241 | 22 | 980 | 231.8 |
| 600MS-75 | 3060 | 75 | 980 | 694.4 |
| 800MS-32 | 5500 | 32 | 730 | 538.5 |
| 800MS-47 | 5500 | 47 | 730 | 782.2 |
Who we are?
- 20 years experience of manufacture with 5 years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
