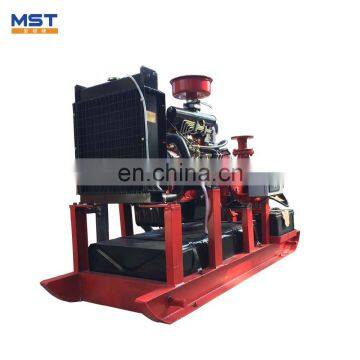

Diesel Fire Fighting Pumps photo-7
US$ 500 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Milestone
Place of Origin:
Hebei, China
Model Number:
Diesel water pump
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao Shanghai or as customer required
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Milestone
Place of Origin Hebei, China
Model Number Diesel water pump
Application Sewage
Fuel Diesel
Power Electric
Usage Water
Theory Centrifugal Pump
Standard or Nonstandard Standard
Structure Single-stage Pump
Pressure High Pressure

Diesel fire fighting pumps

Diesel fire fighting pumps



Pump specifications

Diesel fire fighting pumps



Model: MIS
Inlet/outlet: 50~200mm(2inch~8inch)
Pump connection: Coupling
Flow: 6.3~400m³/h
Head: 5~125m
Rated speed: 2900rpm and 1450rpm
Pump type: Horizontal centrifugal pump
Shaft seal: Gland packing and mechanical seal
Impeller type: Closed
Pump color: As customer required
Material: Cast iron or as customer required



Pump Features

Diesel fire fighting pumps

1.Choice of piston ring style labyrinth

2.Fully interchangeeable with the common brand reducing inventory hold requirements

3.A full range of mechanical seal adaptations available upon request

4.Oil lubrications or packed grease

5.Painted to customer specifications upon request



Diesel fire fighting pumps



Performance curves

Diesel fire fighting pumps



Diesel engine

Diesel fire fighting pumps

Drive Variation Cummins,Deutz,Ricardo,Perkins or Chinese Diesel
Power Range 50HP~1066HP
Diesel driving Water cooled,air cooled
Cylinder 2 or 4
Cylinder diameter 95,96,100,102,105,110,113
Stroke 115,125,130,135
Displacement 3.26~9.49L
Engine Oil Capacity 13L,17L
Fuel consumption 218,224,231,251.6,258.4
N.weight 650kgs~2200kgs



Diesel fire fighting pumps



Dimension drawing



Diesel fire fighting pumps



Pump onsite

 Diesel fire fighting pumps

Our company



Diesel fire fighting pumpsDiesel fire fighting pumps



Milestone on Exhibitions



Diesel fire fighting pumpsDiesel fire fighting pumps
