S Series Agriculture Irrigation Water Pump
S single stage double suction centrifugal pumps are late-model energy-saving horizontally split pumps newly developed by us on the base of the old style double suction pumps at home and abroad.T hey are used to handle clean water or other liquids similar to waterin physical and chemical dium temperature not exceeding 80°C.This series of pumps are applicable for water supply for factories,mining,urban water supply and drainage,power stations, farmland irrigation and drainage,and soon.Shaft sealing is soft packing sealing.

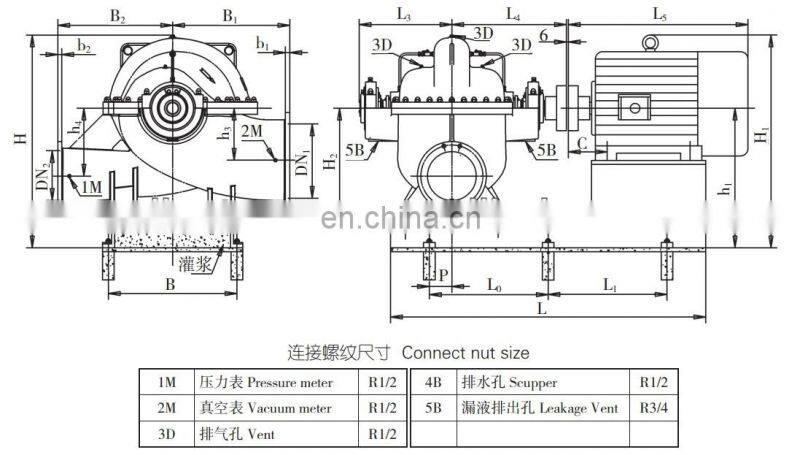

Construction drawing of S slurry pump
Performance Curves
Performance Table
Inlet/Outlet | Capacity | Head | Speed | Shaft power(kw) | |
150S-78 | 150/150 | 160 | 78 | 2900 | 45 |
150S-50 | 150/150 | 160 | 50 | 2900 | 27.3 |
200S-95 | 200/200 | 280 | 95 | 2900 | 94 |
200S-63 | 200/200 | 280 | 63 | 2900 | 59.3 |
200S-42 | 200/200 | 280 | 42 | 2900 | 37.7 |
250S-65 | 250/250 | 485 | 65 | 1450 | 108.7 |
250S-39 | 250/250 | 485 | 39 | 1450 | 62.1 |
250S-24 | 250/250 | 485 | 24 | 1450 | 36.9 |
250S-14 | 250/250 | 485 | 14 | 1450 | 21.7 |
300S-90 | 300/300 | 790 | 90 | 1450 | 249.8 |
300S-58 | 300/300 | 790 | 58 | 1450 | 148.5 |
300S-32 | 300/300 | 790 | 32 | 1450 | 79 |
300S-19 | 300/300 | 790 | 19 | 1450 | 46.9 |
300S-12 | 300/300 | 790 | 12 | 1450 | 31.1 |
350S-125 | 350/350 | 1260 | 125 | 1450 | 531 |
350S-75 | 350/350 | 1260 | 75 | 1450 | 304 |
350S-44 | 350/350 | 1260 | 44 | 1450 | 177.6 |
350S-26 | 350/350 | 1260 | 26 | 1450 | 101.5 |
350S-16 | 350/350 | 1260 | 16 | 1450 | 63.8 |
500S-13 | 500/500 | 2020 | 13 | 980 | 86.2 |
500S-35 | 500/500 | 2020 | 35 | 980 | 219 |
500S-98 | 500/500 | 2020 | 98 | 980 | 678 |
600S22 | 600/600 | 3241 | 22 | 980 | 231.8 |
600S75 | 600/600 | 3060 | 75 | 980 | 694.4 |
800S32 | 800/800 | 5500 | 32 | 730 | 538.5 |
800S47 | 800/800 | 5500 | 47 | 730 | 782.2 |

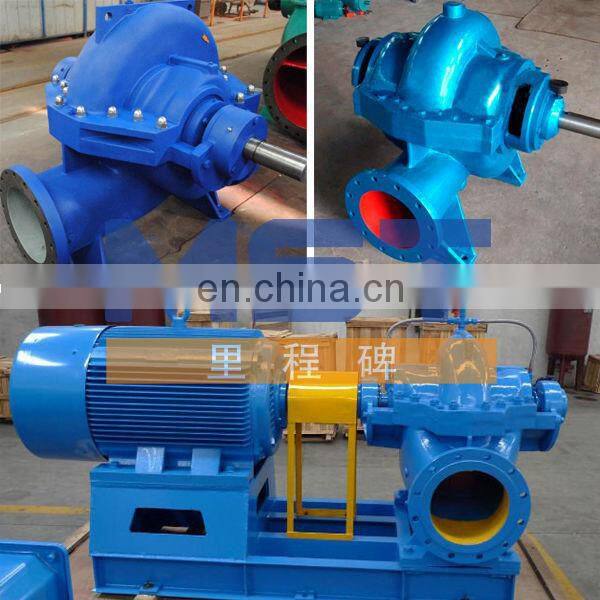

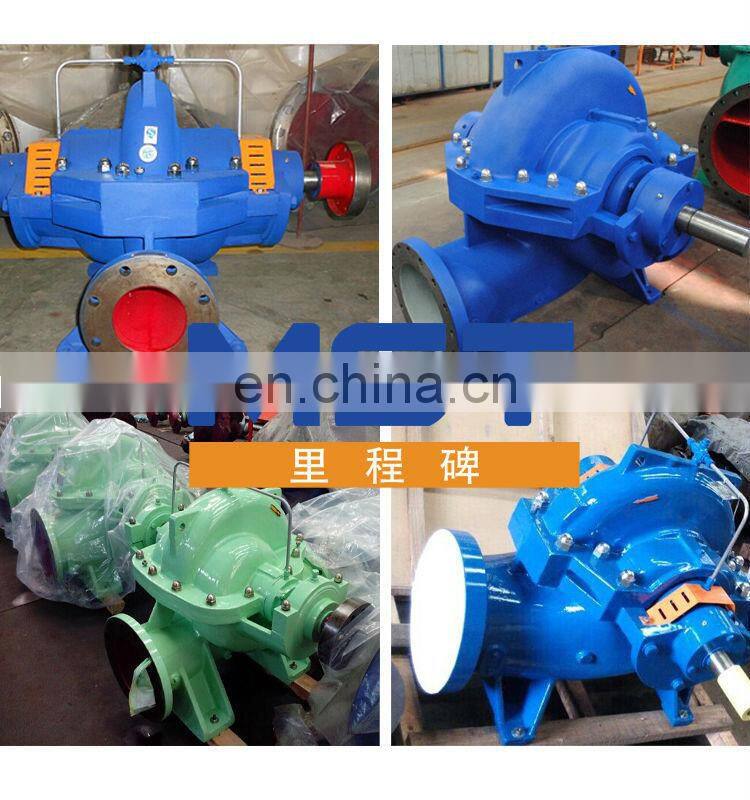

Pump Image
