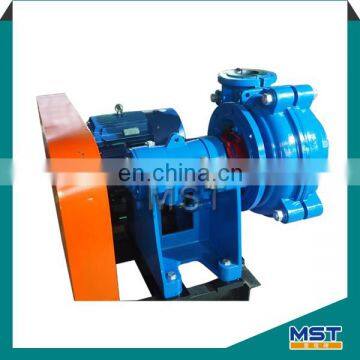

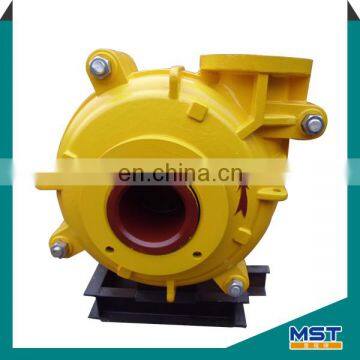

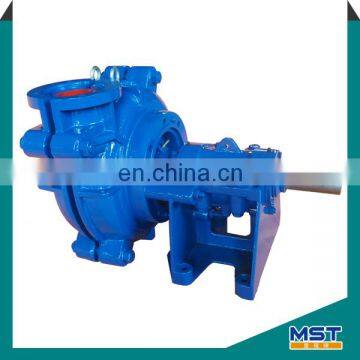

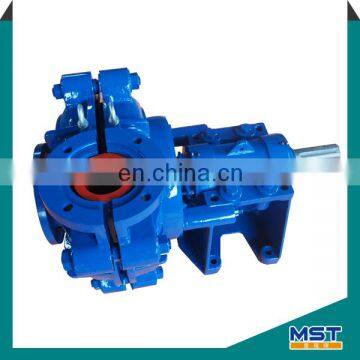

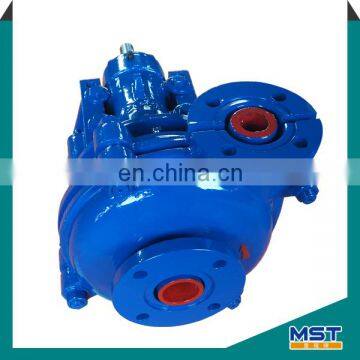

Spot Supply High Concentration Honrizontal Impurity Pump
Features
- Choice of piston ring style labyrinth or other new style of water proof
- Fully interchangeable with the common brand reducing inventory hold requirements
- A full range of mechanical seal adaptations available upon request
- Oil lubrication or packed grease
- Painted tn customer specifications upon request
A complete range of build specifications
- Rubber lined with rubber impeller
- Rubber lined with metal impeller
- All metal lined using white iron chrome alloys
- Urethane lined with optional urethane impeller for special applications
Clear water performance
Pump Parts Material
Rubber Pump |
Metal Pump |
||||
No. |
Part Description |
Material Specification |
No. |
Part Description |
Material Specification |
1 |
Base |
Cast Iron |
1 |
Base |
Cast Iron |
2 |
Shaft |
4140 High Tensile Steel* |
2 |
Shaft 4140 |
High Tensile Steel* |
3 |
Bearing Assembly |
Timken (Cast Iron Body) |
3 |
Bearing Assembly |
Timken (Cast Iron Body) |
4 |
Shaft Sleeve |
420 Stainless Steel |
4 |
Shaft Sleeve |
420 Stainless Steel |
5 |
Pump Casing |
Cast Iron |
5 |
Pump Casing |
Cast Iron |
6 |
Frame Plate |
Liner Insert Rubber |
6 |
Frame Plate |
Liner 27% Chrome White Iron |
7 |
Cover Plate |
Liner Rubber |
7 |
Volute Liner |
27% Chrome White Iron |
8 |
Impeller |
Rubber Coated High Tensile Steel |
8 |
Impeller 27% |
Chrome White Iron |
9 |
Throat Bush |
Rubber |
9 |
Throat Bush |
27% Chrome White Iron |
10 |
Cover Plate |
Cast Iron |
10 |
Joint Rings |
Rubber |
11 |
Stuffing Box |
Cast Iron |
11 |
Cover Plate |
Cast Iron |
12 |
Expeller |
27% Chrome White Iron |
12 |
Stuffing Box |
Cast Iron |
13 |
Expeller |
Ring Natural Rubber |
13 |
Expeller |
27% Chrome White Iron |
14 |
Bolts |
Zinc Plated Steel |
14 |
Expeller Ring |
Natural Rubber |
15 |
O-rings |
Nitrile Rubber |
15 |
Bolts |
Zinc Plated Steel |
16 |
Seals |
Rubber |
16 |
O-rings |
Nitrile Rubber |
17 |
Seals |
Rubber |
|||
Seal Arrangement
Applications
