Heavy Duty Electric Gravel Dredge Pump
US$ 827 - 2,996
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Milestone
Place of Origin:
Hebei, China
Model Number:
MST-WN
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dredgers for Sale Low Price Sand DredgerUS$ 755 - 2,996MOQ: 1 Set -
Slurry Pump Bearing AssemblyUS$ 755 - 2,996MOQ: 1 Set
-
Acid Abrasive Centrifugal Rubber Sludge PumpsUS$ 1,290 - 2,996MOQ: 1 Set
-
Gravel Sand Suction Bilge PumpUS$ 755 - 2,996MOQ: 1 Set
-
Electric Motor 3 Phase Submersible PumpUS$ 755 - 2,996MOQ: 1 Set
Brand Name
Milestone
Place of Origin
Hebei, China
Model Number
MST-WN
Application
Sewage
Power
Electric
Theory
Centrifugal Pump
Standard or Nonstandard
Standard
Structure
Single-stage Pump
Pressure
High Pressure

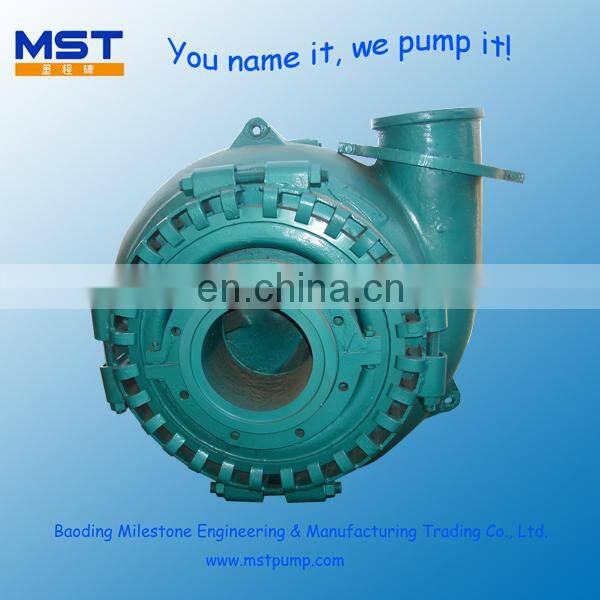

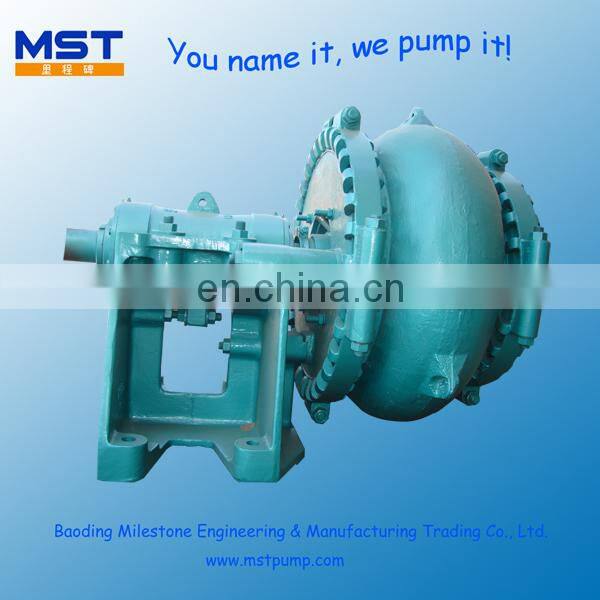

Heavy duty electric gravel dredge pump
The MST-WN Heavy duty electric gravel dredge pump is single-stage single-suction horizontal centrifugal pump, connected by belt. It is light, good anti-cavitation performance and easy to install.It is applied to conveying of sands, mud and slurry with bigger solid partices.

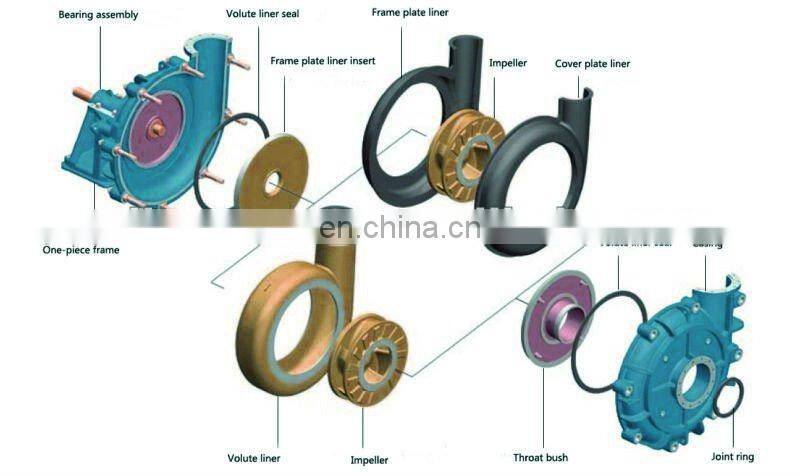

Heavy duty electric gravel dredge pump is consisted by casing, seal devices, bearing devices and frame. It is lubricated by grease. The materials of working parts are wear-resistance alloy or alloy steel, the hardness is no less than 58HRC.
Features
- Choice of piston ring style labyrinth or other new style of water proof
- Fully interchangeable with the common brand reducing inventory hold requirements
- A full range of mechanical seal adaptations available upon request
- Oil lubrication or packed grease
- Painted to customer specifications upon request
A complete range of build specifications
- Rubber lined with rubber impeller
- Rubber lined with metal impeller
- All metal lined using white iron chrome alloys
- Urethane lined with optional urethane impeller for special applications
Clean Water Performance of MST-WN
| Model | Capacity (m3/h) | Head (m) | Speed (r/min) | Efficiency (%) | Inlet Dia.(mm) | Outlet Dia. (mm) | NPSHr (m) |
| 100WN | 180~250 | 25~45 | 1000~1400 | 50~58 | 150 | 100 | <3.5 |
| 150WN | 500~700 | 40~65 | 800~980 | 58~60 | 200 | 150 | <4 |
| 200WN | 750~1000 | 40~65 | 700~850 | 70~72 | 250 | 200 | <4.5 |
| 250WN | 1100~1300 | 40~65 | 500~650 | 70~74 | 350 | 250 | <4.5 |
| 300WN | 1800~2200 | 40~65 | 400~550 | 74~78 | 450 | 300 | <4 |
| 350WN | 2600~3000 | 40~65 | 400~550 | 74~78 | 450 | 350 | <4 |
| 400WND | 2800~3200 | 20~40 | 400~550 | 74~78 | 450 | 400 | <4.5 |
| 450WN | 3200~3800 | 40~67 | 350~500 | 76~80 | 600 | 450 | <4.5 |
| 500WN | 4500~5500 | 40~65 | 350~450 | 78~80 | 650 | 500 | <4.8 |
| 650WNG | 8000~11000 | 60~90 | 325~390 | 81~85 | 700 | 650 | <6 |

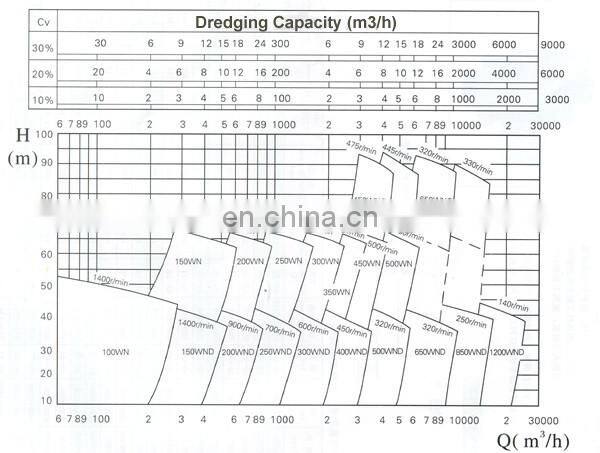

Curves of MST-WN series
