Home > Products > Slurry Pump > Cr15Mo3 Strong Abrasion Resistant Metal Lined Slurry Pump
Cr15Mo3 Strong Abrasion Resistant Metal Lined Slurry Pump
- Tianjin/ Qingdao/ Shanghai/Guangzhou/As customer required
- T/T Credit Card
You May Like
Product Details
| Brand Name | Milestone | Place of Origin | Hebei, China | |
| Model Number | MAH | Application | Sewage | |
| Power | Electric | |||
| Usage | Water | Theory | Centrifugal Pump | |
| Standard or Nonstandard | Standard | Structure | Single-stage Pump | |
| Pressure | High Pressure |
Product Description
Cr15Mo3 Strong Abrasion Resistant Metal Lined Slurry Pump
Features
- Choice of piston ring style labyrinth or other new style of water proof
- Fully interchangeable with the common brand reducing inventory hold requirements
- A full range of mechanical seal adaptations available upon request
- Oil lubrication or packed grease
- Painted tn customer specifications upon request
A complete range of build specifications
- Rubber lined with rubber impeller
- Rubber lined with metal impeller
- All metal lined using white iron chrome alloys
- Urethane lined with optional urethane impeller for special applications
Clear water performance
Performance Curves
Pump Parts Material
Rubber Pump | Metal Pump | ||||
No. | Part Description | Material Specification | No. | Part Description | Material Specification |
1 | Base | Cast Iron | 1 | Base | Cast Iron |
2 | Shaft | 4140 High Tensile Steel* | 2 | Shaft 4140 | High Tensile Steel* |
3 | Bearing Assembly | Timken (Cast Iron Body) | 3 | Bearing Assembly | Timken (Cast Iron Body) |
4 | Shaft Sleeve | 420 Stainless Steel | 4 | Shaft Sleeve | 420 Stainless Steel |
5 | Pump Casing | Cast Iron | 5 | Pump Casing | Cast Iron |
6 | Frame Plate | Liner Insert Rubber | 6 | Frame Plate | Liner 27% Chrome White Iron |
7 | Cover Plate | Liner Rubber | 7 | Volute Liner | 27% Chrome White Iron |
8 | Impeller | Rubber Coated High Tensile Steel | 8 | Impeller 27% | Chrome White Iron |
9 | Throat Bush | Rubber | 9 | Throat Bush | 27% Chrome White Iron |
10 | Cover Plate | Cast Iron | 10 | Joint Rings | Rubber |
11 | Stuffing Box | Cast Iron | 11 | Cover Plate | Cast Iron |
12 | Expeller | 27% Chrome White Iron | 12 | Stuffing Box | Cast Iron |
13 | Expeller | Ring Natural Rubber | 13 | Expeller 27% | Chrome White Iron |
14 | Bolts | Zinc Plated Steel | 14 | Expeller Ring | Natural Rubber |
15 | O-rings | Nitrile Rubber | 15 | Bolts | Zinc Plated Steel |
16 | Seals | Rubber | 16 | O-rings | Nitrile Rubber |
17 | Seals | Rubber | |||
Pump Parts
Seal Arrangement

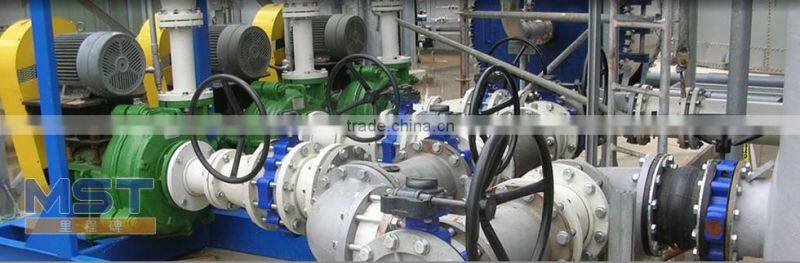

Applications
Who we are
20years experience of manufacture with 5years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
MST at Expo
Certification
Contact Us
