Shijiazhuang Standard Horizontal Slurry Pump

FOB Price

US$ 755 - 2,996 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Shijiazhuang Standard Horizontal Slurry Pump

Product Description

Features

Choice of piston ring style labyrinth or other new style of water proof
Fully interchangeable with the common brand reducing inventory hold requirements
A full range of mechanical seal adaptations available upon request
Oil lubrication or packed grease
Painted tn customer specifications upon request

A complete range of build specifications

Clear water performance

MAH Clean Water Performance
Type	Allowable Mating Max.Power	Flow	Head	Efficiency	NPSH	Interrupted by the maximum particle
Type	kw	m3/h	m	%	m	mm
1.5x1B-MAH	15	3.6-21	5-69	40	2-5.5	16
2x1.5B-MAH	15	32-72	6-58	45	3.5-8	19
3x2C-MAH	30	39-86	12-64	55	4-6	25
4x3D-MAH	60	86-198	9-52	71	4-6	28
6x4D-MAH	60	162-360	12-56	68	5-8	44
8x6E-MAH	120	360-830	10-61	72	2-9	63
10x8ST-MAH	260	612-1368	11-61	71	4-10	76

Performance Curves

Pump Parts Material

Rubber Pump			Metal Pump
No.	Part Description	Material Specification	No.	Part Description	Material Specification
1	Base	Cast Iron	1	Base	Cast Iron
2	Shaft	4140 High Tensile Steel*	2	Shaft 4140	High Tensile Steel*
3	Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
4	Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
5	Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
6	Frame Plate	Liner Insert Rubber	6	Frame Plate	Liner 27% Chrome White Iron
7	Cover Plate	Liner Rubber	7	Volute Liner	27% Chrome White Iron
8	Impeller	Rubber Coated High Tensile Steel	8	Impeller 27%	Chrome White Iron
9	Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
10	Cover Plate	Cast Iron	10	Joint Rings	Rubber
11	Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
12	Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
13	Expeller	Ring Natural Rubber	13	Expeller 27%	Chrome White Iron
14	Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
15	O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
16	Seals	Rubber	16	O-rings	Nitrile Rubber
			17	Seals	Rubber

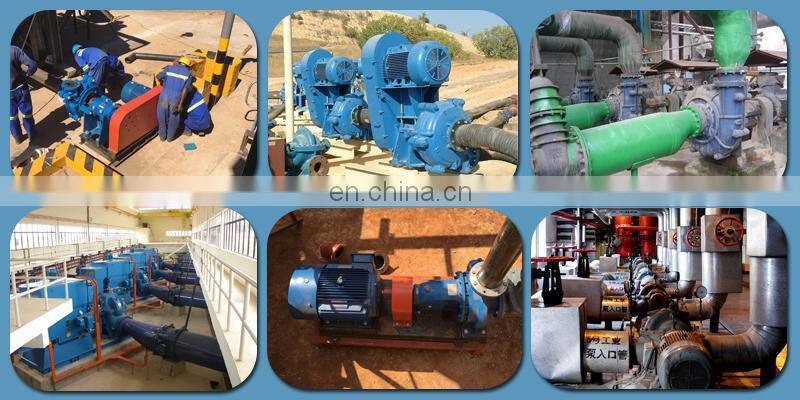

Applications

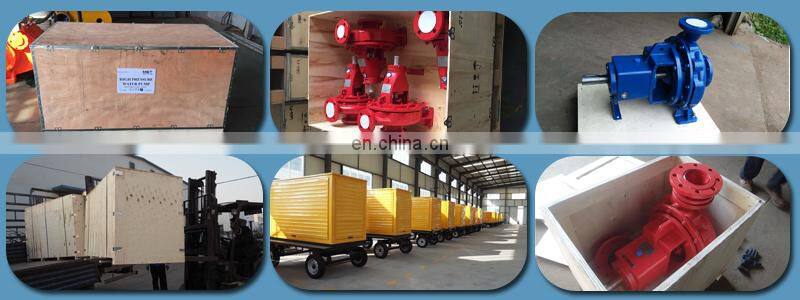

Packaging & Shipping
