Home > Products > Slurry Pump > Centrifugal pump volute liner
Centrifugal pump volute liner
- TIANJIN or as customer required
- T/T Credit Card
You May Like
Product Details
| Brand Name | Milestone | Place of Origin | Hebei, China | |
| Model Number | MAH | |||
| Power | Electric | |||
| Usage | Water | Theory | Centrifugal Pump | |
| Standard or Nonstandard | Standard | Structure | Single-stage Pump | |
| Pressure | High Pressure |
Product Description
Centrifugal pump volute liner
The MAH slurry pump series are robust state of the art slurry pumps that feature oil
or grease lubrication bearing assemblies and complete interchangeable with other major
brands. The AH can be supplied in either a packed gland version using expeller technology,
or mechanical seal system specifically designed for heavy duty slurry applications.
Features
- Choice of piston ring style labyrinth or other new style of water proof
- Fully interchangeable with the common brand reducing inventory hold requirements
- A full range of mechanical seal adaptations available upon request
- Oil lubrication or packed grease
- Painted to customer specifications upon request
A complete range of build specifications
- Rubber lined with rubber impeller
- Rubber lined with metal impeller
- All metal lined using white iron chrome alloys
- Urethane lined with optional urethane impeller for special applications
Performance Curves
Spare Parts

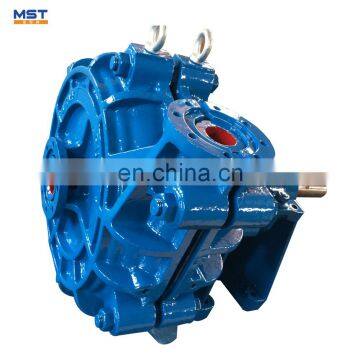

Pump Image
Application
Selection Chart
Max. power | Capacity | Head | Speed | Max.Eff | NPSH | Impeller Dia. | Max.particle size | |
(kw) | (m³/h) | (m) | (r/min) | (%) | (m) | (mm) | (mm) | |
MAH1.5-1 | 15 | 12-28 | 6-65 | 1200-3800 | 40 | 2-4 | 150 | 14 |
MAH2-1.5 | 15 | 32-72 | 6-58 | 1200-3200 | 45 | 3.5-8 | 185 | 19 |
MAH3-2 | 30 | 39-86 | 12-64 | 1300-2700 | 55 | 4-6 | 215 | 25 |
MAH4-3 | 60 | 86-198 | 9-52 | 1000-2200 | 71 | 4-5 | 245 | 28 |
MAH6-4 | 120 | 162-360 | 12-56 | 800-1500 | 68 | 5-8 | 365 | 44 |
MAH8-6 | 120 | 360-830 | 10-61 | 500-1140 | 72 | 2-9 | 510 | 63 |
MAH10-8 | 260 | 612-1368 | 11-61 | 400-850 | 71 | 4-10 | 685 | 76 |
MAH12-10 | 560 | 936-1980 | 7-68 | 400-750 | 82 | 1-5 | 760 | 86 |
MAH14-12 | 560 | 1260-2772 | 13-63 | 300-600 | 77 | 3-10 | 965 | 90 |
