7bar 5m3/min Kubota Diesel Engine Portable Screw Air Compressor LUY050-7 Air Compressor High Quality Low Price Air Compressor

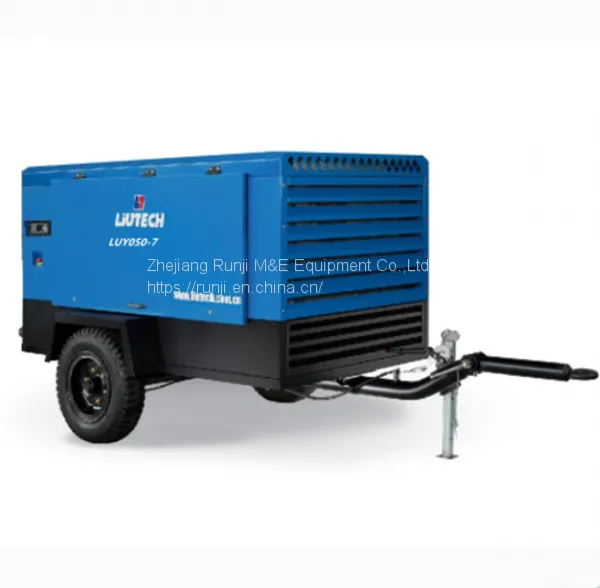

7bar 5m3/min Kubota Diesel Engine Portable Screw Air Compressor LUY050-7 Air Compressor High Quality Low Price Air Compressor photo-1
US$ 8923 - 20000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
LIUTECH
Place of Origin:
China
Model Number:
LUY050-7
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo port
Delivery Detail:
15 days
Brand Name LIUTECH
Place of Origin China
Model Number LUY050-7
Certification ISO9001 ISO14001 OHSAS18001 GC
Type Piston
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year except easily demaged parts
Weight 750kg
Dimension(L*W*H) 2960*1350*1420mm
Condition New
Mute No
Lubrication Style Lubricated
Power Source Diesel
Configuration Portable

Product Application

7bar 5m3/min Kubota diesel engine portable screw air compressor machine LUY050-7 air compressor high quality low price compressor


A screw air compressor uses a rotary-type positive-displacement mechanism. They are commonly used to replace piston compressors where large volumes of high-pressure air are needed, either for large industrial applications or to operate high-power air tools such as jackhammers and impact wrenches.

SPECIFICATIONS FOR LUY 050-7
Main performance parameters
Working Pressure
7 bar
Air Delivery
5 m3/min
Fuel Tank Capacity
67
Compressor Oil Capacity
8
Gas Outlet Valve - num* size
3*G3/4"
Engine
Engine Brand
kubota
Engine Model
V 1505 T
Power Output
33 kw
Max Rotation
2950 rpm
Engine Idling
1950 rpm
Dimentions:
Box Unit
Length
1940 mm
Width
1200 mm
Height
1240 mm
Weight
650 kg
Dimentions: Undercarriage
Length
2960 mm
Width
 1350 mm
Height
1420mm
Weight
750 kg

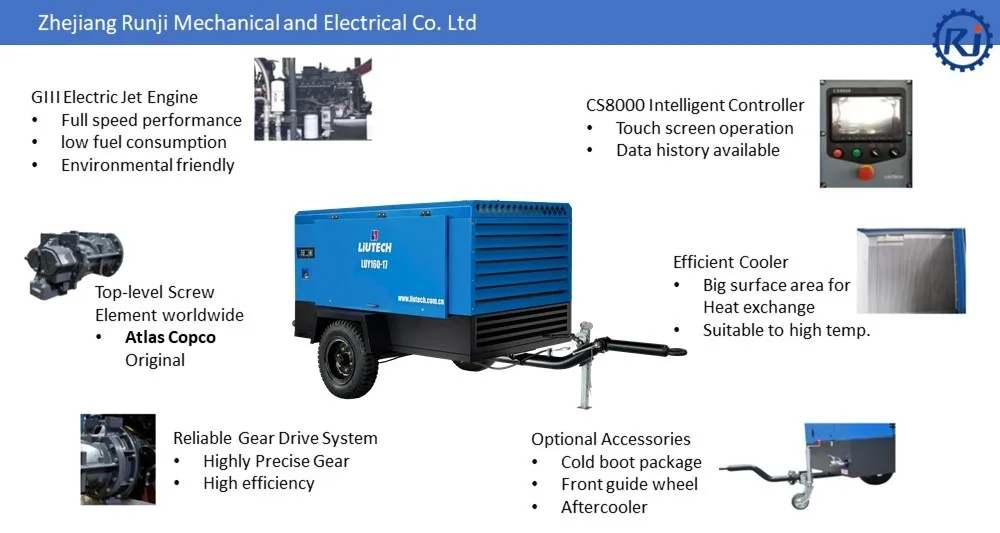

Main Features

1) GIII Electric Jet Engine: full speed performance, low fuel consumption, and environmentally friendly
2) Top-level Screw Element: Atlas Copco Original
3) Reliable Gear Drive System: highly precise gear, high efficiency
4) Optional Accessories: cold boot package, front guide wheel, aftercooler etc.
5) Efficient Cooler: a big surface area for heat exchange, work properly under high ambiance temperature
6) CS8000 Intelligent Controller: Touch Screen Operation, data history available

Detailed Images
Screw Element

Name: Screw Element
Brand: Atlas Copco
Original: Sweden
World-leading brand, at the cutting edge of air compressor technology, non-symmetrical screw element, high economic benefits, maximized service life.

Filtering System

Name: Air Filter

Brand: Atlas Copco

Original: Sweden
High dust holding capacity and low flow resistance design is applied. Thus, it cal filter tiny solid particles from the air.  In addition, the high quality of the air filters enables a long service life of every part of the system.
